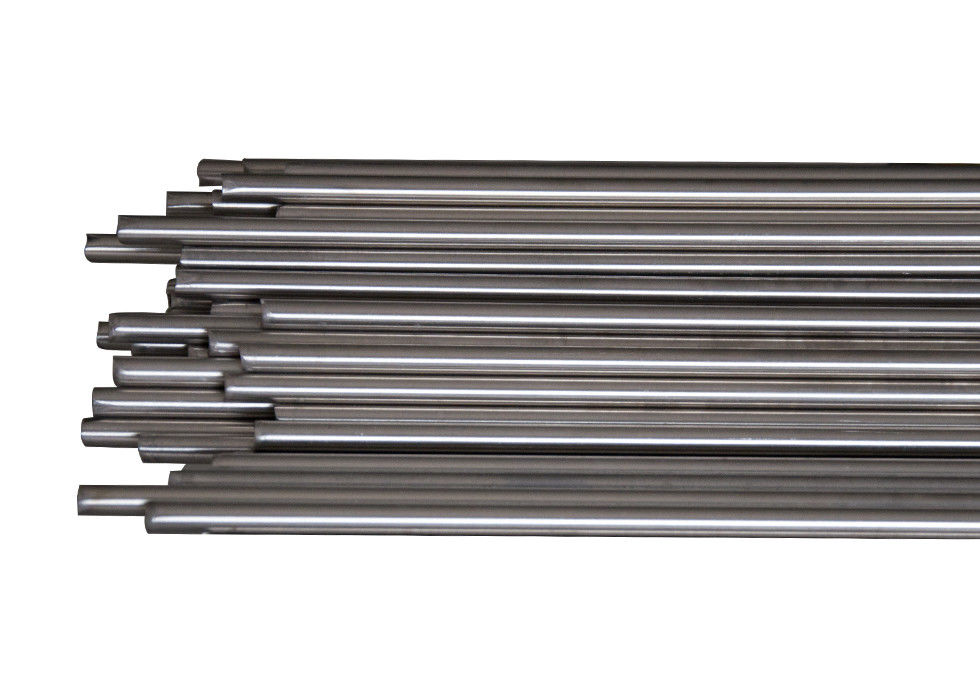

Large Image :  Low Expansion Alloy 4J36 Precision Alloy Invar36 / 36Н / FeNi36 Rod / Bar for Radio Industry

Product Details:
Place of Origin: China
Brand Name: Invar
Certification: ISO 9001 and RoHS
Model Number: 4J36 / Invar / 36Н / FeNi36
Payment & Shipping Terms:
Minimum Order Quantity: 100 KG
Price: Negotation
Packaging Details: Waterproof paper, Carton and Wooden Case
Delivery Time: 25~30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 30000KG per month

Low Expansion Alloy 4J36 Precision Alloy Invar36 / 36Н / FeNi36 Rod / Bar for Radio Industry

Description
Shape: Foil, Stirp, Wire, Sheet, Bar Condition: Soft, Hard, Half Hard
Standard: YB/T5241-2005 / ГОСТ 14080-78 Material: FeNi36
Diameter: 1.0~50.0 Mm
High Light:

soft magnetic alloy

,

kovar alloy

Low Expansion Alloy 4J36 Precision Alloy Invar 36Н / Fe-Ni36 Rod for Radio Industry





Description:



Invar 36, also known as FeNi36, is iron-nickel alloys have low coefficients of expansion over only a rather narrow range of temperature. It has a low coefficient of expansion from cryogenic temperatures to about 260℃. In the dry air at home temperature, invar 36 has good resistance to corrosion. But in moist air, it may go corrosion.

Invar 36 is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200℃, aperture mask, unit frameworks working below -200℃ and so on.



Application: Require dimensionally stable variety of instruments, instrument parts; Bimetallic passive layer



Feature: 4J36 is a typical low expansion alloy; Long-term use by the aviation factory, stable performance. Mainly for the manufacture in the temperature range approximately constant element sizes



Chemical composition(%)



Grade

C

Si

Mn

P

S

Ni

Fe

4J36

≤0.05

≤ 0.3

0.2~0.6

≤0.02

≤0.02

35~37

Bal.



Physical properties

  • Density (g/cm3): 8.1
  • Elastic Modulus, E: 144 GPa
  • Mean Coefficient of Thermal Expansion (10-6/℃): 7.8 (20~400℃); 8.9 (20~450℃)
  • Curie point (℃): 230
  • Electrical resistivity (μΩ*cm): 78 (20℃)
  • Specific heat (J/kg*℃): 515
  • Thermal conductivity ( W/m. ℃): 11



Mechanical properties





Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation, %

Hardness, HV

4J36

As annealed

268

450

35

140









Specifications

Grade

4J36- Rod

Diameter

1.0mm~50.0mm

Condition

Soft/ Hard; Bright/ Oxidized
