Product Details:
|
| Material: | Pt-Rh | Surface: | Bright |
|---|---|---|---|
| Diameter: | 0.1mm-5.0mm | Grade: | I/II |
| Item: | IEC First Class Platinum Wire 0.25 Mm Platinum 90/Rhodium10 Dia 0.25mm For 2600 Degrees Thermocouple | ||
| High Light: | high temperature thermocouple wire,thermocouple lead wire |
||

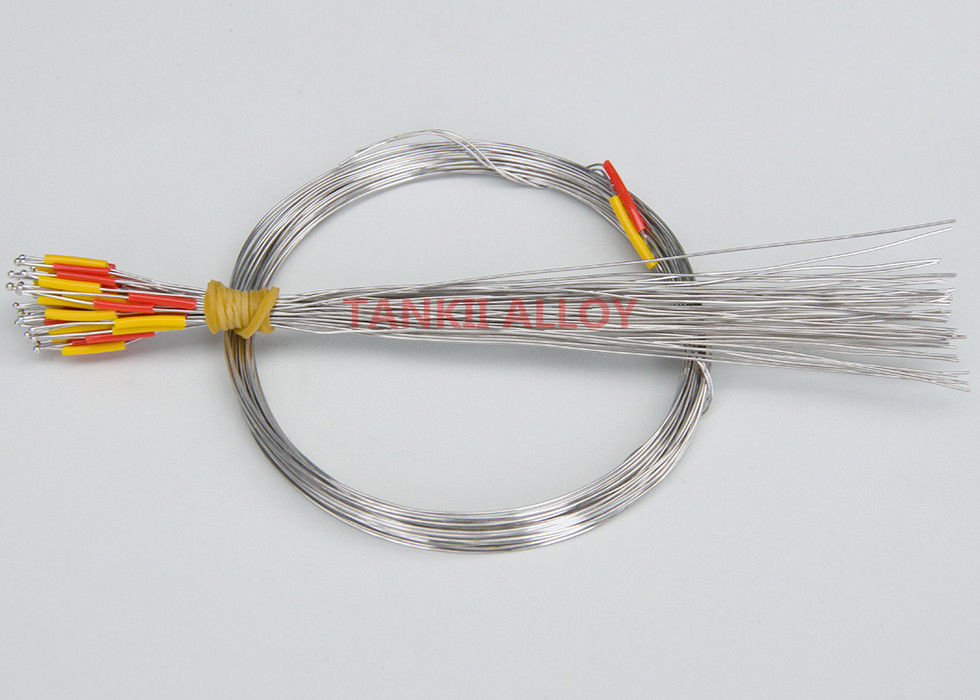

IEC First Class Platinum Wire 0.25 mm Platinum 90/Rhodium10 Dia 0.25mm For 2600 degrees Thermocouple
Quick Description
What is thermocouple wire?
Thermocouple wire allows temperatures to be measured electronically.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
Please contact me if there is inquiry on thermocouple wire or cable.
Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.
Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples
Platinum rhodium thermocouple(S/B/R TYPE)
Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Characteristics:
●Excellent thermoelectricity, excellent linear relationship between thermoelectrical potential and the temperature.
●Excellent thermoelectrical stability, high accuracy.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
