Product Details:
|
| Surface: | Bright Or Oxidated | Craft: | Cold Rolled |
|---|---|---|---|
| Characteristics: | High Resistivity, Good Oxidation Resistance | The Highest Use Temperature: | 1200c |
| Resisivity: | 1.09 | Density: | 8.4 |
| Sample: | Free | Shape: | Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
| Type: | Ni80cr20,Ni80,Alloy A,Resistohm 80,Cronix 80 | Trade Term: | FOB, EXW, CIF |
| High Light: | finned heater elements,oven heating element |
||

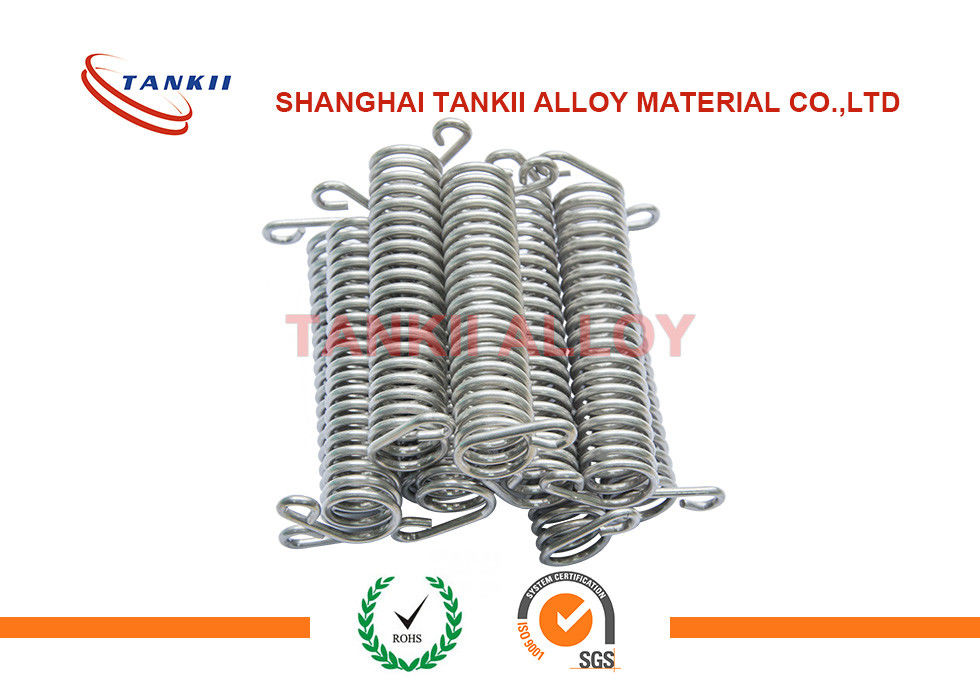

Ni80 Nickel Alloy for High Temperature Resistance Material Auto Parts Resistor Spring
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni80Cr20W | Wire | D=0.03mm~8mm | ||
| Ni80Cr20R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| Ni80Cr20S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni80Cr20F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni80Cr20B | Bar | Dia=8~100mm | L=50~1000 | |
Product Description
1. ODM&OEM service are all welcomed
2. Practicable Software: Solidworks,Pro/Engineer,Auto CAD,PDF,JPG
3. Small orders accept
4. Reasonable and competitive price according to your drawings
Packing & Delivery
Packing Details : Inner plastic bag,outside carton box,last is the pallet,all are based on the customers' requirments
Delivery Details : 10-30 days after you confirm the samples
Payment terms: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us.
