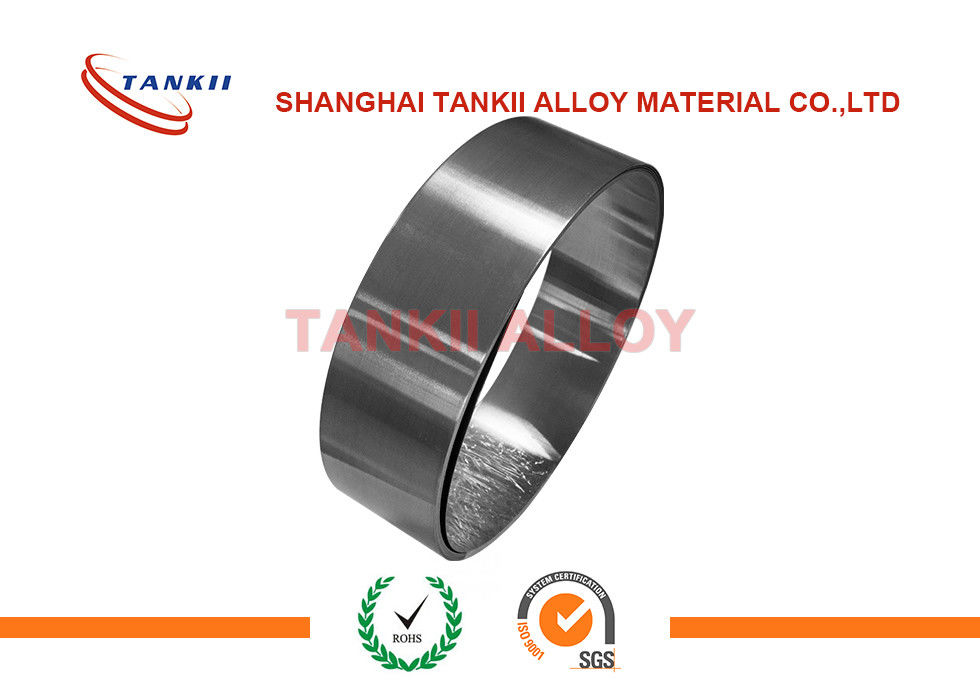

0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces

0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces
0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces 0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces 0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces 0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces

Large Image :  0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 0Cr13Al4
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton, Wooden case with good quality plastic film according to custom's requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300+TON+MONTH

0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces

Description
Density: 7.1 Melting Point: 1450
Product Type: Foil, Strip, Tape Appearance: Bright, Shiny
Insulation: Bare Application: Resistors
High Light:

electrical heating wire

,

high temperature wire

FeCrAl Alloy Foil 0Cr13Al4 Etching Resistor Using Foil/ Strip/ Tape



The superior high temperature oxidation resistance of FeCrAl alloys relies on the formation of a dense and continuous protective aluminium oxide layer on the alloy surface when exposed to high temperatures. Consequently, the aluminium content, i.e. the aluminium concentration at the alloy–oxide layer interface, must exceed a critical level in order to form a protective alumina layer. In the present study the oxidation behaviour of six different FeCrAl alloys with Al concentrations in the range of 1.2–5.0 wt% have been characterised after oxidation at 900 °C for 72 h with respect to oxide layer surface morphology, thickness and composition using scanning electron microscopy, energy dispersive X‐ray spectroscopy and Auger electron spectroscopy. The results show that a minimum of 3.2 wt% Al in the FeCrAl alloy is necessary for the formation of a continuous alumina layer. For Al concentrations in the range of 2.0–3.0 wt% a three‐layered oxide layer is formed, i.e. an oxide layer consisting of an inner alumina‐based layer, an intermediate chromia‐based layer and an outer iron oxide‐based layer. In contrast, the 1.2 wt% Al FeCrAl alloy is not able to form a protective oxide layer inhibiting extensive oxidation.



Iron-Chromium-Aluminum alloy FeCrAl electric resistance heating element material has small temperature coefficient of resistivity and high operation temperature. It offers good stability at the elevated temperatures, particularly in air containing sulphur and sulphide. It offers maximum high operation temperature up to 1300C. Great oxidation and scaling resistance. High mechanical strength and good tolerability to stress and pressure levels at the elevated temperatures.

FeCrAl resistance heating alloy produces an adherent aluminum oxide layer also known as alumina. It resists the flow of current but offers good thermal conductivity. Hence it allows better flow of heat and prevents it to remain around the heating element to provide longer service life.

FeCrAl  electric resistance heating element Applications

Resistors, heavy relay switches, electric furnaces, warm plates, mica elements in irons, quartz tube heaters, heating coils in industrial furnaces, hair dryers, toaster ovens, infrared dryers, glass top heaters, tubular elements for dishwaters, suspended coils, shielding material in ceramic glass top heaters and kilns



Iron Rem %
Chromium 19 to 21 %
Carbon 0.10 %
Aluminum 4 to 5 %
Properties
Specific resistance at 20oC micro-ohm-cm 135
Coefficient of resistance x 10(-4) ohms/ohm/oC at 20oC to 1100oC 1
Linear coefficient of expansion 15 x 10 (-6) for temperature from 20oC to 1000oC
Highest service temperature 1200oC



Forms Produced

FeCrAl Wire FeCrAl Wire Mesh FeCrAl Heat Coil FeCrAl Sintered Felt FeCrAl Strip/Foil FeCrAl Rod/Bar


0.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces 00.03 * 100 0Cr13Al4 Resistance Heating Strip For Heavy Relay Switches / Electric Furnaces 1
