Powder Metallurgy FeCrAl Heating Wire with 1400°C Oxidation Resistant for Industrial Furnaces

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: APM

Payment & Shipping Terms

Minimum Order Quantity: 50KG

Price: negotiation

Packaging Details: Cardboard packaging+wooden box

Delivery Time: 10-30days

Payment Terms: T/T

Supply Ability: 500ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              APM Iron Chromium Aluminum heating wire, FeCrAl alloy industrial furnace wire, heating wire for industrial furnaces


Description

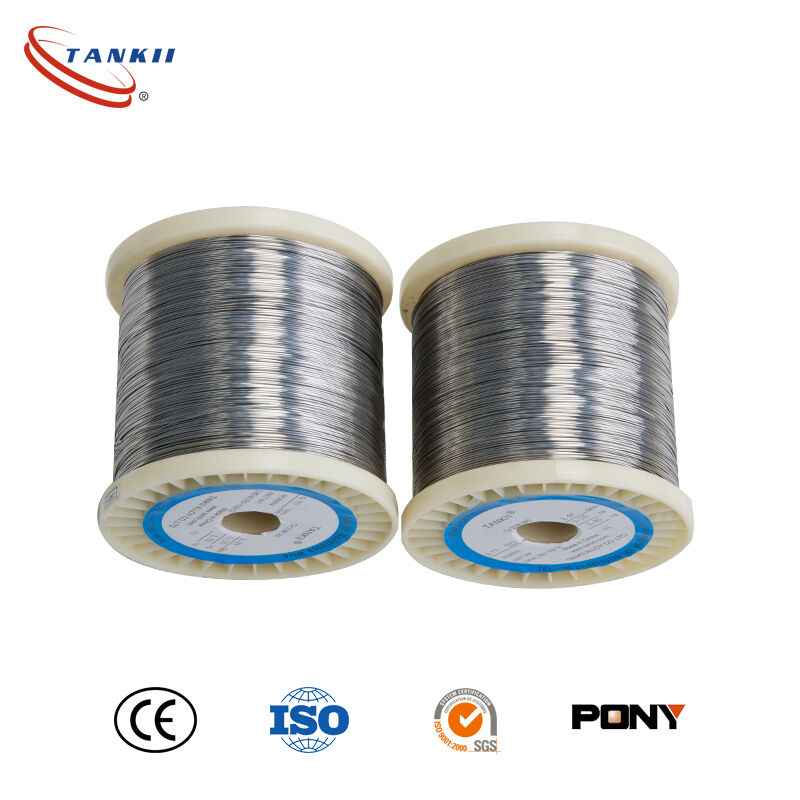

Powder Metallurgy FeCrAl Heating Wire with 1400°C Oxidation Resistant for Industrial Furnaces

Powder Metallurgy APM FeCrAl Heating Alloy Wire up to 1400°C

This product takes refined master alloy as raw material, uses powder metallurgy technology to manufacture alloy ingots, and is manufactured by special cold and hot processing and heat treatment process. The product has the advantages of strong oxidation resistance, good corrosion resistance at high temperature, small creep of electrothermal components, long service life at high temperature and small change of resistance. It is suitable for high temperature 1400 C, high power density, corrosive atmosphere, carbon atmosphere and other working environments. It can be used in ceramic kilns, high temperature heat treatment furnaces, laboratory furnaces, electronic industrial furnaces and diffusion furnaces.

main composition

	C	Si	Mn	Cr	Al	Fe
Min	-	-	-	20	5.5	Bal.
Max	0.04	0.5	0.4	22	6.0	Bal.

Main mechanical properties
Tensile Strength at Room Temperature: 650-750MPa
Elongation rate: 15-25%
Hardness: HV220-260
1000ºC Tensile Strength at 1000ºC Temperature 22-27MPa
1000ºC 6MPa High Temperature Durability at 1000 Temperature and 6MPa ≥100h

Main physical properties
Density 7.1g/cm3
Resistivity 1.53×10-6 Ω.m
Resistance Temperature Coefficient(Ct)
Melting point:1500ºC
Maximum Continuous Working Temperature 1400ºC

800ºC	1000ºC	1400ºC
1.03	1.04	1.05

Average linear expansion coefficient

20-800ºC	20-1000ºC	20-1400ºC
14	15	16

Fast life

	1400ºC	1370ºC
Average Fast Life (Hours)	178	>500
Sagging rate after rupture	8	11

APM FeCrAl Wire with Excellent Sag Resistance for Furnace Heating Elements
