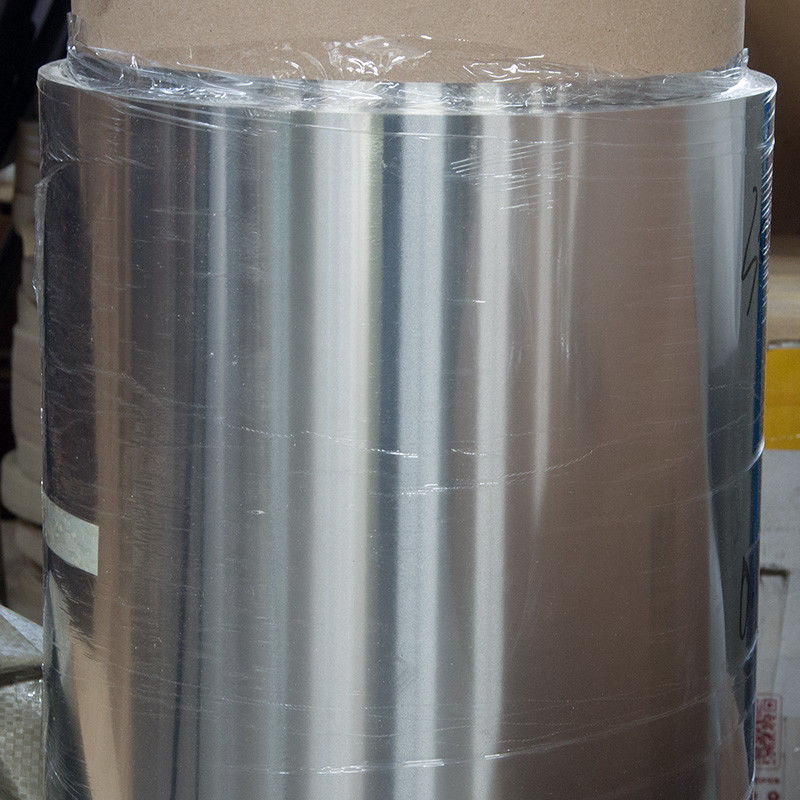

Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: usd15.1/kg

Packaging Details: In Coil

Delivery Time: 7 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Resistivity:
1.45
Density:
7.1
Thickness:
0.02~ 0.1mm
Package:
Wooden Box
Leading Time:
About 7 Dyas
Item:
Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates
Resistivity:
1.45
Density:
7.1
Thickness:
0.02~ 0.1mm
Package:
Wooden Box
Leading Time:
About 7 Dyas
Item:
Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates
Description
Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates


Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates

1. Description
FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
We also produce below grades:
Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
Kanthal A1, Kanthal, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF Kanthal AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, Kanthal APM
Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low  resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.05mm-10.0mm

6) Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

3. Details of tankii  strips

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4
(resisohm125)
0Cr25Al5

0Cr21Al6

0Cr23Al5
(resisohm135)
0Cr21Al4

0Cr21Al6Nb
(resisohm145)
0Cr27Al7Mo2

Main Chemical Composition
(%)

Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08

1.42
±0.06

1.42
±0.07

1.35
±0.07

1.23
±0.07

1.45
±0.07

1.53
±0.07

Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic


Typical application areas of air heating cassettes

  • Pre-heating of aluminium

  • Homogenising of aluminium

  • Heat treatment in the metallurgical industry

  • Drying of ore concentrates

  • Drying of materials in the wood processing industry

  • Roasting and drying in the food industry

  • Baking in large bakery ovens

  • Drying of chemicals

  • Drying and stoving of paints (stoving furnaces)

Anti Oxidation Fecral Alloy Foils 0cr25al5 / Resisohm145 Used For Metallic Honeycomb Substrates 0
