Product Details:
|
| Surface: | Bright Or Oxidated | Craft: | Cold Rolled |
|---|---|---|---|
| Characteristics: | High Resistivity, Good Oxidation Resistance | The Highest Use Temperature: | 300c |
| Resisivity: | 1.33 | Density: | 8.1g/cm3 |
| Sample: | Free | Shape: | Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
| Type: | Ni-Cr Wire, Chromel Alloy,Copper Nickel Alloy, Etc. | Trade Term: | FOB, EXW, CIF, CFR |
| High Light: | nichrome resistance wire,nickel alloys |
||

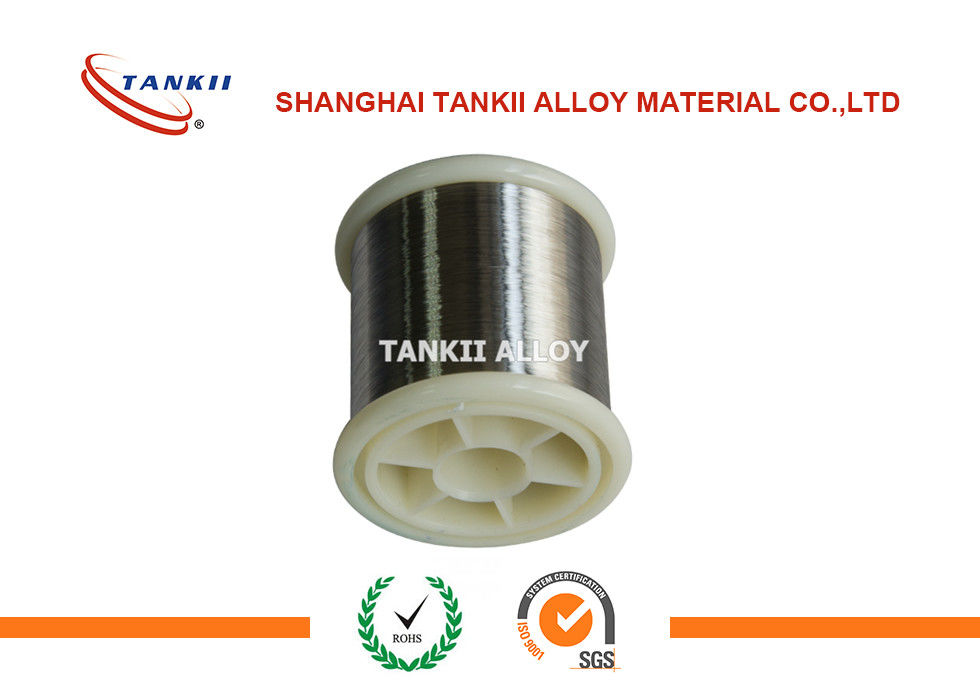

0.132mm Bright Silver Nicr Alloy Strip Karma Resistance For Heating Cable
1. Karma alloy
Karma alloy is made up of copper, nickel, Aluminum and Iron as the main components. The resistivity is 2~3 times higher than MENTONG. It has lower temperature coefficient of resistance(TCR), lower thermal EMF versus copper, good permanence of resistance for a long period of time and strong anti-oxidation. Its working temperature range is wider than MENTONG (-60~300ºC). It is suitable for making fine precision resistance elements and strain.
2. Karma size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
3.Karma Property
| name | code | Main Composition (%) |
Standard
|
|||
| Cr | Al | Fe | Ni | |||
| Karma | 6J22 | 19~21 | 2.5~3.2 | 2.0~3.0 | bal. | JB/T 5328 |
| Name | Code |
(20ºC) vity |
(20ºC) Of Resistance |
(0~100ºC) EMF vs. Copper |
Max.workin g |
(%) on |
(N/mm2) Tensile Strength |
Standard |
| Karma | 6J22 | 1.33±0.07 | ≤±20 | ≤2.5 | ≤300 | >7 | ≥780 | JB/T 5328 |
4. Distinctive features of Karma resistance wire
1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.
2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,
and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.
Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.
3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and
exhibits excellent stability over a period of many years.
4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.
Advantages: deformation ability, thermal stability,mechanical character, shockproof ability in thermal state and anti-oxidization.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
Packing detail:spool,coil,wooden case(as per client's requirement).
