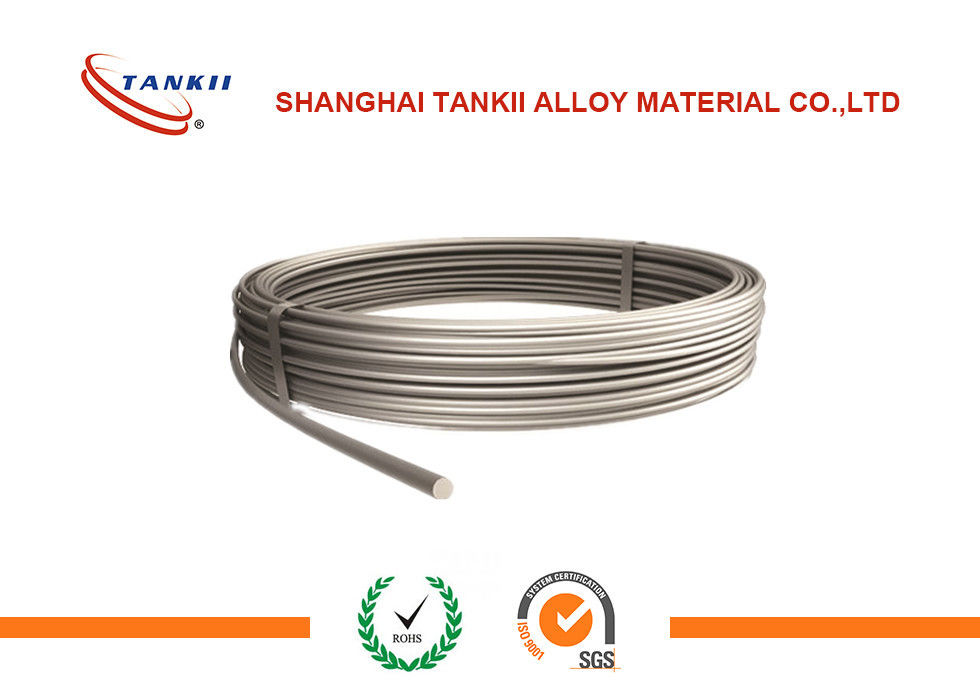

0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment

0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment
0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment 0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment 0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment 0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment

Large Image :  0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment

Product Details:
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: ISO9001:2008, ROHS
Model Number: 0Cr21Al4
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: To negotiate
Packaging Details: Spool, coil, caron, plywood case, according to clients´requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+Ton+Month

0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment

Description
Model Name: 0Cr21Al4, 0Cr25Al5, 0Cr23Al5, 0Cr19Al3..... Conductor: Solid
State: Soft, Solid, Half Hard Condition: Soft, Annealed
Surface: Metallic, Acid White Colour: Silver Grey
High Light:

nichrome resistance wire

,

nickel alloys

0Cr21Al4 FeCrAl Alloy Electric Wire/ Coil with Dia 5mm for Heating Equipment



Product Description:



With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc

brake system brake resistor, electric ceramic cooktop, industrial furnace.



Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements

Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.

The key properties:
1.The thickness of surface insulation resistance to oxidation layer: 5-15 μ m.
2. Insulation resistance: multimeter detection infinity.
3.The voltage-endurance of insulating single layer is greater than the alternating voltage 60 ν without breakdown.
4. The use of voltage: 6-380 ν.
5. Using temperature: Maximum1200 ºC
6. Service life: not less than 6000 hours.
7.Thermal shock performance: Electric heating element can withstand the cold and hot impact 600-6000 times without deformation.



Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic

0cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment 00cr21al4 Fecral Alloy Electric Wire / Coil Dia 5mm For Heating Equipment 1
