Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine

Name: Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: To negotiate

Packaging Details: Carton, Wooden case, with Plastic Film according to per client's requirements

Delivery Time: 7-15 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 100+TON+MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    soft magnetic alloy, kovar alloy


Standard:	ASTM B670, ASME SB670	Superiority:	Corrosion Resistance, Easy Processing
Material:	Nickel Chromium Iron	Application:	Acid Encironment, Steam Turbine, Extrusion Die
Alloy Or Not:	Is Alloy	Port:	Shanghai

Standard:	ASTM B670, ASME SB670
Superiority:	Corrosion Resistance, Easy Processing
Material:	Nickel Chromium Iron
Application:	Acid Encironment, Steam Turbine, Extrusion Die
Alloy Or Not:	Is Alloy
Port:	Shanghai

Description

Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine

Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine

Introduction

Inconel 718 is a Nickel-Chromium alloy being precipitation hardenable and having high creep-rupture strength at high temperatures to about 700°C (1290°F). It has higher strength thanInconel X-750 and better mechanical properties at lower temperatures than Nimonic 90 andInconel X-750.

Chemical Composition of Inconel 718

The compositional range for Inconel 718 is provided in the table below.

Fe	BAL
Nb+Ta	4.75 - 5.5 %
Mo	2.8 - 3.3 %
Ti	0.65 - 1.15 %
Al	0.2 - 0.8 %

Typical Properties of Inconel 718

Typical properties of Inconel 718 are covered in the following table.

Property	Metric	Imperial
Density	8.19 g/cm3	0.296 lb/in3
Melting point	1336 °C	2437 °F
Co-Efficient of Expansion	13.0 µm/m.°C (20-100 °C)	7.2x10-6 in/in.°F (70-212 °F)
Modulus of rigidity	77.2 kN/mm2	11197 ksi
Modulus of elasticity	204.9 kN/mm2	29719 ksi

Properties of Supplied Materials and Heat Treated Materials

Condition of Supply	Heat Treatment (After Forming)
No.1 Spring Temper/Spring Temper	1. Solution Anneal at 980°C (1800°F) for 1 hour and air cool and 2. Age harden at 720°C (1330°F) for 8 hours and furnace cool to 620°C (1150°F) and hold at 620°C (1150°F) for a total age hardening time of 18 hours and air cool.
No.1 Spring Temper/Spring Temper (NACE MRO175)	1. 1010°C (1870°F) 2 hours and air cool and 2. 790°C (1455°F) 6 hours and air cool.
Condition	Approx Tensile Strength		Approx Service Temp.
Annealed	800 - 1000 N/mm2	116 - 145 ksi	–	-
No.1 Spring Temper	1000 - 1200 N/mm2	145 - 175 ksi	–	-
No.1 Spring Temper + Annealed + Aged	1250 - 1450 N/mm2	181 - 210 ksi	-200 to +550°C	-330 to +1020°F
Spring Temper	1300 - 1500 N/mm2	189 - 218 ksi	–	-
Spring Temper + Annealed + Aged	1250 - 1450 N/mm2	181 - 210 ksi	-200 to +550°C	-330 to +1020°F

Element	Content
Ni+Co	50 - 55 %
Cr	17 - 21 %

Typical application areas

1. Marine: Marine structures in sea areas, seawater desalination, marine aquaculture, and seawater heat exchange.
2. Environmental protection: Flue gas desulfurization equipment for thermal power generation, wastewater treatment, etc.
3. Energy: Atomic power generation, comprehensive utilization of coal, and tidal power generation.
4, petrochemical industry: oil refining, chemical and chemical equipment.
5, the food industry: salt, soy sauce brewing.
6, high concentration of chloride ion environment: paper industry, various bleaching devices

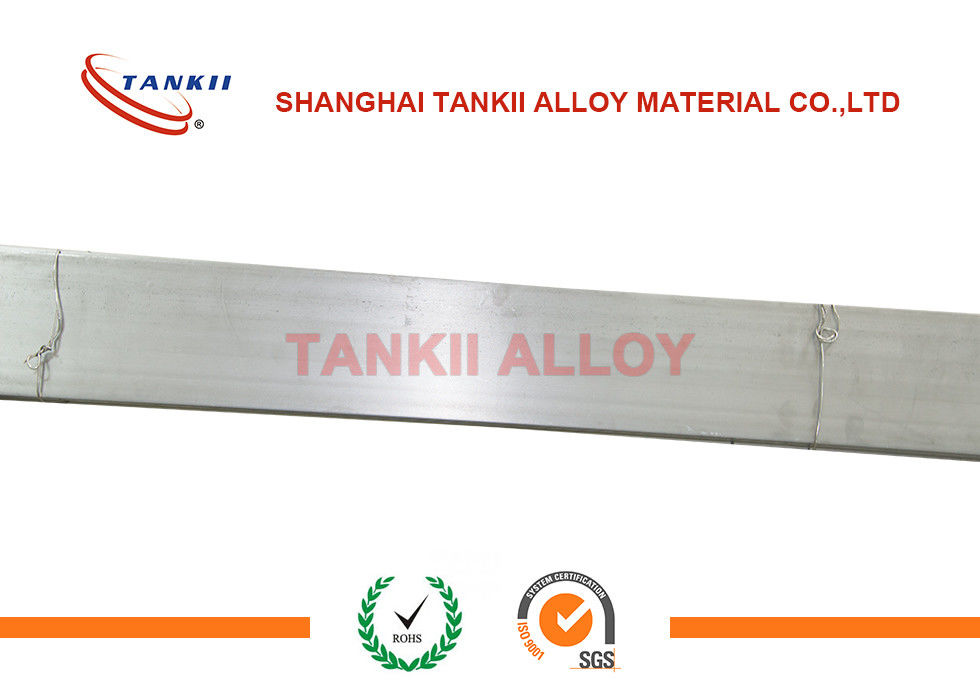

Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine 0

Easy Processing Inconel 718 Strip / Plate / Sheet Customized Size For Steam Turbine 3
