Product Details
Place of Origin: Shanghai, Tankii
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: Ni60Cr15
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: TO negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film According to Custom's Requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YERA
Colour: |
Silver White, Metallic Or Polished |
Type: |
Bare Round Wire/ Flat Wire |
Application: |
Furnace, Household Appliance, Storage Heaters |
Conductor Type: |
Solid |
Model: |
NCHW-2 |
Condition: |
Soft, Half Hard, Hard |
Colour: |
Silver White, Metallic Or Polished |
Type: |
Bare Round Wire/ Flat Wire |
Application: |
Furnace, Household Appliance, Storage Heaters |
Conductor Type: |
Solid |
Model: |
NCHW-2 |
Condition: |
Soft, Half Hard, Hard |

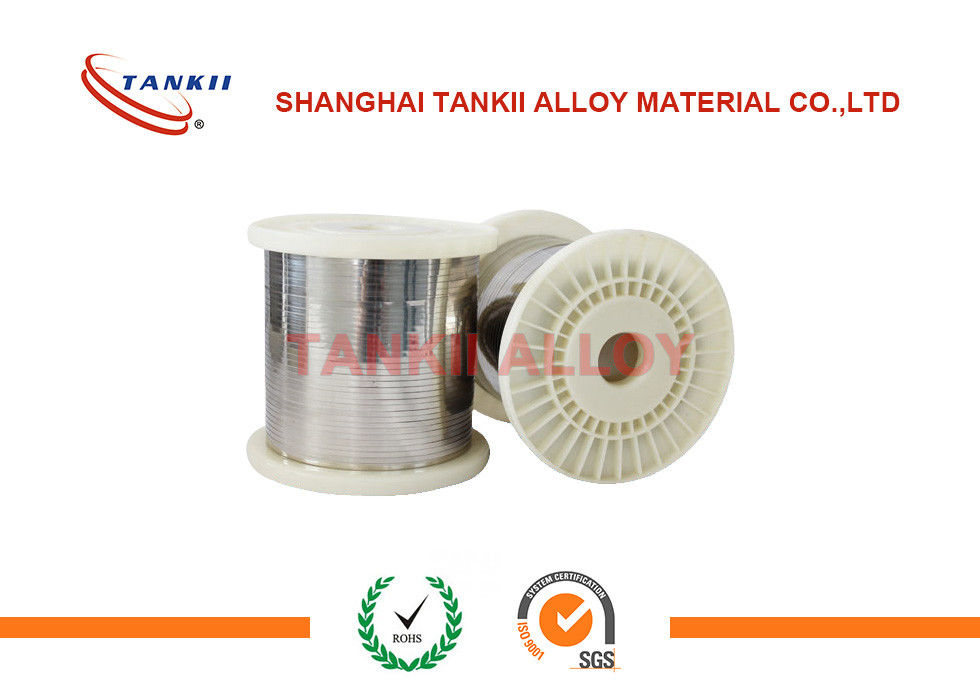

Nicr60 /15 Flat Nicr Alloy Nchw-2 Storage Heater Nichrome Ribbon Wire
Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking or burning out.
Applications:These elements are commonly found in precision heating applications such as Medical Diagnostics, Satellite, and Aerospace; Electrical appliance industry; Ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements, cartridge elements
Main Advantage and Application
1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
Service
1.fine after-sale services
2.small order accepted
3.samples available
Main Properties
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
| Density(g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
