Product Details
Place of Origin: Shanghai, Tankii
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni60Cr15
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: TO negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film As to Custom's Requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YERA
Advantage: |
Good Processing Performance, Corrosion Resistance |
Insulation Material: |
None |
Conductor Type: |
Solid |
Colour: |
Silver Or Polished |
Type: |
Bare Round Wire/ Flat Wire |
Application: |
Furnace, Household Appliance |
Advantage: |
Good Processing Performance, Corrosion Resistance |
Insulation Material: |
None |
Conductor Type: |
Solid |
Colour: |
Silver Or Polished |
Type: |
Bare Round Wire/ Flat Wire |
Application: |
Furnace, Household Appliance |

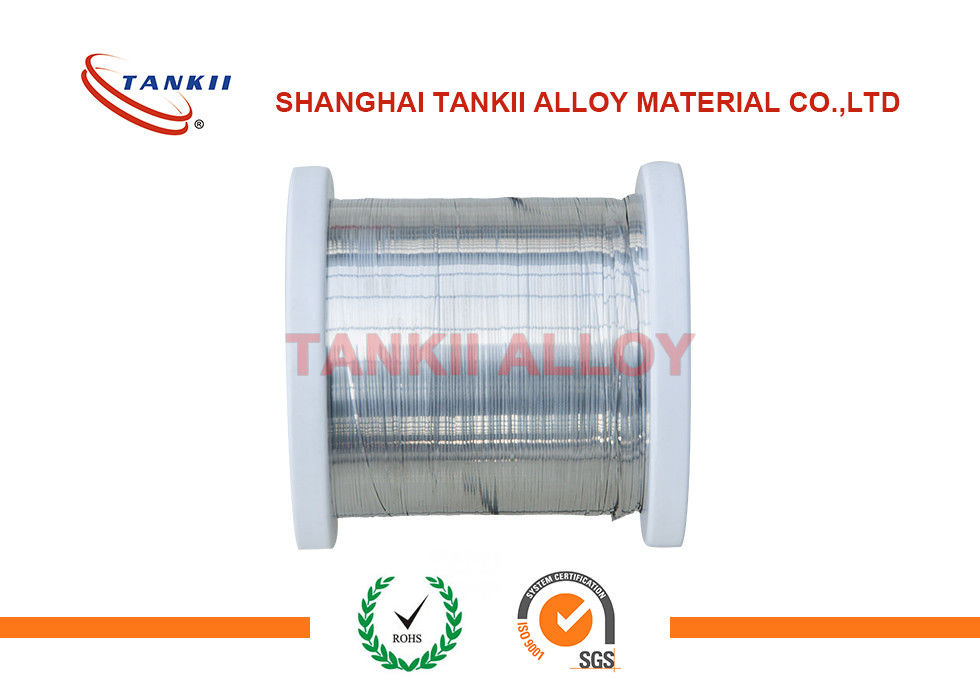

Heat Resistant Nicr Alloy Nichrome Ribbon With Nickel 60% Chromium 15%
Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
Ni60Cr15 nickel chromium alloy wire is an ideal material, it has good ductility,workability and weldability under high temperature and seismic strength.
Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil-forming ability.
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.
Application of Different Grades:
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.
Mechanical Properties
Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
Resistivity at 20ºC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
Density(g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
Thermal conductivity (KJ/m·h·ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic |
