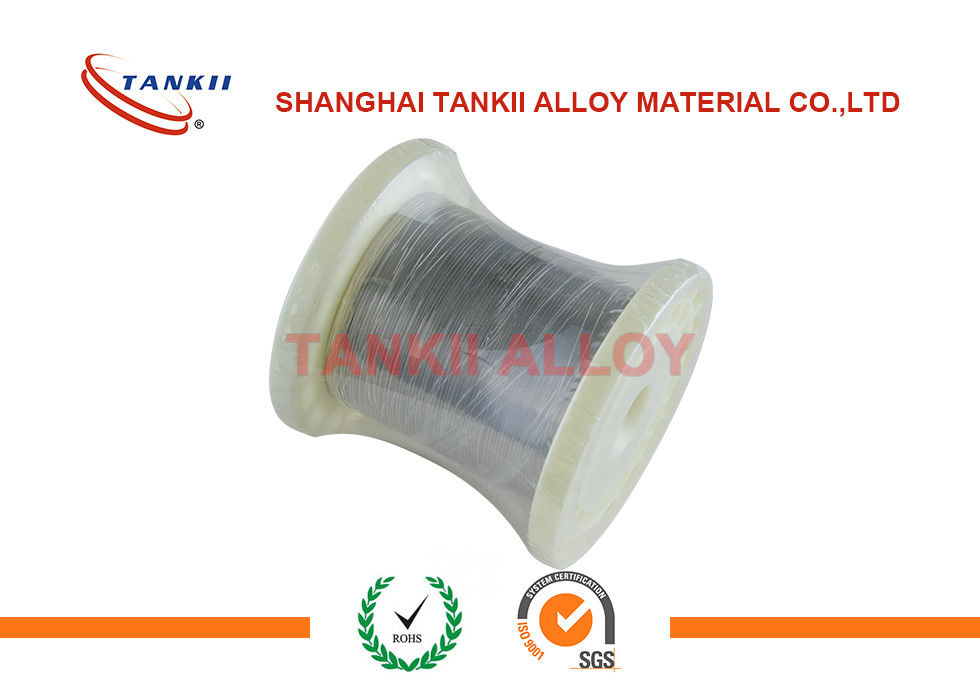

Round Nickel Chromium Alloy Wire 0.29mm Diameter For Electric Heating Elements

Name: Round Nickel Chromium Alloy Wire 0.29mm Diameter For Electric Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, china

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: To negotiate

Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film as to Custom's Requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union,

Supply Ability: 2000+TON+YEAR

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      high resistance wire, nickel alloys


Feature:	Corrosion Resistance, Anti-Oxidation	Max Temperature Of Continuous Work:	1200
Resistivity:	1.09	Material:	Nickel 80% Chromium 20%
Shape:	Round Wire	Density:	8.4g/cm3

Feature:	Corrosion Resistance, Anti-Oxidation
Max Temperature Of Continuous Work:	1200
Resistivity:	1.09
Material:	Nickel 80% Chromium 20%
Shape:	Round Wire
Density:	8.4g/cm3

Description

Round Nickel Chromium Alloy Wire 0.29mm Diameter For Electric Heating Elements

Round Nickel Chromium Alloy Wire 0.29mm Diameter For Electric Heating Elements

Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil- forming ability.

Nichrome 8020 is an ideal material,it has good ductility,workability and weldability under high temperature and seismic strength.

NiCr series: Cr10Ni90,Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.

The material grade we have
Inconel600/601/625/718/X-750/713C,
Incoloy800H/800/901/925/926/A286
Hastelloy B/B-2/C-4/C-22/C-276,
Monel400/K500,Nickel200/201
N02200/N02201/N04400/N05500/N06600/N06601/
N06625/N06690/N07718/N07750/N08800/N08810/
N08825/N09925/N10001/N10665/N06455/N06022/
N10276/N06200/N08020/S66286/K93600/N08367/N06059/N08904
2.4060,2.4061,2.4360,2.4375,2.4851,2.4816,2.4856,2.4642,2.4668,2.4669,
1.4980,1.7876,1.4529,2.4858,2.4617,2.4610,2.4602,2.4675,2.4665,2.4660,
2.4636,2.4983,1.3912,1.4539,2.4605,etc
Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
420	810	30

Typical Physical properties

Density (g/cm3)	8.4
Electrical resistivity at 20ºC(mm2/m)	1.09
Conductivity coefficient at 20ºC (WmK)	15

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	18

Specific heat capacity
Temperature	20ºC
J/gK	0.46

Melting point (ºC)	1400
Max continuous operating temperature in air (ºC)	1200
Magnetic properties	non-magnetic

Temperature Factors Of Electrical Resistivity
20ºC	100ºC	200ºC	300ºC	400ºC	600ºC
1	1.006	1.012	1.018	1.025	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	-

Style of supply

Alloys Name	Type	Dimension
Ni80Cr20W	Wire	D=0.03mm~8mm
Ni80Cr20R	Ribbon	W=0.4~40	T=0.03~2.9mm
Ni80Cr20S	Strip	W=8~250mm	T=0.1~3.0
Ni80Cr20F	Foil	W=6~120mm	T=0.003~0.1
Ni80Cr20B	Bar	Dia=8~100mm	L=50~1000

Round Nickel Chromium Alloy Wire 0.29mm Diameter For Electric Heating Elements
