Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 0Cr25Al5
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case with plastic film according to custom´s requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000+TON+YEAR
Application: |
Electric Furnace Element |
Advantage: |
Long Work Life, High Resistivity |
Diameter: |
0.6-1.0mm |
Color: |
Silver Grey |
Composition: |
Chromium 25%, Aluminum 5%, Ferro Bal. |
Resistivity: |
1.42 |
Application: |
Electric Furnace Element |
Advantage: |
Long Work Life, High Resistivity |
Diameter: |
0.6-1.0mm |
Color: |
Silver Grey |
Composition: |
Chromium 25%, Aluminum 5%, Ferro Bal. |
Resistivity: |
1.42 |

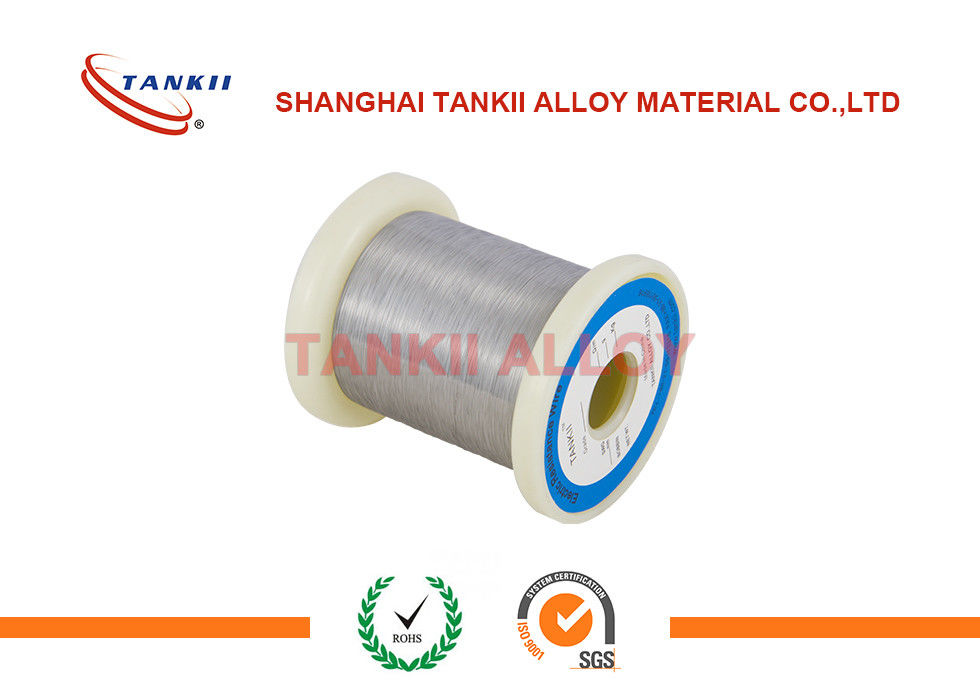

Silver Grey High Temperature Wire 0cr25al5 With Diameter 0.6mm 0.7mm 0.8mm
1. Description
FeCrAl Alloy, is now the most widely used in electric heating resistance alloy. With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
2. Specification
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm
2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)
3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm
4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm
3. Features
Stable performance; Anti-oxidation; Corrosion resistance; Low expansion coefficient; High temperature stability; Excellent coil-forming ability; High surface load; Uniform and beautiful surface condition without spots
4. Packing detail
Spool, coil, carton, wooden case with plastic film or other wrapping paper according to per client´s requirements.
5. Products and services
1). Pass: ISO9001 certification, and SO14001certification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other | ||
| Max | |||||||||||
| 0.12 | 0.025 | 0.025 | 0.70 | Max 1.0 | 13.0~15.0 | Max 0.60 | 4.5~6.0 | Bal. | - | ||
Mechanical Properties
| Max Continuous Service Temp | 980ºC |
| Resisivity at 20ºC | 1.28 ohm mm2/m |
| Density | 7.4 g/cm3 |
| Thermal Conductivity | 52.7 KJ/m@h@ºC |
| Coefficient of Thermal Expansion | 15.4×10-6/ºC |
| Melting Point | 1450ºC |
| Tensile Strength | 637~784 Mpa |
| Elongation | Min 12% |
| Section Variation Shrink Rate | 65~75% |
| Repeatedly Bend Frequency | Min 5 times |
| Continuous Service Time | - |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC | 700ºC | 800ºC | 900ºC | 1000ºC |
| 1 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 | 1.120 | 1.132 | 1.142 | 1.150 |
If you are interested, pls do not hesitate to contact us.
