|Density:||7.7g/cm³||Allows The Use Of Temperature:||-70~260|
|Linear Temperature:||-20~200||Temperature Curvature:||39.4|
|Modulus Of Elasticity:||1.38||Use:||Temperature Compensation Element|
|Features:||High Resistivity||Name:||2501 36-10 721-112|
soft magnetic alloy,
|shop sign||2501 36-10 721-112|
|High expansion layer||Mn75Ni15Cu10(Mn72Ni10Cu18)|
|Low expansion layer||Ni36|
|Than bending K(20~135ºC)||Temperature curvature
F/(greenhouse ~ 130 ºC)
|Allows the use of temperature / ºC||Density (g/cm after)|
|Nominal value||Allowable deviation||Standard values||Allowable deviation|
|Level 1||Level 2|
|Modulus of elasticity
|Hardness (HV)||Tensile strength
|Allow stress MPa|
|High expansion layer||Low expansion layer||minimum||biggest|

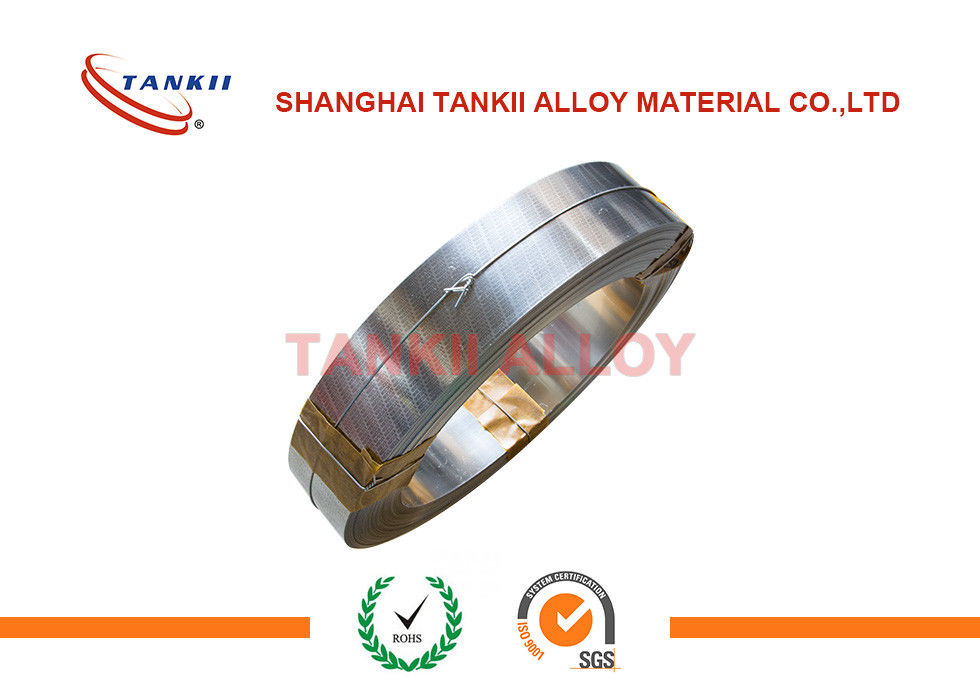

Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.
The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.
System of heat treatment: heat sensitive resistance, resistivity and elastic modulus of samples before the measurement must undergo heat treatment, to eliminate stress.
Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction
