Product Details:
|
| Material: | Cr:25% Al:5% | Resistivity: | 1.42 |
|---|---|---|---|
| Density: | 7.1 G/m3 | Shape: | Wire / Strip / Ribbon |
| Diameter: | 0.02-10.0mm | Surface: | Bright |
| Packing: | Spool + Carton + Wooden Case | ||
| High Light: | nichrome resistance wire,nickel alloys |
||

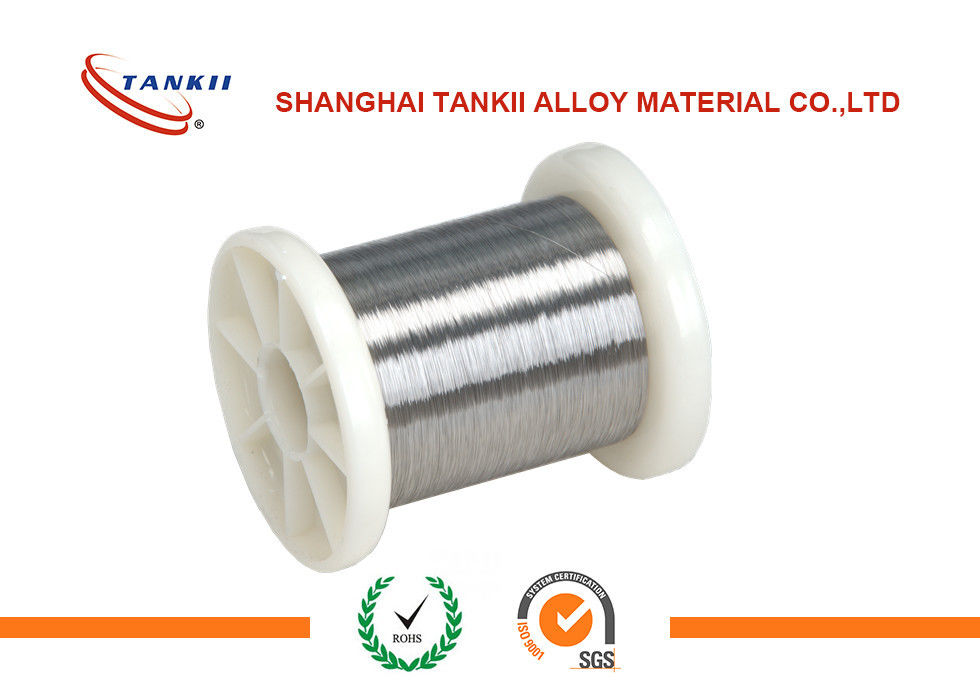

High Resistivity Heating Element Wire Round Shape 0.08mm, FeCr25Al5, 0Cr25Al5
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Forms:wire, bar, strip,sheet / plate,forging,tube/pipe,etc.
Main technical characteristics of FeCrAl Alloy:
|
Brand Property |
1Cr13Al4 | 1Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Major chemical component% | Cr | 12.0-12.5 | 17.0-21.0 | 19.0-22.0 | 20.5-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | |
| Addition Nb:0.5 |
Addition Mo:1.8-2.2 |
|||||||
| Component max. use temperature | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Melting Point | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1510 | |
| Density g/cm3 | 7.40 | 7.35 | 7.16 | 7.25 | 7.10 | 7.10 | 7.10 | |
| Resistivity μΩ·m,20 | 1.25±0.08 | 1.23±0.06 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 | 1.45±0.07 | 1.53±0.07 | |
| Tensile Strength Mpa | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | 684-784 | |
| Extension rate% | 16 | 12 | 12 | 12 | 12 | 10 | ||
| Repeated bending frequency | 5 | 5 | 5 | 5 | 5 | |||
| Fast lift h/ | - | 80/1300 | 80/1300 | 50/1350 | ||||
| Specific Heat J/g. | 0.490 | 0.490 | 0.520 | 0.460 | 0.494 | 0.494 | 0.494 | |
| Heat Conduction Coefficient KJ/M.h | 52.7 | 46.9 | 63.2 | 60.1 | 46.1 | 46.1 | 45.2 | |
|
Linear expansion coefficient aX10-6/ (20-1000) |
15.4 | 13.5 | 14.7 | 15.0 | 16.0 | 16.0 | 16.0 | |
| Hardness HB | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Microstructure | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | |
| Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
About our company
- Shanghai Tankii Alloy is a professional manufacturer of High Resistance heating alloys for more than 30 years in China. Now we can supply more than 5000 tons for different types of nickel base alloy per year.
- We can supply Ni-Cr, Fe-Cr-Al,Ni-Fe, Supper alloys, welding materials in forms of wire,strip,bar,sheet,pipe etc.
- We can also customize the goods apply to customer. Now we supply nickel base alloys for companies from USA, Europe, Russia, Ukraine, India, Korea, Iran,UK, etc.
