Product Details:
|
| Material: | Cu-Manganin-Cu | Shape: | Strip / Tape |
|---|---|---|---|
| Resistivity: | 0.43 | Name: | Shunt Strip |
| High Light: | nickel copper alloy,copper and nickel alloy |
||

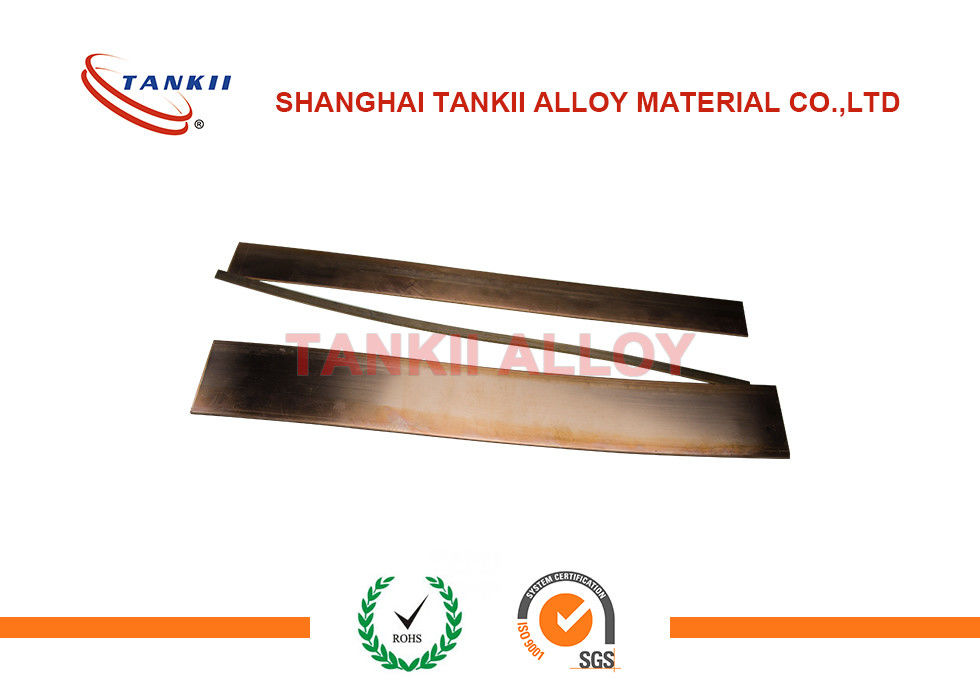

High quality MnCu alloy Manganin resistance strip / Ribbon 0.8x 5.0mm
manganin alloy strip
CuNi resistance Alloy
Very good resistance to corrosion
Very good malleability
Very good solder ability
Defination of Manganin
Manganin is a Copper-Manganese-Nickel Resistance alloy; it combines all the properties required of a precision electrical resistance alloy such as high resistivity, low temperature coefficient of resistance, very low thermal effect against copper and good performance of electrical resistance over long periods of time.
Alloy Available of Manganin
a) Wire φ8.00~0.02
b) Ribbon t=2.90~0.05 w=40~0.4
c) Plate (Standard) 1.0t×100w×800L
d) Foil t=0.40~0.02 w=120~5
Chemical composition of Manganin
86% copper, 12% manganese, and 4% nickel
Manganin application:
Manganin is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.
a) It is used for making wire wound precision resistance
b) Resistance boxes
c) Shunts for electrical measuring instruments
| Alloy type | Cu | Mn | Ni |
| 6J8 | rest | 8-10 | / |
| 6J12 | rest | 11-13 | 2-3 |
| 6J13 | rest | 11-13 | 2-5 |
Related parements of Manganin wire:
| Item | 6J8 | 6J12 | 6J13 |
| Resistivity | 0.35±0.05 | 0.47±0.03 | 0.44±0.04 |
| TCRx10 -6 /°c | -5~+10 | -10~+20 | 0~40 |
| EMF V S Cu(0-100°c)uv/°c | ≤2 | ≤1 | ≤2 |
| Density(g/cm 3 ) | 8.7 | 8.4 | 8.4 |
| Melting point (°c) | 960 | 960 | 960 |
| Tensile strength(MPa) | 490--539 | 490--539 | 490--539 |
| Elongation(%) | 10-30 | 10-30 | 10-30 |
| Service temperature(°c) | 10-80 | 5-45 | 10-80 |
