Product Details:
|
| Features: | Than Bending Is Very High, High Resistivity | Rigidity: | 190~260 |
|---|---|---|---|
| Application: | Circuit Breaker | Density: | 7.6 |
| Allows The Use Of Temperature Range: | -70~200℃ | Elastic Modulus: | 113000 |
| Linear Temperature Range: | -20~150 | Resistivity: | 12.5 |
| Bending: | 15.3 | Temperature Curvature: | 28.5% |
| High Light: | soft magnetic alloy,kovar alloy |
||

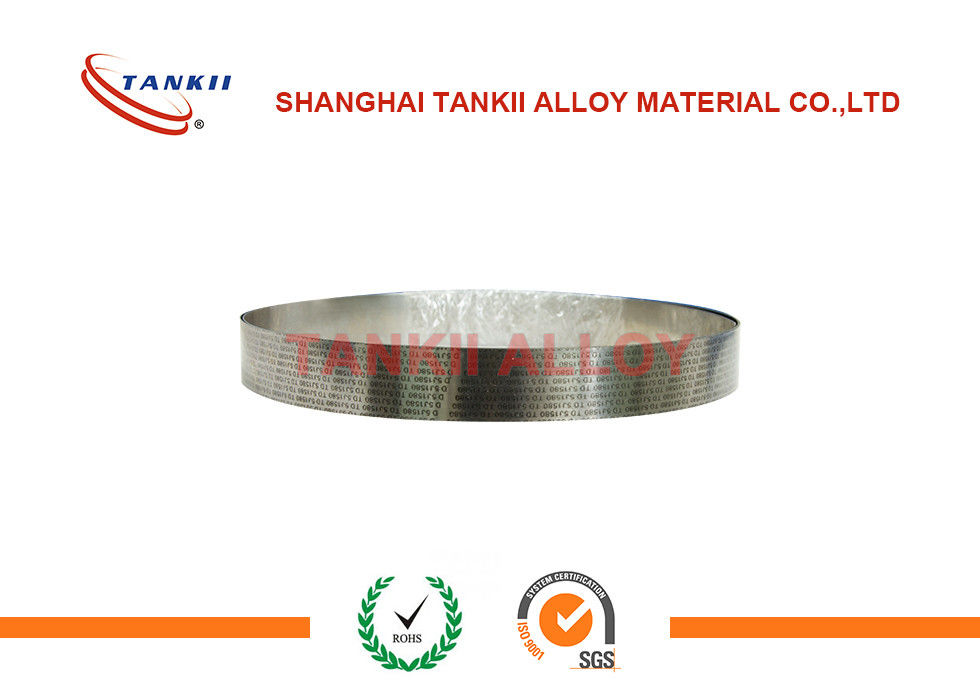

Precise alloy strips Thermal bimetal strip 5j15120(5j14)
Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction.
| shop sign | 5j15120 | |
| With brand | 5j14 | |
| Composite layer alloybrand |
High expansion layer | Mn75Ni15Cu10(Mn72Ni10Cu18) |
| middle layer | -------- | |
| Low expansion layer | Ni45Cr6 | |
Chemical composition
| shop sign | Ni | Cr | Fe | Cu | Mn | Si | C | S | P |
| ≤ | |||||||||
| Ni45Cr6 | 44.0~45.0 | 5.0~6.5 | allowance | - | 0.3~0.6 | 0.15~0.3 | 0.05 | 0.02 | 0.02 |
| Mn72Ni10Cu18 | 8.0~11.0 | - | ≤0.8 | 17.0~19.0 | Bal | ≤0.5 | 0.05 | 0.03 | 0.02 |
| Mn75Ni15Cu10 | 14.0~16.0 | - | ≤0.8 | 9.0~11.0 | Bal | ≤0.5 | 0.05 | 0.02 | 0.03 |
performance
| Than bending K(20~135ºC) | Temperature curvature F/(greenhouse ~ 130 ºC) |
resistivity | Linear temperature / ºC |
Allows the use of temperature / ºC | Density (g/cm after) | |||
| Nominal value | Allowable deviation | Standard values | Allowable deviation | |||||
| Level 1 | Level 2 | |||||||
| 15.3 | ±5% | ±5% | 28.5%±5% | 1.25 | ±5% | -20~200 | -70~200 | 7.6 |
| Modulus of elasticity E/GPa |
Hardness (HV) | Tensile strength MPa |
Allow stress MPa | ||
| High expansion layer | Low expansion layer | minimum | biggest | ||
| 123~162 | 190~240 | 205~260 | 736~834 | 147 | 294 |
Application: The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.
Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.
