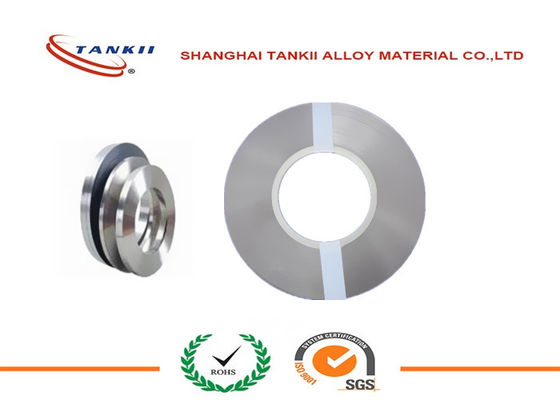

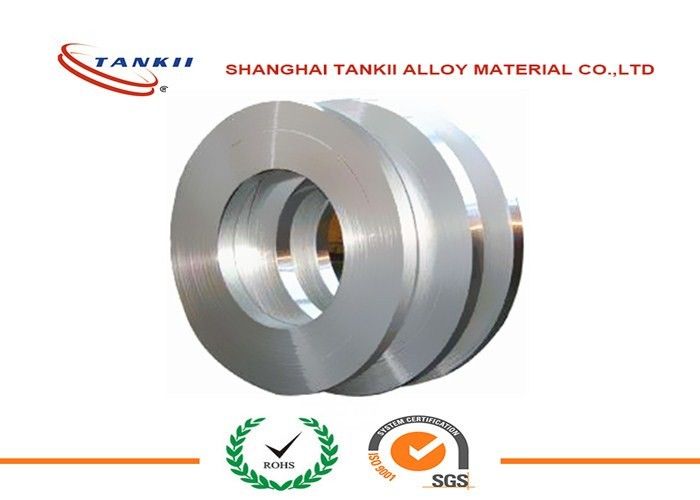

Density 8.3 Precision Alloy Thermal Bimetal Strip B150R For Steam Traps

Product Details

Place of Origin: shanghai

Brand Name: TANKII

Certification: iso

Model Number: B150R

Payment & Shipping Terms

Minimum Order Quantity: 80

Price: Negotiable

Packaging Details: wooden case

Delivery Time: 20 days

Payment Terms: T/T, D/A, L/C

Supply Ability: 50 + Tons + month

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Use:
Steam Traps
Density:
8.3
Resistivity:
0.2
Bending:
12.3
Temperature Curvature:
23.6±5%
Shop Sign:
B150R
Flexivity(10~90℃×10-6/℃):
24.7
Flexivity(40~150℃×10-6/℃):
23.9
Specific Deflection:
13.1
Use:
Steam Traps
Density:
8.3
Resistivity:
0.2
Bending:
12.3
Temperature Curvature:
23.6±5%
Shop Sign:
B150R
Flexivity(10~90℃×10-6/℃):
24.7
Flexivity(40~150℃×10-6/℃):
23.9
Specific Deflection:
13.1
Description
Density 8.3 Precision Alloy Thermal Bimetal Strip B150R For Steam Traps

Thermal Bimetal Strip B150R for Fuseless breakers



Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.


The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.


Main features: Linear temperature range is higher, low thermal performance, can be used at high temperature.



shop sign 5J1325B
With brand
Composite layer
alloybrand
High expansion layer Ni22Cr3
middle layer Ni
Low expansion layer Ni36



Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.60 ≤0.3 0.05 0.02 0.02
Ni ≥99.3 - ≤0.15 - ≥0.15   - - 0.15 - 0.015
Ni22Cr3 21.0~23.0 2.0~4.0 allowance - - - 0.3~0.6 0.15~0.30 0.25~0.35 0.02 0.02





Production process
Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip
