Product Details:
|
| Dia: | 1.2 - 6.0mm | Material: | Magnesium Aluminum Zinc Alloy |
|---|---|---|---|
| Surface: | Bright | Packing: | 4KG/spool, |
| Density: | 1.8g/cm3 | ||
| Highlight: | Pure Magnesium Welding Wire,Magnesium Alloy Welding Wire,Magnesium Alloy Wire Az91 |
||

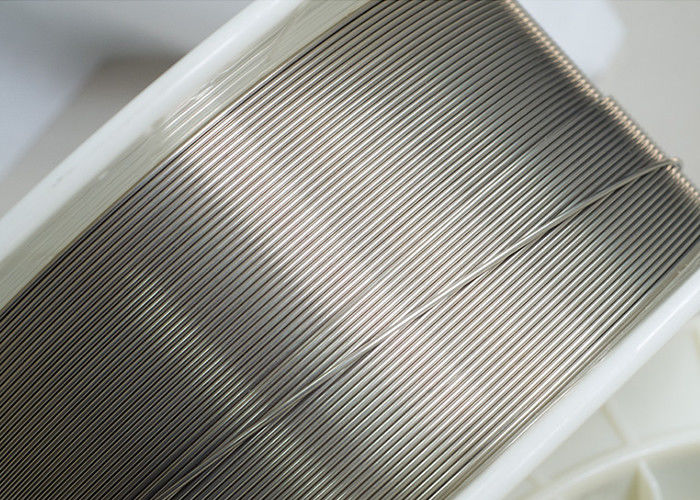

Az31 Az61 Az91 Pure Magnesium Alloy Welding Wire
Magnesium welding wire is main used for welding of industrial pure nickel forgings and castings. such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding wire.
Specification
Diameter: 0.5-8.0 mm
Standard diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Conform to ASTM B90 Standard!
| AZ31 | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 2.40 | 0.50 | 0.15 | |||||
| Max% | 3.60 | 1.50 | 0.4 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ61 | GB/T 5153 | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 5.50 | 0.5 | 0.15 | |||||
| Max% | 6.50 | 1.50 | 0.40 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ91 | GB/T 5153 | ||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
| Min% | 8.5 | 0.45 | 0.17 | 0.0005 | |||||
| Max% | 9.5 | 0.90 | 0.40 | 0.08 | 0.004 | 0.025 | 0.001 | 0.003 | 0.3 |
| AZ92 | AWS A5.19-1992 | ||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Be | Others,total |
| Min% | 8.3 | 1.7 | 0.15 | 0.0002 | |||||
| Max% | 9.7 | 2.3 | 0.50 | 0.05 | 0.005 | 0.05 | 0.005 | 0.0008 | 0.3 |
extruded pure magnesium rod
Mg 99.90% min.
Fe 0.06% max.
Si 0.03% max.
Ni 0.001% max.
Cu 0.004% max.
Al 0.02% max.
Mn 0.03% max.
Diametre: Ø 0.1inch - 2 inch
Tolerance: Dia ±0.5mm length : ±2mm
Specifications
Magnesium alloy welding wire AZ31 AZ61 AZ91
1.size:1.2 1.6 2.0 2.4 3.0mm
2.High quality and favorable price.
Magnesium alloy welding wire AZ31 AZ61 AZ91
Product Description
1. High quality magnesium alloy welding wire
2. Spec: AZ31, AZ61, AZ91
3. Condition As extruded. Smooth finish, free from surface grease or other foreign matter which would adversely affect the welding operation.
4. Dimensions: Standard diameters: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
5. Packaging: Every reel is packed in vacuum foil package, the reels are packed in wooden case
Our Services
1.Factory directly supply.
2.We have strict quality control system to make sure our goods will be same as your confirmed sample.
3.Packing as your request, with photo before shipment
4.Prompt shipment with professional documents
Magnesium alloy wire:
1. Our company, we can offer an extensive range of magnesium alloy wire for welding with high quality.
2. The specifications covered include: UK -British Standard BSL, BS2970, MOD DTD series, Rolls Royce MSRR. USA -ASTM, AMS, QQ-M, AWS. Germany -Aircraft number, DIN 1729. France -Air 3380 and AFNOR. European -AECMA.
3. Spec: AZ31, AZ61, AZ91.
4. Condition: As extruded. Smooth finish, free from surface grease or other foreign matter which would adversely affect the welding operation.
5. Dimensions: Standard diameters: 0.8mm,1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm,4.0mm
