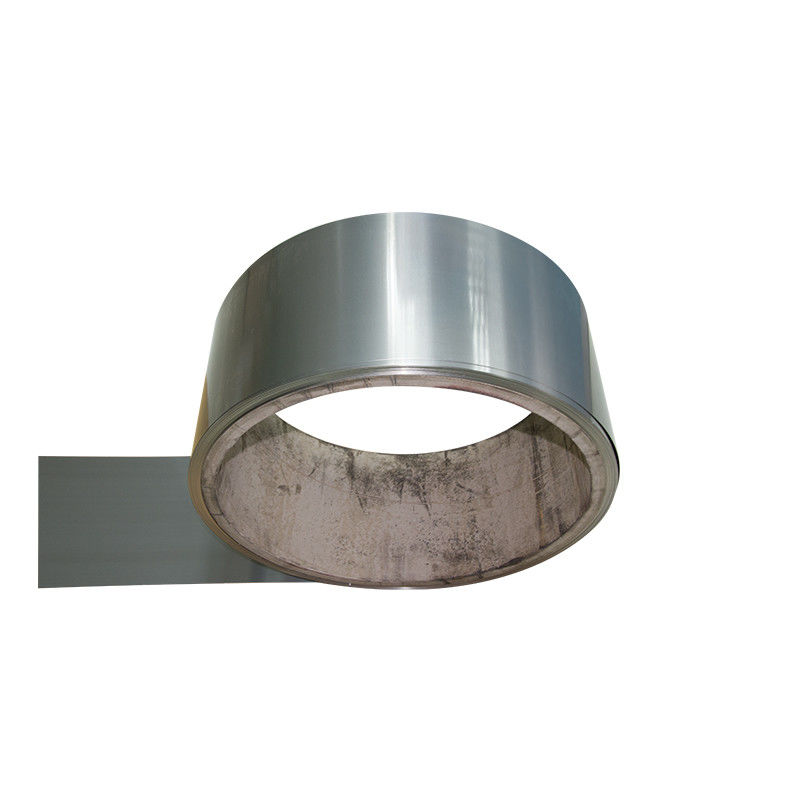

Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: DIN, ASTM, JIS

Model Number: 1J50

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 15-25$

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000T/month

Get Best Price
Contact Now
Specifications
Highlight:

1J50 Precision Alloy

,

NiFe50 Soft Magnetic Alloy

,

Soft Magnetic Precision Alloy

Material:
Alloy
Shape:
Wire
Application:
Industry
Dimension:
Customzied
Color:
Bright
Size:
As Customer's Requirement
Type:
High Potential
Process:
Steelmaking Additive
Surface:
Bright
Feature:
High Temperature
Material:
Alloy
Shape:
Wire
Application:
Industry
Dimension:
Customzied
Color:
Bright
Size:
As Customer's Requirement
Type:
High Potential
Process:
Steelmaking Additive
Surface:
Bright
Feature:
High Temperature
Description
Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy

Soft magnetic alloys 1J50 / FeNi 50 / Ni 50

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.


The following are details of our products 1J50:

Chemical composition

composition C P S Mn Si
Content(%) 0.03 0.02 0.02 0.6~1.1 0.3~0.5
composition Ni Cr Mo Cu Fe
Content(%) 49.0~51.0 - - 0.2 Bal

Physical properties

Shop sign Linear expansion coefficient Resistivity
(μΩ·m)
Density
(g/cm³)
Curie point
(ºC)
Saturation magnetostriction coefficient (10-6)

1j50 9.20 0.45 8.2 500 25.0


Heat treatment system

shop sign Annealing medium heating temperature Keep the temperature time/h Cooling rate

1j50
Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa Along with the furnace heating up 1100~1150ºC
3~6
In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge



Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.



Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 0Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 1Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 2Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 3Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 4Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 5Energy Conversion 1J50 Precision Alloy NiFe50 Soft Magnetic Alloy 6
