|Shape:||Spiral Or Round,flat||Color And Surface Treatment:||Green Or Black, Annealing|
Ss304 Spiral Coil Heating Element,
Electric Stove Spiral Coil Heating Element,
OD 6.5mm Spiral Coil Heating Element

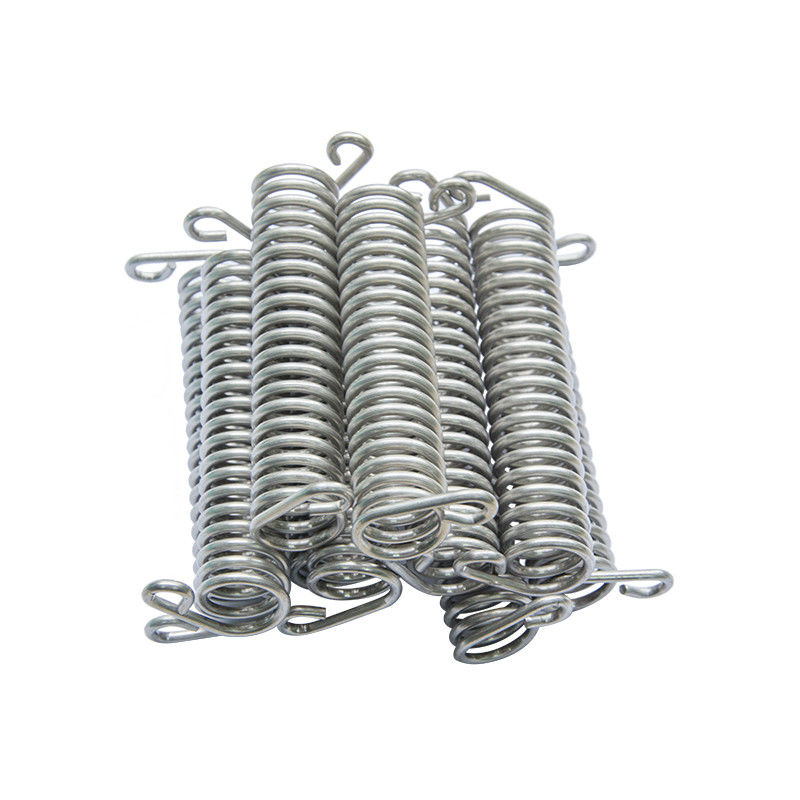

Stainless Steel ss304 spiral Coil heating element for Electric Stove
Tubular heaters are available in Copper, SS304, SS 310, SS316, SS321,430, incoloy sheath etc. Tubular heating elements are available for various industrial & domestic applications. We built every technically possible heaters as per your requirement.
The stainless steel electric heating tube adopts metal tube as its shell, spiral electric heating alloy wires (nickel chromium and iron chromium alloy) are evenly distributed along the inner center of the tube. the gaps are filled and compacted with magnesium oxide sand with good insulation and heat conductivity. both ends of the tube mouth are sealed with silica gel or ceramic. this metal armored electric heating element can heat air, metal molds and various liquids. According to the different usage status, safety and installation requirements of the electric heating tube, the electric heating tube will also include sealing structure, terminal part structure, flange, temperature control or fuse and other structures.
|1.Stove heating element|
|2.Pipe material: SUS304,SUS316,SUS321.SUS309S, Incoloy 840|
|3.Pipe Diameter: 6.6mm, 8.0mm|
|4.Resistance wire: 0CR23A15, NI80CR20,0Cr25Al5|
|5.Two terminal 4 Coils with braket type|
|Voltage & Power:110V-240V,500W-2000W|
Outer Diameter: 6.3mm~6.5mm
Model Sizes:4Circles(150mm/165mm/180mm)7" 8"
Type:with Bracket/without bracket
Heating elements for electric stove or cooking equipment
When you inquiry, pls supply us the following details:
1 Heater model, and shape;
2 Wattage and voltage,power ect.
3 Usage environmental and max temperature;
4 Material and surface treatment;
5 Diameter and length of tube;
6 The drawing is preferred.
