IEC standard Thermocouple Cable Used Solid / Hollow Pin k Type thermocouple connector

Product Details

Place of Origin: China main land

Brand Name: Tankii

Certification: ISO9001

Model Number: K / J / T/ E/ B / S / R

Payment & Shipping Terms

Minimum Order Quantity: 10 Pcs

Price: Negotiation

Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm

Delivery Time: 3-5 days after getting the payment

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 5000 Piece/Pieces per day

Get Best Price
Contact Now
Specifications
Highlight:

high temperature thermocouple cable

,

thermocouple cable k type

Color:
Yellow Or Custom Made
Standard:
IEC/ANSI
Type:
K Type Plug With Socket
Rated Current:
10A/15A/16A
Item:
IEC Standard Thermocouple Cable , Solid Pin K Thermocouple Connector
Color:
Yellow Or Custom Made
Standard:
IEC/ANSI
Type:
K Type Plug With Socket
Rated Current:
10A/15A/16A
Item:
IEC Standard Thermocouple Cable , Solid Pin K Thermocouple Connector
Description
IEC standard Thermocouple Cable Used Solid / Hollow Pin k Type thermocouple connector



IEC standard k type thermocouple connector and plug with yellow color / green color used for thermocouple sensors​



Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.


Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.
All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.





STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS

1. Solid Pin Design
2. High Quality Thermoplastic body
3. Polarized Round pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit

10. Available in all calibrations; Type B, E, J, K, N, R, S, T



Connector Type and Color

Type Color Conductor Material
KX yellow ( ANSI ) or green ( IEC ) NiCr-NiSi
NX orange NiCrSi-NiSiMg
EX purple NiCr-CuNi
JX black Fe-CuNi
TX blue Cu-CuNi
R/S green Cu-CuNi
PT100 white Cu/Ni



Pack and delivery:

Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm GW:22kg

Delivery time : 3-5 days after getting the payment

Delivery: By air



Product Picture

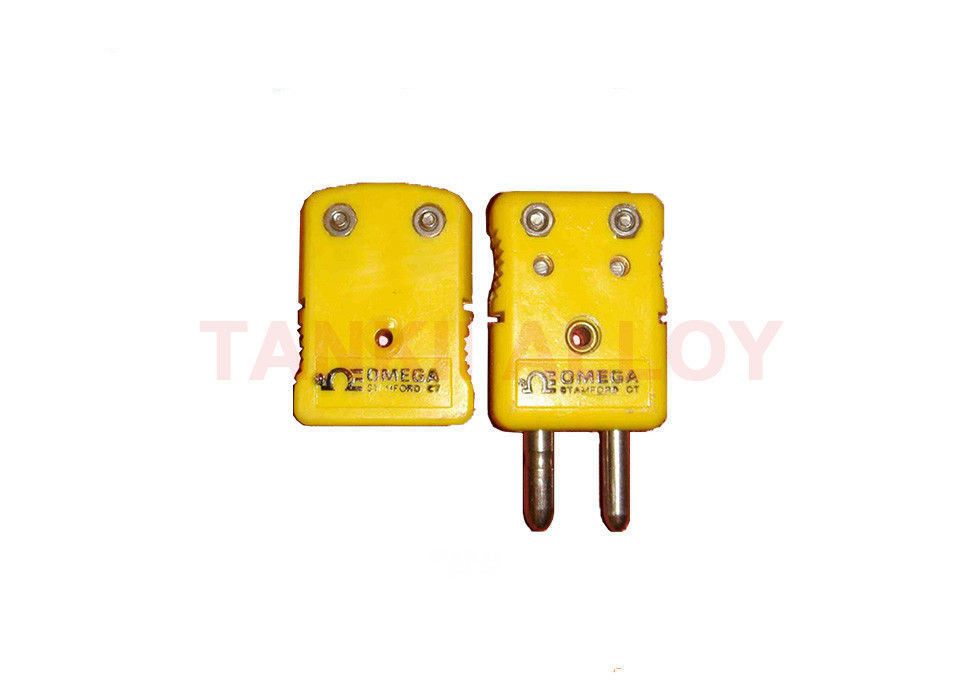

K type connectorIEC standard Thermocouple Cable Used  Solid / Hollow Pin k Type  thermocouple connector 0
