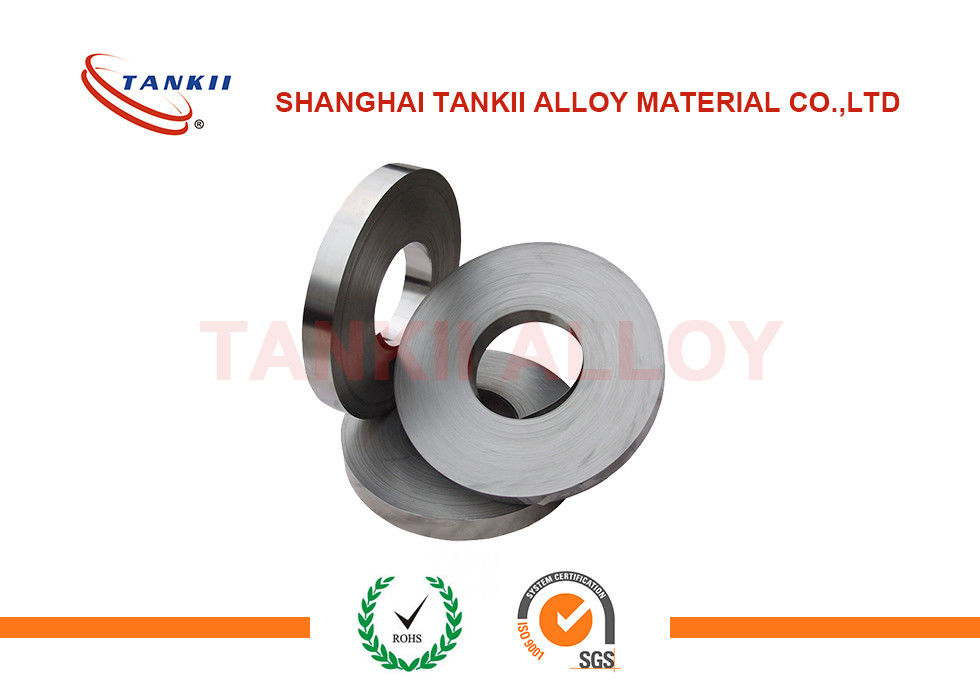

Nichrome Alloy Heating Strip Ni80Cr20 Strip Nichrome Heating Element

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr A

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: usd28-35/kg

Packaging Details: roll, waterproof cloth, wooden case

Delivery Time: 3-7 works day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000ton/Year

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome resistance wire

Material:
Nickel 80%, Chrome 20%
Color:
Bright
Temper:
Annealed, Soft
Main Usage:
Electrical Heating Element
Application:
Industrial & Household Appliances
Feature:
High Resistivit, Good Anti-oxidation Properties
Euqal Grade:
Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80
Material:
Nickel 80%, Chrome 20%
Color:
Bright
Temper:
Annealed, Soft
Main Usage:
Electrical Heating Element
Application:
Industrial & Household Appliances
Feature:
High Resistivit, Good Anti-oxidation Properties
Euqal Grade:
Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80
Description
Nichrome Alloy Heating Strip Ni80Cr20 Strip Nichrome Heating Element
Nichrome Alloy Heating Strip Ni80Cr20 Strip Nichrome Heating Element



Nickel Chromium Alloy Introduction:

This kind electrothermal alloy has structure and electrical physical,electrical stability and good high temperature mechanical property,fine cold plastic deformation and weldability cannot have the brittle fracture due to long-term use.The alloy is widely used in manufacturing the household appliances and heating element below the working temperature of 1000℃.Its service life is long.Because of high nickel quantity,the price is high.



Ni80Cr20 Strip can be used in below products as a electrical heating elements.



Nichrome Alloy Heating Strip Ni80Cr20 Strip Nichrome Heating Element 0Nichrome Alloy Heating Strip Ni80Cr20 Strip Nichrome Heating Element 1



         Industrial Heating Furnace                          Toaster Ovens


Detailed Description:

Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1

We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma



Chemical Content(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -





Mechanical Properties of nichrome wire

Max Continuous Service Temperature: 1200ºC
Resisivity 20ºC: 1.09 ohm mm2/m
Density: 8.4 g/cm3
Thermal Conductivity: 60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion: 18 α×10-6/ºC
Melting Point: 1400ºC
Elongation: Min 20%
Micrographic Structure: Austenite
Magnetic Property: nonmagnetic



Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.006 1.012 1.018 1.025 1.026 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 1.025 -



Regular size of Nickel alloy wire :

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm



Process:

Wire:Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse



Product features of nichrome wire:

1)Excellent anti-oxidation and mechanical strength at high temperature;

2)High resistivity and low temperature coefficient of resistance;

3)Excellent reelability and forming performance;

4)Excellent welding performace



Application of all grades:

Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.



Packaging & Shipping



Wire packing:

In spool--when the diameter≤1.2mm

In coil--when the diameter>1.2mm

All the wire packd into cartons→cartons packed into plywood pallet OR wooden case

Regarding the size of the spool,please refer to the picture:



Delivery-When the pre-payment is confirmed:

1)The requested products are in stock,we will send them out within 3 day

2)The raw material is in stock,we will send out the products within 10 days.

3)When we need to re-melt the material,it will take 20-25 days to send the products/



Shipping-By sea,by air,by express or other ways:

  By sea By air By express
Japan,Korea,Taiwan 2-3 days
Southeast Asia 7-9 days 2-3 days
The Middle East 20-25 days 3-5 days 3-5 days
India-Pakistan 15-22 days 3-5 days 3-5 days
Mediterranean 28-30 days 3-5 days 3-5 days
Europe 28-35 days 3-5 days 3-5 days
Africa 40-45 days about 7 days about 7 days
Australia 18-32 days 3-5 days 3-5 days
West of America 12-15 days 3-5 days 3-5 days
East of America 25-35 days 3-5 days 3-5 days
Middle and South America 30-55 days about 7 days about 7 days



Our Services

1).Offer OEM service;

2).Test report will be sent accompanying the products;

3).Adding metal elements according to the standard of different countries as per the user's requirements.



Company Information

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.



We specialized in manufacturing heating resistance alloy for years,the main products cover

NiCr series- Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30

FeCrAl series-1Cr13Al4,1Cr15Al5,0Cr21Al4,0Cr21Al6,0Cr23Al5,0Cr25Al5,0Cr21Al6Nb,0Cr27Al7Mo2 etc.

CuNi series-CuNi1,CuNi2,CuNi6,CuNi8,CuNi10,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.



FAQ

Q1:What is the MOQ?

A1:Any quantity you need when the sizes are in stock.

Wire diameter<0.1mm,it is 1kgs

Wire diameter 0.1~0.3mm,it is 2~3kgs

Wire diameter 0.3~0.7mm,it is 5kgs

Wire diameter 0.7-1.2mm,it is 10kgs

Wire diameter >1.2mm,it is 20-25kgs

For strip,smaller size,it is 10-20kgs

Larger size,it is 50-100kgs



Q2:Can you offer free samples?

A2:Yes,when the same sizes or the close sizes are in stock.But the customers must bear the freight of the samples.



Q3:What's the payment terms?

A3:We accept T/T,L/C,Paypal etc.It can be negotiated when the amount is different.



Q4:What is the standard of the material?

A4:Nichrome alloy is supplied according to Chinese standard GB/T 1234-2012.But We can add metal elements according to the standard of different countries as per the user's requirements.



Q5:Are you trading company or manufacturer?

A5:We are factory.And we welcome your visiting.
