Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: Ni Foam
Payment & Shipping Terms
Minimum Order Quantity: 10 square meter
Price: USD+ 16.9-19.8 + m2
Packaging Details: carton+Wooden case
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union,
Supply Ability: 5000000 Squaremeter
PPI: |
80 |
Material: |
Nickel |
Purity: |
>99.8%Ni |
Surface Density: |
>=250g/m2 |
POROSITY: |
>96% |
Width: |
960mm MAX |
Thickness: |
0.3mm MIN |
Sample: |
Free |
Color: |
Silver Gray |
Standard: |
GB/ASTM |
Origin: |
Shanghai, China |
Application: |
NiMh Battey,shield, Filter,etc. |
Grade: |
AAA |
PPI: |
80 |
Material: |
Nickel |
Purity: |
>99.8%Ni |
Surface Density: |
>=250g/m2 |
POROSITY: |
>96% |
Width: |
960mm MAX |
Thickness: |
0.3mm MIN |
Sample: |
Free |
Color: |
Silver Gray |
Standard: |
GB/ASTM |
Origin: |
Shanghai, China |
Application: |
NiMh Battey,shield, Filter,etc. |
Grade: |
AAA |

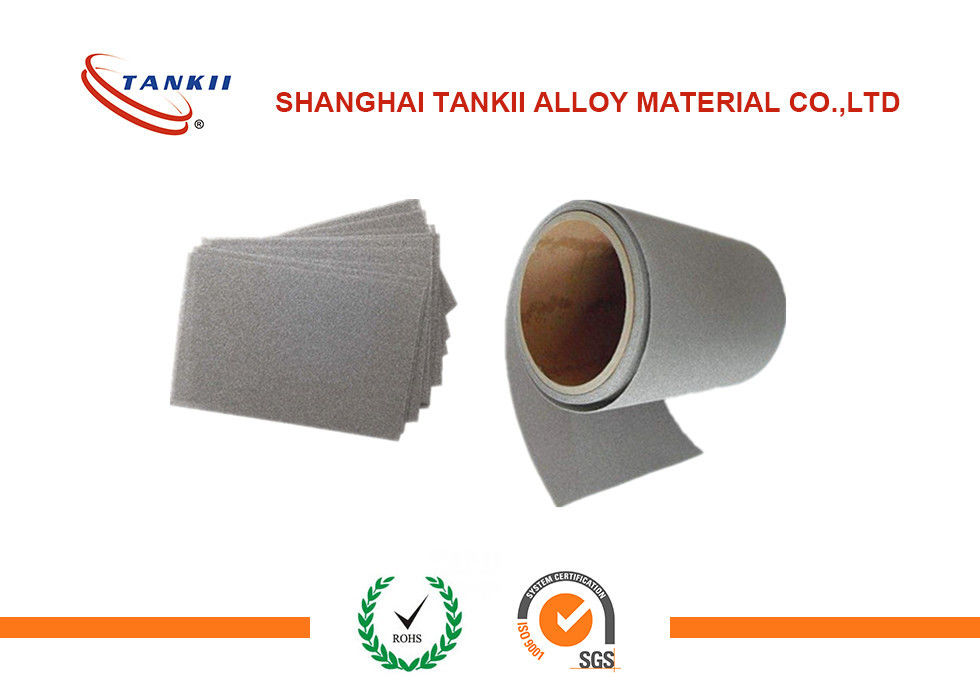

0.3*250Mm 80ppi Silver Gray Porous Nickel Matel Foam For Battery And Filter
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness. Usefulness( Various shapes can be produced)
1,Used as the base plate of positive electrode in Ni-MH/Ni-Cd battery
2,Filtration materials of air/ oil/smoke etc.
3,Porous electrode in Galvano-Chemistry Engineering
4,Elimination of heat
5,Amortization materials
6,Noise-Absorbing and Vibration-Absorbing materials
7, Electromagnetic shielding materials
8,Catalyst carrier
9,Precious metal recovery
PERFORMANCE INDEX
| ITEM | CONTINUOUS NICKEL FOAM | THICK NICKEL FOAM |
| THICKNESS | (0.3~2.5)±0.05mm | (2.6~12)±0.05mm |
| PPI | 90~120 | 20~80 |
| SURFACE DENSITY | (280~1800)±30g/M2 | (400~3000)±30g/M2 |
| TENSILE STRENGTH | (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2 | |
| ELONGATION |
(VERTICAL)≥5% (HORIZONTAL)≥12% |
|
| POROSITY | ≥96% | ≥96% |
| WIDTH | (50~960)±0.5mm | (50~960)±0.5mm |
| SPLICE FREQUENCY | 200m≤4 junction | largest length 1000mm |
| RATIO RESISTANCE | ≤5X10-6 | ≤5X10-6 |
