Constantan Resistance Wire Copper Nickel Alloy CuNi44 CuNi23 Nickel Copper Wire

Name: Constantan Resistance Wire Copper Nickel Alloy CuNi44 CuNi23 Nickel Copper Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel wire
Price: 20.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai,China

Brand Name: TANKII

Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI

Model Number: Nickel wire

Payment & Shipping Terms

Minimum Order Quantity: 100KG

Price: $10~$30/KG

Packaging Details: on spool,paper box,wooden case/pallet,in coil

Delivery Time: 30days

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 600T per moth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CuNi44 Nickel Copper Wire, Constantan Resistance Wire, CuNi23 Nickel Copper Wire


Port:	Shanghai,China	Brand:	Tankii
Application:	Industry Heating Elements	Powder Or Not:	Not Powder
Elongation:	35%	Surface:	Poblish Bright
Thickness:	0.025~3mm	Material:	Nickel Material
Width:	10~1000mm	Standard:	ASTM
Conductor Type:	Solid	Shape:	Wire
Working Environment:	Oxidizing/Inert	Working Tempature:	1200℃
MOQ:	20kg

Port:	Shanghai,China
Brand:	Tankii
Application:	Industry Heating Elements
Powder Or Not:	Not Powder
Elongation:	35%
Surface:	Poblish Bright
Thickness:	0.025~3mm
Material:	Nickel Material
Width:	10~1000mm
Standard:	ASTM
Conductor Type:	Solid
Shape:	Wire
Working Environment:	Oxidizing/Inert
Working Tempature:	1200℃
MOQ:	20kg

Description

Constantan Resistance Wire Copper Nickel Alloy CuNi44 CuNi23 Nickel Copper Wire

Constantan Resistance Wire Copper Nickel Alloy CuNi44 CuNi23, Nickel Copper Wire

Details:

Copper nickel alloy has low electric resistance,good heat-resistant and corrosion-resistant,easy to be processed and lead welded.
It isused to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical appliances.
It is also an important material for electrical heating cable.

Nickel	23	Manganese	0.5
Copper	Bal.

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
170	350	25

Typical Physical properties

Density (g/cm3)	8.9
Electrical resistivity at 20ºC (Ωmm2/m)	0.30
Temperature factor of resistivity(20ºC~600ºC)X10-5/ºC	<16
Conductivity coefficient at 20ºC (WmK)	33
EMF vs Cu(μV/ºC )(0~100ºC )	-34

Coefficient of thermal expansion
Temperature	Thermal Expansion x10-6/K
20 ºC- 400ºC	17.5

Specific heat capacity
Temperature	20ºC
J/gK	0.380

Melting point (ºC)	1150
Max continuous operating temperature in air (ºC)	300
Magnetic properties	non-magnetic

Product Description

As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
General Description
Due to has high tensile strength and increased resistivity values, copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
4. Others
Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product.

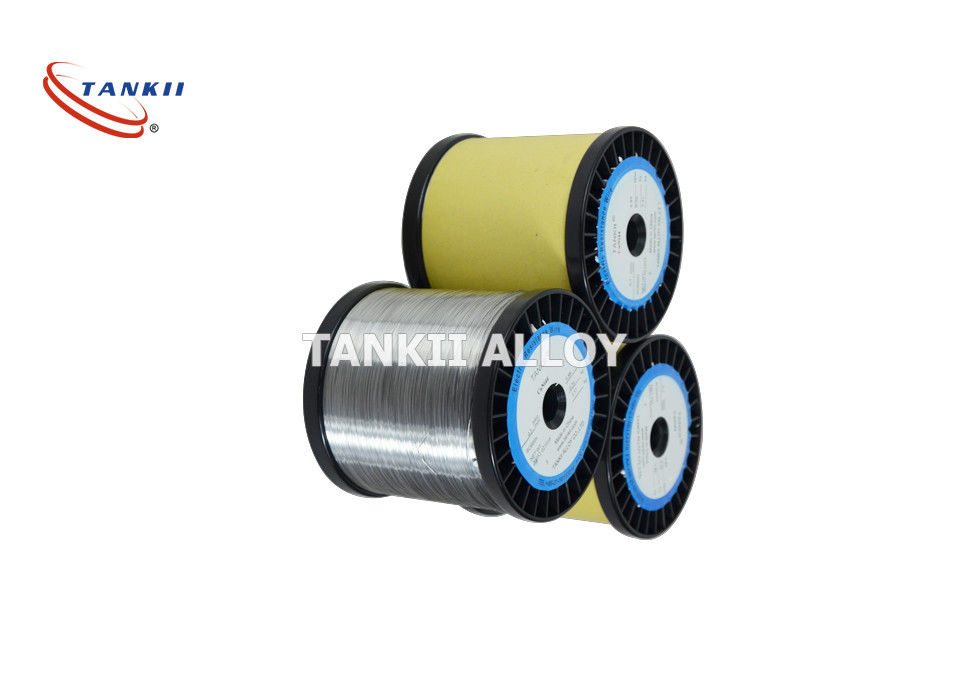

Constantan Resistance Wire Copper Nickel Alloy CuNi44 CuNi23 Nickel Copper Wire 0
