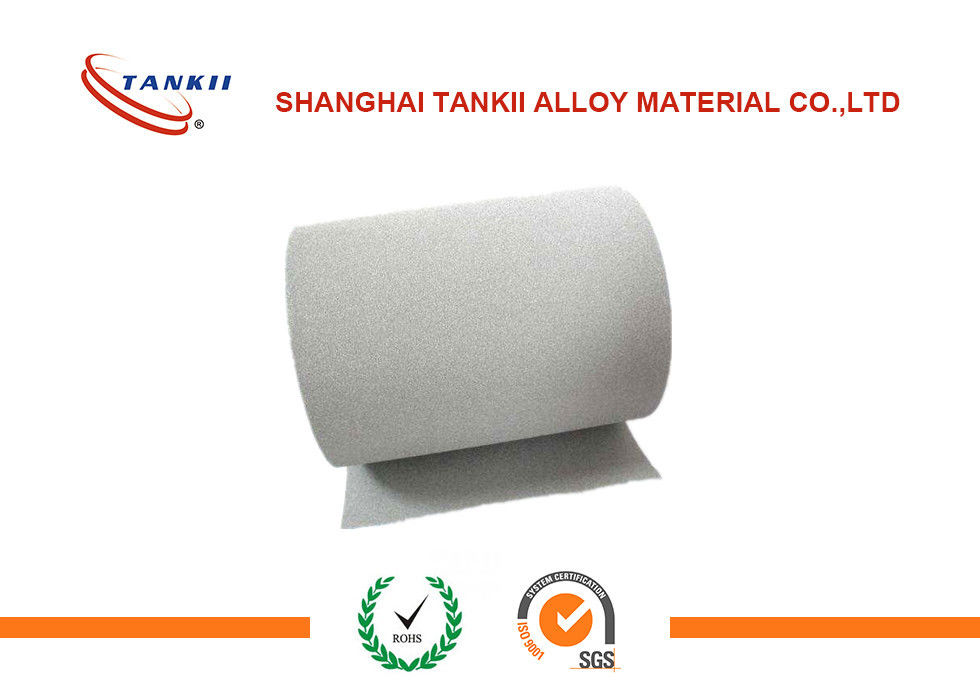

1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate

Certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
Customer Reviews
Perfect cables and bare wires. During the COVID-19 period, you sent us masks as gift, again, thanks a lot for your friendship during these difficult times!

—— Lorenzo Crisetig

Good supplier of Thermocouple wire, short leadting time and fast shipment. It's worth cooperating with Tankii alloy.

—— Vand***

Qualified products. We may place more orders to TANKII

—— Edward***

I bought thermocouple wire from Selina, she is a very responsible lady,Tankii's products quality is pretty good.

—— Jain**

Quick response with professional service on alloy wires. I trust tankii alloy.

—— Crist***

Thank you, we are fine. How are you? We received the goods, everything went fine. Perfect packaging, good product quality, good price - we are satisfied.

—— Sergej***

I'm Online Chat Now

1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate

1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate
1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate 1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate

Large Image :  1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate

Product Details:
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: Ni Foam
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: USD+ 16.9-19.6 + m2
Packaging Details: carton+Wooden case
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union,
Supply Ability: 5000000 Squaremeter

1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate

Description
PPI: 110 Material: Nickel
Purity: >99.8%Ni Surface Density: >=250g/m2
POROSITY: >96% Width: 960mm MAX
Thickness: 0.3mm MIN Sample: Free
Color: Silver Gray Standard: GB/ASTM
Origin: Shanghai, China Application: NiMh Battey,shield, Filter,etc.
Grade: AAA
High Light:

nickel 200 strip

,

nickel copper alloy



1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate



Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness. Usefulness( Various shapes can be produced)

1,Used as the base plate of positive electrode in Ni-MH/Ni-Cd battery

2,Filtration materials of air/ oil/smoke etc.

3,Porous electrode in Galvano-Chemistry Engineering

4,Elimination of heat

5,Amortization materials

6,Noise-Absorbing and Vibration-Absorbing materials

7, Electromagnetic shielding materials

8,Catalyst carrier

9,Precious metal recovery





PERFORMANCE INDEX



ITEM CONTINUOUS NICKEL FOAM THICK NICKEL FOAM
THICKNESS (0.3~2.5)±0.05mm (2.6~12)±0.05mm
PPI 90~120 20~80
SURFACE DENSITY (280~1800)±30g/M2 (400~3000)±30g/M2
TENSILE STRENGTH (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2
ELONGATION

(VERTICAL)≥5%

(HORIZONTAL)≥12%


POROSITY ≥96% ≥96%
WIDTH (50~960)±0.5mm (50~960)±0.5mm
SPLICE FREQUENCY 200m≤4 junction largest length 1000mm
RATIO RESISTANCE ≤5X10-6 ≤5X10-6



 1.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate 01.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate 11.6*960M 110ppi Pure Nickel Strip Matel Foam for Battery Cathode Substrate 2
