Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr6015
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: USD20-28/kg
Packaging Details: thin wire usually packed on the spool/1.2mm-10mm wire packed in coil
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000Ton/Year
Material: |
Nickel 60%, Chromium 15% |
Surface: |
Bright |
Temper: |
Soft |
Pakage: |
Spool/Coil |
Resistivity: |
1.11 |
Density: |
8.2 |
Sample: |
Available |
Size: |
0.02mm-10mm |
Material: |
Nickel 60%, Chromium 15% |
Surface: |
Bright |
Temper: |
Soft |
Pakage: |
Spool/Coil |
Resistivity: |
1.11 |
Density: |
8.2 |
Sample: |
Available |
Size: |
0.02mm-10mm |

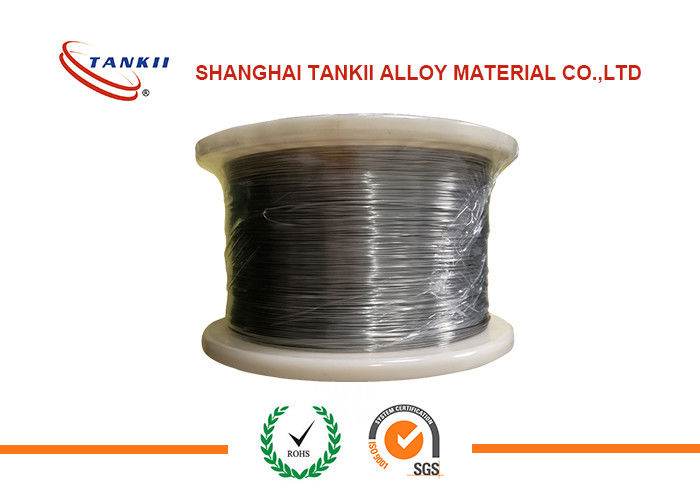

0.1mm NiCr Alloy Nichrome NiCr6015 Wire for Electric Heating Elements
1.About Nichrome NiCr6015 wire:
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3.Chemical Composition of NiCr6015:
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
Max | |||||||||
0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4.Typical Mechanical properties of Nicr6015:
Yield strength | Tensile Strength | Elongation |
Mpa | Mpa | % |
370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity:
20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
6.Series of Nichrome Wire:
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, Cr25Ni20, pure nickel Ni200 and Ni201
7.All shape of Nichrome:
Wire, ribbon( flat wire ), strip, bar, plate, tube
8.size of NiCr6015:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
9.Main Advantage and Application:
(1). Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.
(2).NiCr6015 widely used in househole, such as: grills, toaster ovens, air heater, clothes dryer, hand heaters and so on.
NiCr6015 widely used in the heating element which made for industrial heating furnace, such as tempering furnace and drying furnace.
10. Our service:
(1) We can provide a free sample for testing but the freight at yours.
(2) Mill test certificate will be provided after production, If it is necessary.
(3) Good packing methods to keep goods no damage during delivery
(4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
11.Packing & Shipping:
Wire packing:
(1)In spool--when the diameter≤1.2mm
(2)In coil--when the diameter>1.2mm
(3)All the wire packd into cartons→cartons packed into plywood pallet OR wooden case
Regarding the size of the spool,please refer to the picture:
Delivery-When the pre-payment is confirmed:
(1)The requested products are in stock,we will send them out within 3 day
(2)The raw material is in stock,we will send out the products within 10 days.
(3)When we need to re-melt the material,it will take 20-25 days to send the products/
Shipping-By sea,by air,by express or other ways:
By sea | By air | By express | |
Japan,Korea,Taiwan | 2-3 days | ||
Southeast Asia | 7-9 days | 2-3 days | |
The Middle East | 20-25 days | 3-5 days | 3-5 days |
India-Pakistan | 15-22 days | 3-5 days | 3-5 days |
Mediterranean | 28-30 days | 3-5 days | 3-5 days |
Europe | 28-35 days | 3-5 days | 3-5 days |
Africa | 40-45 days | about 7 days | about 7 days |
Australia | 18-32 days | 3-5 days | 3-5 days |
West of America | 12-15 days | 3-5 days | 3-5 days |
East of America | 25-35 days | 3-5 days | 3-5 days |
Middle and South America | 30-55 days | about 7 days | about 7 days |
