Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO,ROHS
Model Number: N200 N201
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Packaging Details: in roll, wooden case outside
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000/Month
Type: |
Nickel Strip |
Grade: |
Pure Nickel 99.9% |
Powder Or Not:: |
Not Powder |
Application: |
Batteries, Industries Of Electric Tool And Special Lights |
Width: |
Up To 350mm Wide |
Thickness: |
0.002 To 2.50 Mm |
Type: |
Nickel Strip |
Grade: |
Pure Nickel 99.9% |
Powder Or Not:: |
Not Powder |
Application: |
Batteries, Industries Of Electric Tool And Special Lights |
Width: |
Up To 350mm Wide |
Thickness: |
0.002 To 2.50 Mm |

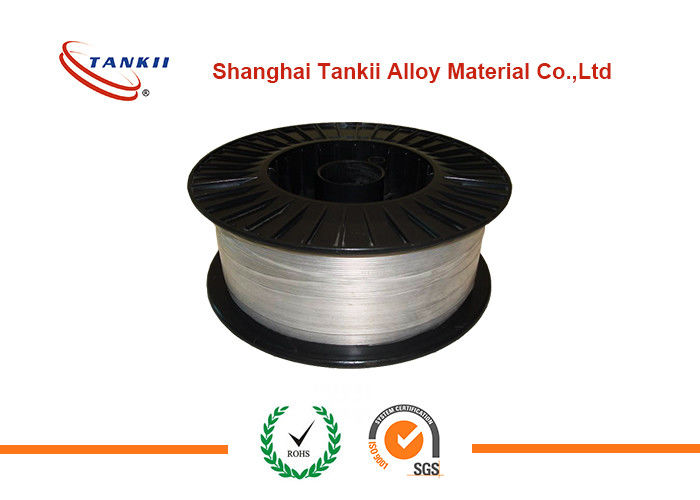

N200 N201 0.8mm Nickel Silver wire pure nickel wire for Nickel Hydride Battery
Product Description
Nickel 201 (UNS N02201/W.Nr. 2.4061 and 2.4068) is the low-carbon version of Nickel 200. Typical applications are caustic evaporators, combustion boats, plater bars, and electronic components. Nickel 201, because of its low base hardness and lower work-hardening rate, is particularly suited for spinning and cold forming. It is preferred to Nickel 200 for applications involving exposure to temperatures above 600°F (315°C).
.
|
Strip Size |
Thickness – 0.0002mm above, Width- 0.2mm above |
Chemical Composition of Pure Nickel Strip:
|
Nickel |
99.6% |
|
Copper |
0.25% |
|
Iron |
0.40% |
|
Manganese |
0.35% |
|
Carbon |
0.15% |
|
Silicon |
0.35% |
|
Sulfur |
0.01% |
Physical properties of Pure Nickel Strip:
|
Density, g/cm3 |
8.89 |
|
Melting Range, °C |
1435-1446 |
|
Specific Heat, J/kg•°C |
456 |
|
Curie Temperature, °C |
360 |
Properties of Pure Nickel Strip:
Applications of Nickel 200 Strip:
Nickel Strip Product Precision
|
Thickness |
Thickness allowance |
Burr height |
Width scope and tolerance |
|||||
|
2≤w<10 |
10≤w<50 |
50≤w<100 |
100≤w<150 |
150≤w<200 |
200≤w |
|||
|
0.02≤t<0.05 |
±0.003 |
≤0.005 |
± |
±0.10 |
±0.15 |
±0.20 |
±0.30 |
±0.50 |
|
0.05≤t<0.1 |
±0.005 |
≤0.01 |
||||||
|
0.1≤t<0.2 |
±0.008 |
≤0.015 |
||||||
|
0.2≤t<0.3 |
±0.012 |
≤0.02 |
||||||
|
0.3≤t<0.4 |
±0.015 |
≤0.03 |
± |
±0.15 |
±0.25 |
±0.50 |
±0.80 |
±1.00 |
|
0.4≤t<0.6 |
±0.025 |
≤0.05 |
||||||
|
0.6≤t<0.8 |
±0.030 |
≤0.06 |
± |
±0.40 |
±0.50 |
±0.50 |
±0.80 |
±1.00 |
|
0.8≤t<1.0 |
±0.040 |
|||||||
|
1.0≤t<1.2 |
±0.050 |
≤0.08 |
± |
±0.50 |
±0.80 |
±1.00 |
±1.00 |
±1.50 |
|
1.2≤t<1.4 |
±0.060 |
|||||||
|
1.4≤t<1.7 |
±0.070 |
≤0.10 |
||||||
|
1.7≤t<2.0 |
±0.080 |
|||||||
