Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiAl95/5
Payment & Shipping Terms
Minimum Order Quantity: 15KG
Price: Negotiation
Packaging Details: On Spool
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Size: |
1.6mm,1.8mm,2.0mm,2.2mm |
Chemical Composition: |
Ni95Al5 |
Density: |
8.2g/cm3 |
Size: |
1.6mm,1.8mm,2.0mm,2.2mm |
Chemical Composition: |
Ni95Al5 |
Density: |
8.2g/cm3 |
NiAl95/5

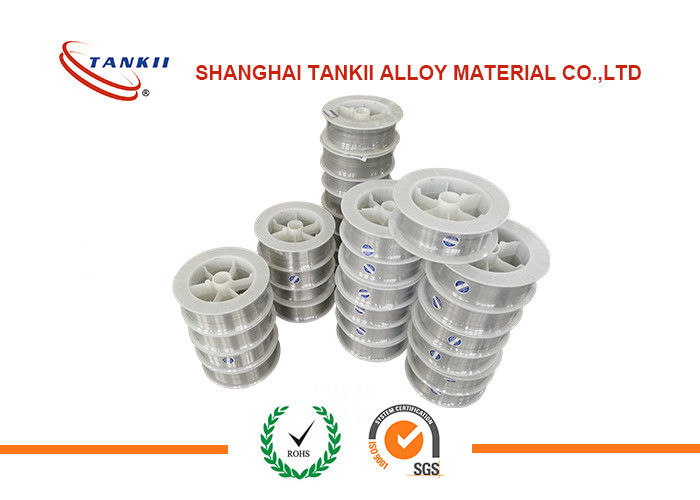

NiAl 95/5 Aolly 1.6mm 2.0mm 2.2mm Thermal Spray Wire Ni Al Spray Wire
High quality thermal spray wire Ni95Al5
(Common name:NiAl 95-5, Nickel Aluminum 95/5,N9,Ni95Al5,95/5 Nickel Aluminum,F-80NA Nickel Aluminium 95/5)
This alloy is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.
Typical applications for NiAl 95/5 are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.
| Al | Mn | Fe | Ni | Si | Cu | C | Ti |
| 4.5-5.5 | Max 0.3 | Max 0.3 | Bal. | Max 0.5 | Max 0.08 | Max 0.005 | Max 0.3 |
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(mm2/m) | 0.42 |
Typical Deposit Characteristics
| Coating Harness | Coating Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| 23-25 HRC | 65-68Mpa | 10 lbs /hr/100A | 60-70% | Good |
| Specific heat capacity |
| Melting point (ºC) | 1010 |
| Max continuous operating temperature in air (ºC) | 800 |
| Magnetic properties | non-magnetic |
