Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS

Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS
Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS

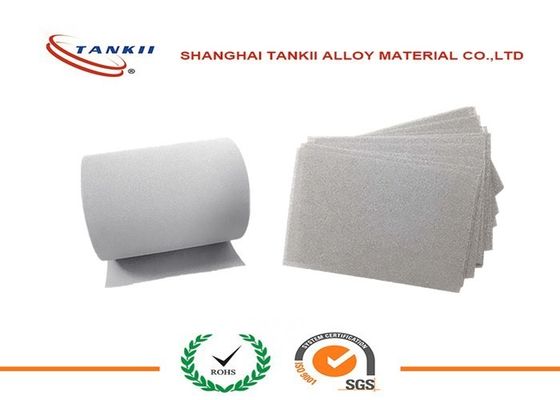

Large Image :  Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS

Product Details:
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: ISO:9001 & RoHS
Model Number: Nickel 200
Payment & Shipping Terms:
Minimum Order Quantity: 50 m²
Price: USD + 8 - 20 + kilograms
Packaging Details: We offer varied packaging in the form of coils, spools and cut-lengths, then will put them in compressed ply-wooden case or carton, and then pallet. Special packaging to individual requirements can also be provided on requests
Delivery Time: 5 - 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 + Tons + per month

Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS

Description
Color: Sliver White Sample: Free
Surface: Bright State: Soft , Hard
OEM: Yes Nickel: 99.6%
Density: Density 8.4g / Cm³
High Light:

nickel alloys

,

nichrome wire



Product Description
NICKEL FOAM (Ni)
Foam Nickel is a low density permeable material that has a very high porosity with typically 75-95% of the volume consisting of void spaces. Nickel Foam has a wide variety of applications in heat exchangers, energy absorption, flow diffusion, lightweight optics and is used as a filter material for gas and liquid.
Tankii supplies high quality nickel foam for rechargeable battery applications. Our plates have proven to be excellent electrode substrates for Ni-Cd and Ni-H rechargeable batteries and hydrogen storage units.
Nickel Foam for Battery Cathode Substrate (1000mm length x 300mm width x 1.6mm thickness)
Specifications:


Pecifications
Ni Foam product is composed by pure Nickel.
Thickness: 0.3-20mm
Density: 280g/m2~4000g/m2
PPI: 15~120
Width:50~960mm

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness. Usefulness: (Various shapes can be produced)
1. Used as the base plate of positive electrode in Ni-MH / Ni-Cd battery.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
SPECIFICATION
ITEM CONTINUOUS NICKEL FOAM THICK NICKEL FOAM
THICKNESS (0.3~2.5)±0.05mm (2.6~12)±0.05mm
PPI 90~120 20~80
SURFACE DENSITY (280~1800)±30g/M2 (400~3000)±30g/M2
TENSILE STRENGTH (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2
ELONGATION (VERTICAL)≥5% (HORIZONTAL)≥12%
POROSITY ≥96% ≥96%
WIDTH (50~960)±0.5mm (50~960)±0.5mm
SPLICE FREQUENCY 200m≤4 junction largest length 1000mm
RATIO RESISTANCE ≤5X10-6 ≤5X10-6
item name nickel plate
Standard ASTM B162
Material NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
type plate sheet
Specification Length 50-2000mm width 50-1200mm
thickness 0.5-50mm
Packing Export wooden case
MOQ 10pcs
Lead time Within 7~10 work days after deposit
Payment T/T, Western Union,Money Gram, paypal , Trade Assurance
use electric apparatus and chemical machinery
Recording media, Graphic display, Glass coating, Solar Photovoltaic Application.
Loading port Shanghai, qingdao, Shenzhen
Density 8.4g / Cm³ Pure Nickel / Foam Nickel 200 Porous For Batteries RoHS 0
chemical composition
Material Ni+Co Fe C Mn Si Cu S
Ni200 >99.5 0.4 0.15 0.35 0.35 0.25 0.01
Ni201 >99.9 0.4 0.02 0.35 0.32 0.25 0.01
