0.5 * 70mm Nickel Alloy Wire / Strip / Pipe NiCr 60/23 Strip Inconel 601 Strip

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001/SGS

Model Number: Ni60Cr23/Inconel601/601H

Payment & Shipping Terms

Minimum Order Quantity: 50kgs

Price: usd 32-35/kg

Packaging Details: wooden case

Delivery Time: 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2000 ton/year

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Material:
Ni60Cr23
Size:
0.5*70mm
Shape:
Strip/sheet/tape
Grade:
Ni60Cr23/Inconel601/UNS N06601/610H
MOQ:
30kg
Density:
8.1g/cm3
Melting Range:
1320-1370 °C
Tensile Strength:
650 Rm N/mm2
Yield Strength:
300 RP0.2N/mm2
Material:
Ni60Cr23
Size:
0.5*70mm
Shape:
Strip/sheet/tape
Grade:
Ni60Cr23/Inconel601/UNS N06601/610H
MOQ:
30kg
Density:
8.1g/cm3
Melting Range:
1320-1370 °C
Tensile Strength:
650 Rm N/mm2
Yield Strength:
300 RP0.2N/mm2
Description
0.5 * 70mm Nickel Alloy Wire / Strip / Pipe NiCr 60/23 Strip Inconel 601 Strip

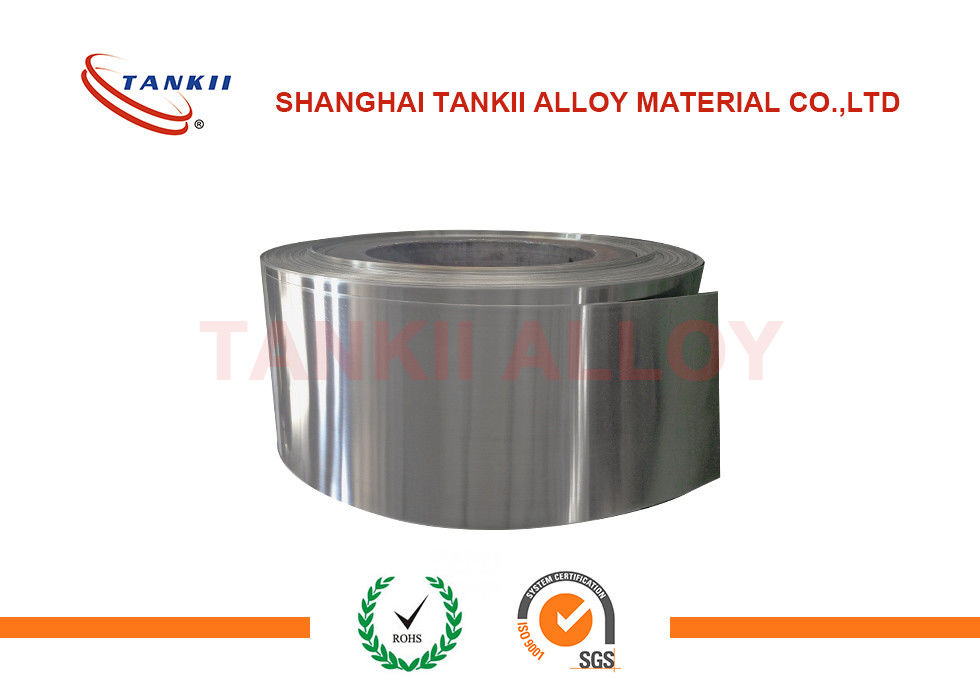

Inconel 601/Ni60Cr23 Strip/Sheet/Tape


Product Overview of Ni60Cr23:
TANKII Brand Inconel601 alloy have excellent oxidation resistance at high temperature, good carbonization resistance, good resistance to oxidation sulfur atmosphere, and has good mechanical properties at room and high temperature as good resistance to stress corrosion cracking performance due to control the carbon content and grain size, Inconel 601 had a higher creep rupture strength, therefore it is recommended to use in the field of above 500 ºC.
You can find below Characters of Ni60Cr23:
(1) Have excellent oxidation resistance at high temperature;
(2) Good carbonization resistance;
(3) Can be a very good resistance to oxidation sulfur atmosphere;
(4) H
as good mechanical properties at room and high temperature;
(5)
Good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 has high creep rupture strength, therefore it is recommended to use in the field of above 500 ºC;

Chemical Compositon of Ni60Cr23 Wt.%:

Inconel 601 (UNS N06601/W.Nr.2.4851)
% Ni Cr Fe C Mn Si Cu Al P S
Min 58 21
Max 63 25 Bal. 0.1 1.5 0.5 1 1.7 0.02 0.015


Inconel 601's Min Value of Mechanical Properties at normal temperature:

Typical Mechanical Properties Tensile Srength Rm N/mm2 Yield Strength Rp0.2N/mm2 Elongation A5 % Hardness HB
annealed treatment 650 300 30 -
solution treatment 600 240 30 220

0.5 * 70mm Nickel Alloy Wire / Strip / Pipe NiCr 60/23 Strip Inconel 601 Strip 0



Chemical Composition and Main Properties of Nichrome
Properties Grade NiCr 80/20 NiCr 70/30 NiCr 60/15 NiCr 35/20 NiCr 30/20
Main Chemical Composition Ni Balance Balance 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤ 1.0 ≤ 1.0 Balance Balance Balance
Max Continuous Service Temperature(oC) 1200 1250 1150 1100 1100
Resisivity 20oC (Ω mm2/m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal Conductivity(KJ/m@ h@ oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal Expansion(α × 10-6/oC) 18 17 17 19 19
Melting Point( oC) 1400 1380 1390 1390 1390
Elongation(%) > 20 > 20 > 20 > 20 > 20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic Weak magnetic Weak ma

0.5 * 70mm Nickel Alloy Wire / Strip / Pipe NiCr 60/23 Strip Inconel 601 Strip 1

More detail information, please feel free contact us!
