Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001/SGS
Model Number: Ni60Cr23/Inconel601/601H
Payment & Shipping Terms
Minimum Order Quantity: 50kgs
Price: usd 32-35/kg
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 ton/year
Material: |
Ni60Cr23 |
Size: |
0.5*70mm |
Shape: |

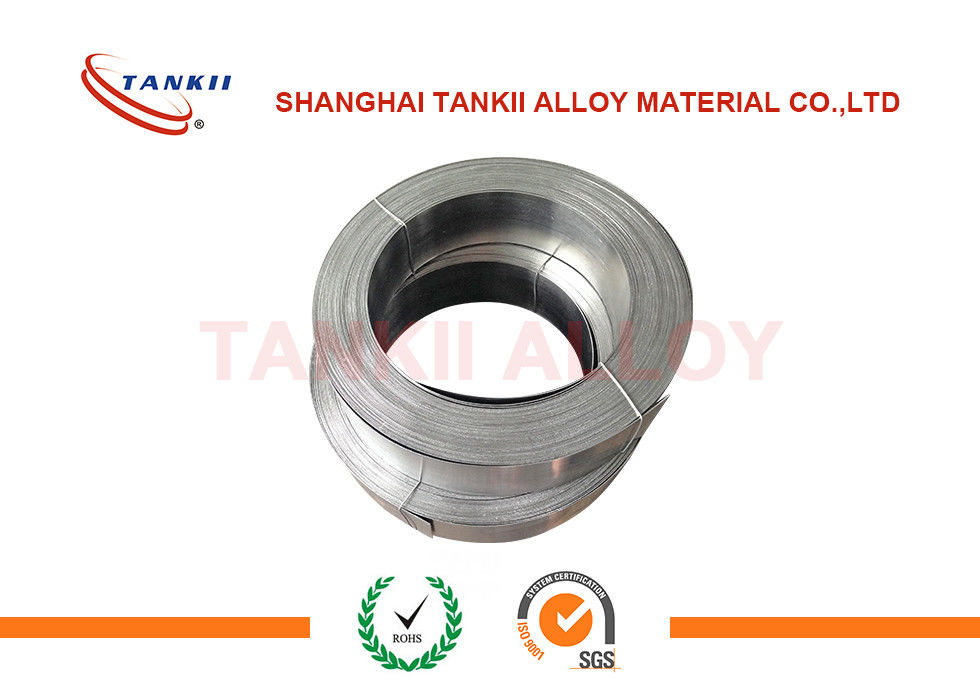

Strip/sheet/tape |
Grade: |
Ni60Cr23/Inconel601/UNS N06601/610H |
MOQ: |
30kg |
Density: |
8.1g/cm3 |
Melting Range: |
1320-1370 °C |
Elongation: |
30 |
Hardness(HB): |
200 |
Material: |
Ni60Cr23 |
Size: |
0.5*70mm |
Shape: |
Strip/sheet/tape |
Grade: |
Ni60Cr23/Inconel601/UNS N06601/610H |
MOQ: |
30kg |
Density: |
8.1g/cm3 |
Melting Range: |
1320-1370 °C |
Elongation: |
30 |
Hardness(HB): |
200 |
You can find below Characters of Ni60Cr23:
(1) Have excellent oxidation resistance at high temperature;
(2) Good carbonization resistance;
(3) Can be a very good resistance to oxidation sulfur atmosphere;
(4) Has good mechanical properties at room and high temperature;
(5) Good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 has high creep rupture strength, therefore it is recommended to use in the field of above 500 ºC;
Application Field of Ni60Cr23:
(1) Tray, basket and fixture used in heat treatment factories;
(2) Mesh belt used in steel wire annealing and radiant tube, high-speed gas burner and furnace;
(3) Components of exhaust system;
(4) Combustion chamber of solid waste incinerator;
(5) Components of pipe supports and ash handling;
(6) Components of exhaust detoxification system;
(7) Oxygen re-heater;
Chemical Compositon of Ni60Cr23 Wt.%:
| Inconel 601 (UNS N06601/W.Nr.2.4851) | ||||||||||||||
| % | Ni | Cr | Fe | C | Mn | Si | Cu | Al | P | S | ||||
| Min | 58 | 21 | ||||||||||||
| Max | 63 | 25 | Bal. | 0.1 | 1.5 | 0.5 | 1 | 1.7 | 0.02 | 0.015 | ||||
Inconel 601's Min Value of Mechanical Properties at normal temperature:
| Typical Mechanical Properties | Tensile Srength Rm N/mm2 | Yield Strength Rp0.2N/mm2 | Elongation A5 % | Hardness HB |
| annealed treatment | 650 | 300 | 30 | - |
| solution treatment | 600 | 240 | 30 | 220 |
Chemical Composition and Main Properties of Nichrome |
||||||
| Properties Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature(oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak ma | |
More detail information, please feel free contact us!
