Product Details
Place of Origin: china
Brand Name: tankii
Certification: IS9001
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: dollar + 30 + kg
Packaging Details: wooden case
Delivery Time: 6-10day
Payment Terms: L/C, T/T, D/A
Supply Ability: 100 + kg + day
Use: |
Resistance Materials |
Highest Temperature: |
1200℃ |
Resistivity: |
1.09 |
Density: |
8.4 |
Size: |
0.3*5mm |
State: |
Soft |
Use: |
Resistance Materials |
Highest Temperature: |
1200℃ |
Resistivity: |
1.09 |
Density: |
8.4 |
Size: |
0.3*5mm |
State: |
Soft |

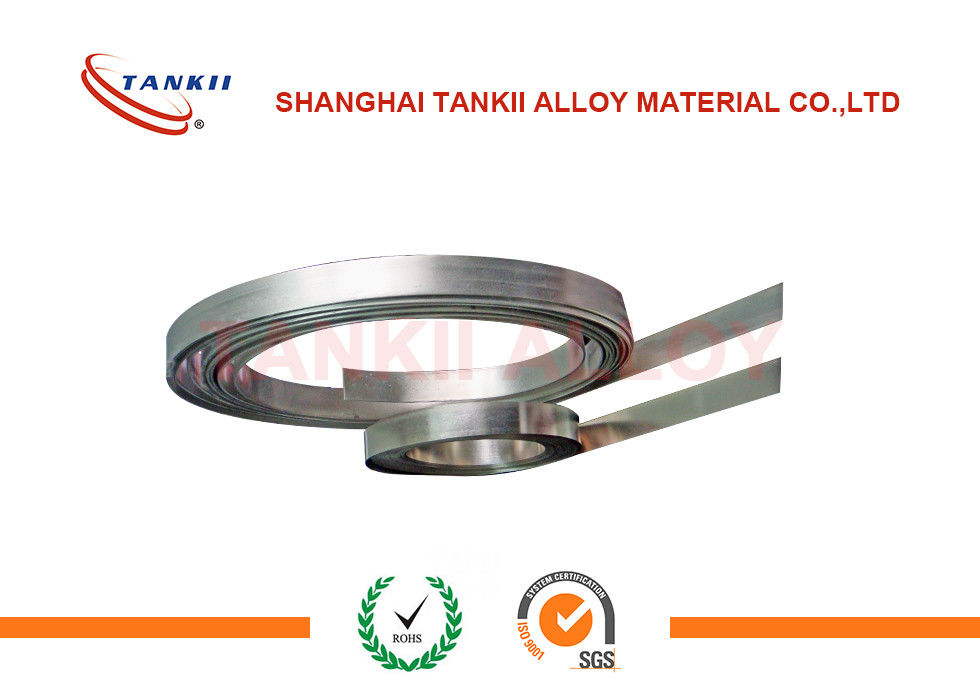

nichrome Ni80Cr20 resistance heat ribbon strip
Introduction
WISDOM Ni80Cr20 has outstanding resistance to corrosion and has excellent performance.for high temperature operation. It is suitable for high temperature heating system and resistors. WISDOM Ni80Cr20 has good ductility after use and excellent weldability.
Common Names: Cr20Ni80, Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr80,Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8,Alloy A, MWS-650, Stablohm 650
Chemical Composition
| C | P | S | Mn | Si | Cr | Ni | Al | Fe |
| ≤0.08 | ≤0.02 | ≤0.015 | ≤0.6 | 0.75~1.6 | 20~23 | Bal. | ≤0.5 | ≤1.0 |
Characterisitic
| Max. continuous service Temp. | 1200ºC | Approx. melting point | 1400ºC |
| Resistivity at 20ºC | 1.09±0.05 μΩ·m | Elongation | ≥20% |
| Density | 8.40 g/cm3 | Accelerated life | ≥80h/1200ºC |
| Thermal conductivity | 60.3 KJ/m·h·ºC | Micrographic structure | austenite |
| Coefficient of lines expansion | 18.0 α×10-6/ºC | Magnetic properties | nonmagnetic |
| Specific heat | 0.440 J/g·ºC | Forms Available | Wire,ribbon,strip, bar,sheet,pipe |
