Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr 80/20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: usd 25-30/kg
Packaging Details: Plastic Film, Waterproof Paper, Wooden Case
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 ton / year
Material: |
Ni80Cr20 |
Shape: |
Strip |
Application: |
Resistance Strip/ Integrated Circuit Resistor |
Grade: |
NiCr80/20 Strip |
Size: |
Width 1~470mm, Thickness 0.005mm~7mm |
Resistivity: |
1.09+/-0.05 |
Max Continuous Operating Temperature: |
1200 |
Density: |
8.4 |
Thermal Conductivity: |
60.3 |
Melting Point: |
1400 |
Hardness(HV): |
180 |
Tensile Strength: |
750 |
Elongation: |
20 |
Material: |
Ni80Cr20 |
Shape: |
Strip |
Application: |
Resistance Strip/ Integrated Circuit Resistor |
Grade: |
NiCr80/20 Strip |
Size: |
Width 1~470mm, Thickness 0.005mm~7mm |
Resistivity: |
1.09+/-0.05 |
Max Continuous Operating Temperature: |
1200 |
Density: |
8.4 |
Thermal Conductivity: |
60.3 |
Melting Point: |
1400 |
Hardness(HV): |
180 |
Tensile Strength: |
750 |
Elongation: |
20 |

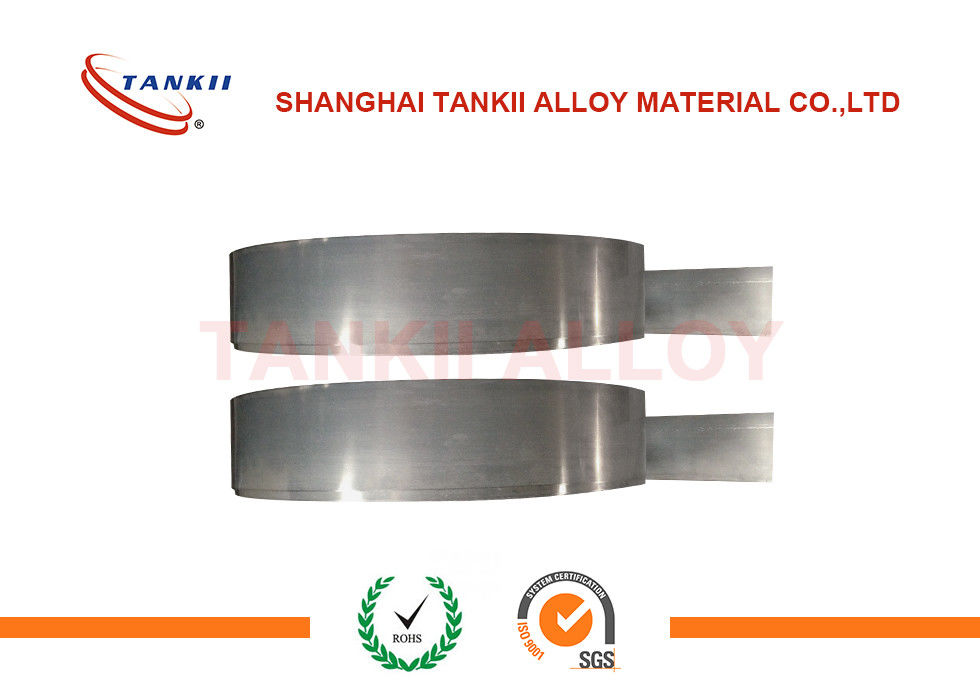

Nickel Chrome Alloy Strip / Nichrome 80/20 strip for Heater
Nichrome Strip:Width 450~0.5mm, thickness 0.01-7mm
Nichrome sheet: cut as your demand
Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe
Nichrome's metallurgical structure confers them a very good plasticity when cold.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:heating elements; Heater;Household appliances;sealer, resistance furnace, resistor
Chemical Composition and Main Properties of Nichrome |
||||||
| Properties Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature(oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak ma | |
Product: Nichrome Strip/Nichrome Tape/Nichrome Sheet/Nichrome Plate
Grade: Ni80Cr20/Resistohm 80/Chromel A
Chemical Composition: Nickel 80%, Chrome 20%
Resistivity: 1.09 ohm mm2/m
Condition: Bright, Annealed, Soft
Surface: BA, 2B, polished
Dimension: Width 1~470mm, Thickness 0.005mm~7mm
We also produce NiCr 60/15, NiCr 38/17, NiCr 70/30, NiCr AA, NiCr 60/23, NiFe80, NiFe50, NiFe42,NiFe36, etc.
Producer: Shanghai Tankii Alloy Material Co., Ltd.
Shanghai Tankii Alloy Material Co., Ltd. is a professional producer of nichrome strip, nichrome sheet, nichrome foil.
Three advantages: Shining Surface, small tolerance, average resistance.
