Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO 9001
Model Number: Inconel 718
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: usd 28.5/kg
Packaging Details: in wooden case
Delivery Time: 15-20 days after payment
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 2000t/year
Material: |
Nickel Alloy |
Size: |
In Customers' Requirement |
Surface: |
Bright |
Material: |
Nickel Alloy |
Size: |
In Customers' Requirement |
Surface: |
Bright |
NiCr Alloy Nickel Alloy Strip/sheet/wire/pipe/tube UNS N07718 Inconel 718
Product Overview of Inconel 718:
Inconel718 precipitation sclerosis type of molybdenum alloy containing niobium, nichrome, under 650 ºC has high strength, good toughness and has good corrosion resistance in high and low temperature environment.Delivery status can be a solid solution treatment or precipitation hardening state.
You can find below Characters of Inconel 718:
(1) good workability, in the state of annealing;
(2) good tensile strength, fatigue strength, creep rupture strength;
(3) when up to 700°C, has good high-temperature strength;
(4) when up to 1000°C, has good oxidation resistance;
(5) At low temperature with excellent mechanical properties;
(6)After the performance of arc welding, no welding crack sensitivity
Application Field of Inconel 718:
(1)steam turbine
(2)liquid fuel rocket
(3)cryogenic engineering
(4)acid environment
(5)nuclear reactor
(6)extrusion die
Chemical Compositon of Inconel 718 Wt.%:
| Inconel 718 (Gh4169/UNS N07718) | ||||||||||||||
| % | Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | S | P | Cu | Al | Ti | B |
| Min | 50 | 17 | Bal. | 2.8 | 4.75 | - | - | - | - | - | 0.20 | 0.65 | - | - |
| Max | 55 | 21 | Bal. | 3.3 | 5.50 | 0.08 | 0.35 | 0.35 | 0.015 | 0.015 | 0.30 | 0.80 | 1.15 | 0.006 |
Inconel 718's Min Value of Mechanical Properties at normal temperature:
| Typical Mechanical Properties | Tensile Srength Rm N/mm2 | Yield Strength Rp0.2N/mm2 | Elongation A5 % | Hardness HB |
| solution treatment | 965 | 550 | 30 | Max 363 |
Close Grade:
GH4169,GH169 (China),
NC19FeNb (France),
NiCr19Fe19Nb5,Mo3 (Germany),
NA 51 (Britain),
Inconel718,UNS NO7718 (USA) ,
NiCr19Nb5Mo3 (ISO)
Below welding material recommended to use in Inconel 718:
GTAW/GMAW
Nicrofer S 5219
W.-Nr. 2.4667
SG-NiCr19NbMoTi
AWS A 5.14 ERNiFeCr-2
BS 2901 Part 5: NA 51

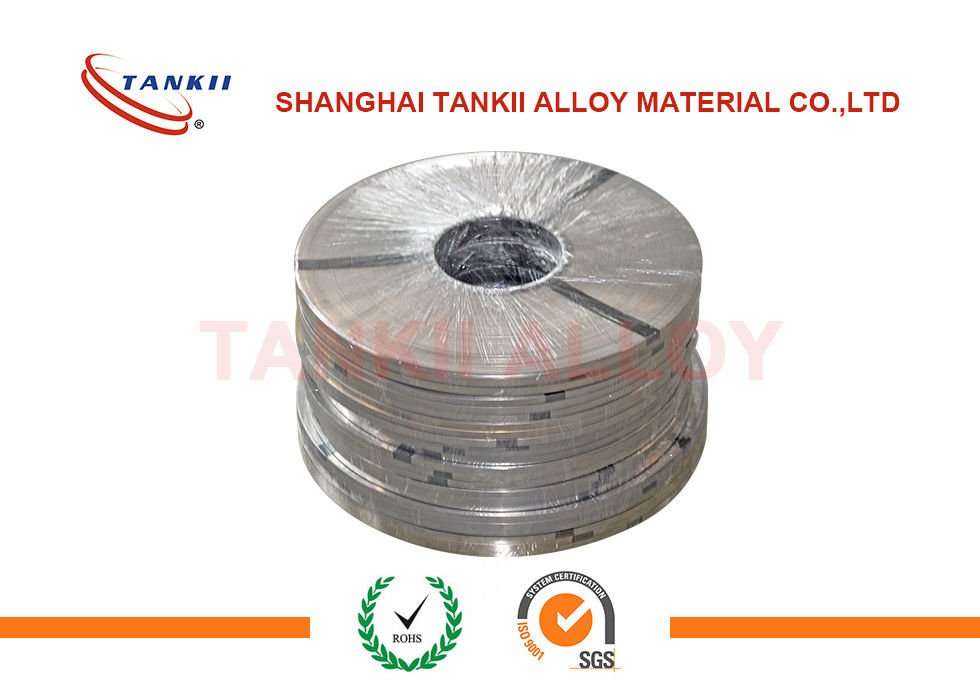

Picture of Inconel 718:
