Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: N4
Payment & Shipping Terms
Minimum Order Quantity: 30kgs
Price: Negotiation
Packaging Details: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 500 tons per month
Material: |
Pure Nickel |
Size: |
1.6mm,2.0mm,3.2mm |
Model: |
N4, Ni201 |
Chemical Composition: |
Nickel 99.9% |
Material: |
Pure Nickel |
Size: |
1.6mm,2.0mm,3.2mm |
Model: |
N4, Ni201 |
Chemical Composition: |
Nickel 99.9% |
N4 wire for Thermal Spray Wire
Descriptions of Pure Nickel Wire
Pure Nickel strip has excellent mechanical property and anti-corrosion property. The alloy is used to make electrical vacuum device, electronic instrument components and anti-corrosion materials for chemical industry.
The nickel wire are made by advanced vacuum melting process and by forging, rolling, annealing and drawing, It is acid resisting and alkali resisting. The products are used in electric apparatus and chemical machinery.
A commercially pure nickel(typically 99.6% nickel), Nickel 201 is essentially the same as nickel 200, but with lower carbon content to prevent embrittlement by inter granular carbon at temperatures over 325°c(600°F), lower carbon content also reduces hardness.
Features
High mechanical properties
High corrosion resistance
High temperature coefficient of electrical resistance
Applications
—For vacuum coating
—For making valves grid, inner components of vacuum valves
—Components insides the electron tubes
—For making lead, supporting wire
—For Electronic components
—For battery production
—Strong base of the filter
—manufacture of connections for heating elements as well as heating spirals in spark-plugs
Chemical composition
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | 99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99.0 | 0.20 | 0.30 | 0.30 | 0.15 | / | 0.01 | / |
0.40
|

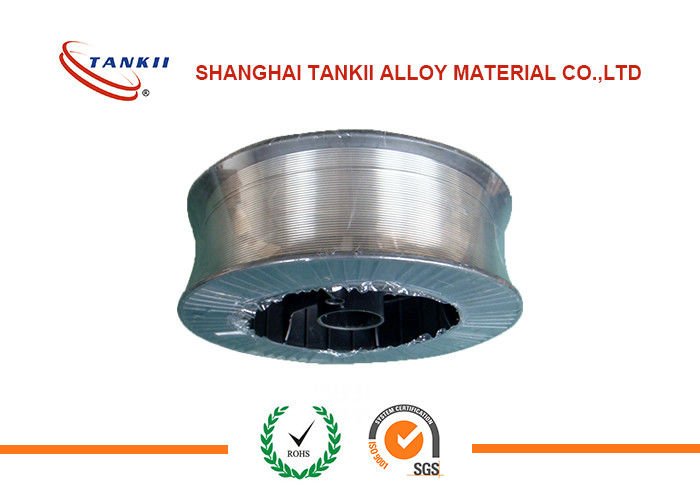

PRODUCT IMAGES
Packaging:Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company,We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
1) We can provide a free sample for testing but the freight at yours.
2) Mill test certificate will be provided after production, If it is necessary.
3) Good packing methods to keep goods no damage during delivery
4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
