Product Details:
|
| Use: | Resistance Materials | Highest Temperature: | 1200℃ |
|---|---|---|---|
| Resistivity: | 1.09 | Density: | 8.4 |
| High Light: | nichrome resistance wire,nichrome wire |
||

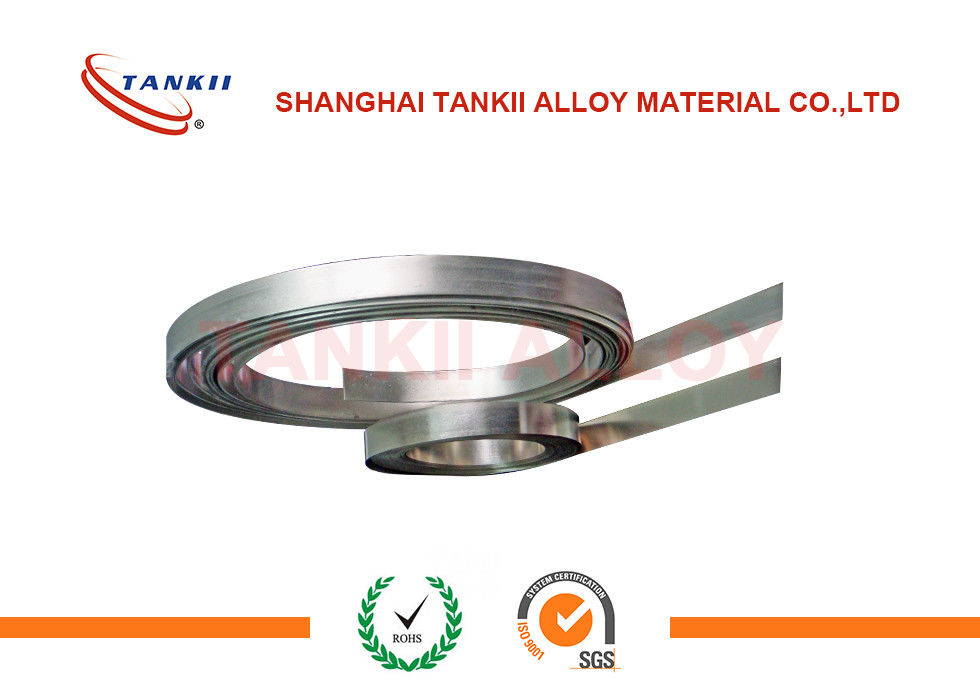

Nickel Chromium Alloy Strip Ni80Cr20 AS Resistance Materials
Nickel-chromium alloy, nickel chromium iron alloy with high resistivity, surface oxidation resistance is good, and have higher strength at high temperature, good processability and weldability, which can be widely used in metallurgy, electrical appliances, machinery manufacturing, etc do resistance material heating elements and electrical industry.
Our company production width of the range 5-300mm thickness scope 0.01-3mm
Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance
| brand | Cr | Ni | Al | Fe | C | P | S | Mn | Si |
| ≤ | |||||||||
| Ni80Cr20 | 20.0~23.0 | Remain | ≤0.5 | ≤1 | 0.08 | 0.02 | 0.15 | 0.60 | 0.75~1.6 |
| brand | highest use temperature/ºC | Melting point/ºC | density (g/cm³) |
resistiv ity/(μΩ·M) |
elonga tion(%) |
Coefficient of thermal conductivity | Linear expansion coefficient of |
micro structure |
magnetic |
| Ni80Cr20 | 1200 | 1400 | 8.40 | 1.09 | ≥20 | 60.3 | 18.0 |
auste nitic |
no magnetic |
Mechanical properties
| brand | Tensile strength/Mpa |
| Ni80Cr20 | 637~786 |
Use time test
| brand | Test temperature/ºC | time/h |
| Ni80Cr20 | 1200 | 80 |
