10mm Super Pure Foam Alloy Plate / Sheet Ni200 Ni201 Ni205 Ni270 NiCr8020 NiCr7030 NiCr6015

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: ISO:9001 & RoHS

Model Number: Nickel 200

Payment & Shipping Terms

Minimum Order Quantity: 50 m²

Price: USD + 8 - 20 + kilograms

Packaging Details: We offer varied packaging in the form of coils, spools and cut-lengths, then will put them in compressed ply-wooden case or carton, and then pallet. Special packaging to individual requirements can also be provided on requests

Delivery Time: 5 - 10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 + Tons + per month

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Color:
Sliver White
Sample:
Free
Surface:
Bright
State:
Soft , Hard
OEM:
Yes
Nickel:
99.6%
Density:
8.4g / Cm³
Color:
Sliver White
Sample:
Free
Surface:
Bright
State:
Soft , Hard
OEM:
Yes
Nickel:
99.6%
Density:
8.4g / Cm³
Description
10mm Super Pure Foam Alloy Plate / Sheet Ni200 Ni201 Ni205 Ni270 NiCr8020 NiCr7030 NiCr6015

10mm Super Pure Foam Alloy Plate / Sheet Ni200 Ni201 Ni205 Ni270 NiCr8020 NiCr7030 NiCr6015

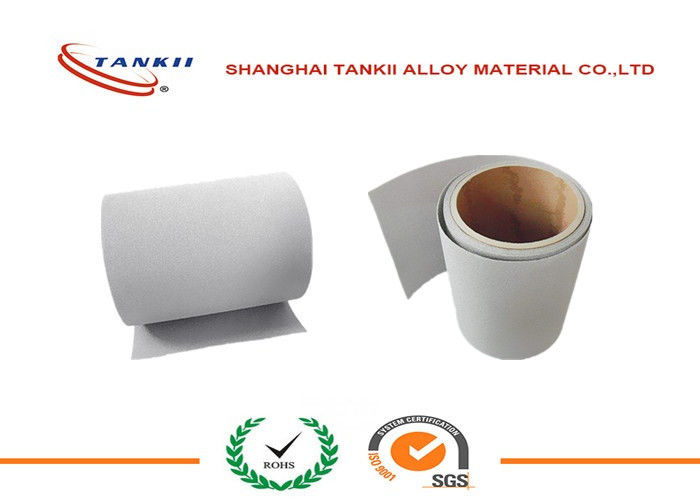

Porous Nickel Foam



(1) Specification:

SPECIFICATION
ITEM CONTINUOUS NICKEL FOAM THICK NICKEL FOAM
THICKNESS (0.3~2.5)±0.05mm (2.6~12)±0.05mm
PPI 60~120 20~80
SURFACE DENSITY (280~1800)±30g/m2 (400~3000)±30g/m2
TENSILE STRENGTH (VERTICAL)≥130n/cm2(HORIZONTAL)≥100n/cm2
ELONGATION (VERTICAL)≥5% (HORIZONTAL)≥12%
POROSITY ≥96% ≥96%
WIDTH (50~960)±0.5mm (50~960)±0.5mm
SPLICE FREQUENCY 200m≤4 junction largest length 1000mm
RATIO RESISTANCE ≤5X10-6 ≤5X10-6



(2) Application:



Application of Nickel Foam



  • Thermal management and heat transfer
  • Electrochemistry and catalysts
  • Water and air purification/filtration
  • Biomedical implants
  • Flow control devices
  • Acoustic

10mm Super Pure Foam Alloy Plate / Sheet Ni200 Ni201 Ni205 Ni270 NiCr8020 NiCr7030 NiCr6015 010mm Super Pure Foam Alloy Plate / Sheet Ni200 Ni201 Ni205 Ni270 NiCr8020 NiCr7030 NiCr6015 1

There are also plenty of flieds of applications for open-cell metal foams, including:



  • Metal Foam can significantly increase specific surface area and repetability, while maintaining the lowest production costs
  • Metal foam wicking structure for cylindrical, flat, and loop heat pipes that perform in any orientation
  • Cold plates with a metal foam core for electronics cooling without the high cost of micromatching
  • High surface area boiling / evaporator plates for increased critical heat fluxes
  • High surface area porous electrodes to increase electrochemical reaction efficiency



Shanghai Tankii Alloy Material Co., Ltd.specialized in production of pure nickel Foam ,Nickel Alloy Foamand other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
