Product Details:
|
| Color: | Sliver White | Sample: | Free |
|---|---|---|---|
| Purity: | 99.9% | Density: | 8.4g / Cm³ |
| Surface: | Bright | State: | Soft , Hard |
| OEM: | Yes | ||
| High Light: | electrical heating wire,high temperature wire |
||

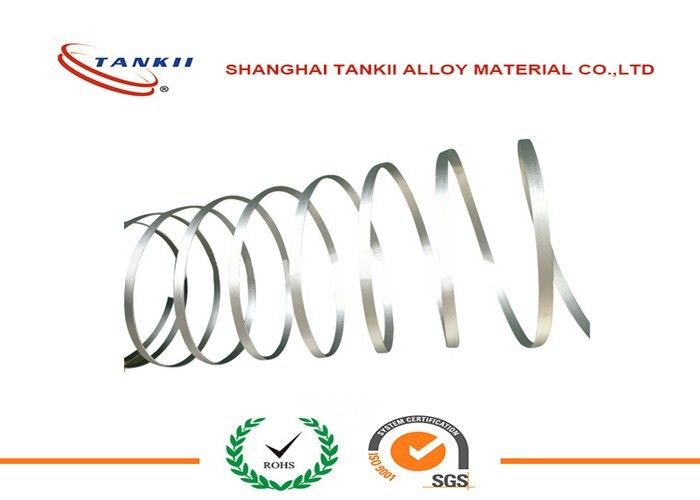

Sliver White Pure Nickel 201 Ribbon UNS NO2200 Flat FeCrAl Alloy Wire / Ribbon / strip / Coil
Pure Nickel 200 ribbon UNS NO2200 flat Wire for lamp and chemical machinery
Nickel 200(UNS NO2200)&Nickel 201(UNS NO2201)
Nickel 200 and Nickel 201 are solid solution strengthened,commercially pure wrought material with good mechanical properties over a wide range of temperature and excellent resistance to many corrosives,in particular hydroxides.Nickel 201 was a modification of 200 to control carbon(0.02max) which keeps it from it being embrittled by intergranular precipitates at temperature of 600°Fto 1400°F in many processes.
Nickel 200$201 Application
Physical properties:
| Grade | Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C |
13.1µm/m °C (20-100°C) |
82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
Chemical Composition:
| Ni | |||||||||||||||||||
| Purity | Cu | Si | Mn | C | Mg | S | P | Fe | Pb | Bi | As | Sb | Zn | Cd | Sn | Impurity | |||
| 201 | Min | 99.90% | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | |
| Max | _ | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 | 0.001 | 0.001 | 0.001 | 0.001 | 0.005 | 0.001 | 0.001 | 0.1 | ||
| 200 | Min | 99.60% | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | _ | |
| Max | _ | 0.10 | 0.10 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 | 0.002 | 0.002 | 0.002 | |||||||
Application where Nickel 200-201can be uesd include chemical processing and storage,synthetic fiber production,and processes where solium hydroxide and fluorine is uesd.Other applications include aerospace and defense as well as food processing.Nickel 200-201 has exceptional resistances to caustic alkalies at various temperature and concentrations.
Product item size
| Item | Size |
| Plate/Sheet | 0.5~60.0mm(THK)*2000mm(WIDTH)*6000mm(LENGTH) |
| Bar ( Round) | Φ5.5~250mm |
| Bar (Square) | 40~240mm*40~240mm |
| Strip | 0.05~3.0mm(THK)*≤420mm(WIDTH) |
| Seamless Pipe | 0.2mm~508mm(OD)*0.5mm~18mm(WT) |
| Welded Tube | 0.5mm~120mm(OD)*0.05mm~10mm(WT) |
| Wire |
Φ0.1mm~18mm |
Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Nickel Alloy, Iron Chromium Aluminum Alloy, Copper Alloy, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
