Product Details
Place of Origin: Shanghai，china
Brand Name: TANKII
Certification: ISO：9001 RoHS
Model Number: Monel 400 K500 600
Payment & Shipping Terms
Minimum Order Quantity: 100Kilograms
Price: USD + 10 - 60 + kilograms
Packaging Details: film protected, wooden cases, standard seaworthy package or as buyer's requirement
Delivery Time: 30 Work days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 + Tons + per month
Type: |
Nickel Alloy Pipe |
Application: |
Industrial |
Standard: |
ASTM/GB/JIS/DIN |
Ni%: |
63Min |
Color: |
Bright, Oxidized |
Type: |
Nickel Alloy Pipe |
Application: |
Industrial |
Standard: |
ASTM/GB/JIS/DIN |
Ni%: |
63Min |
Color: |
Bright, Oxidized |

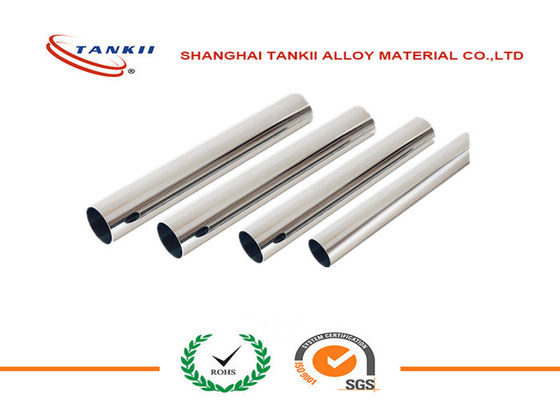

Inconel 600 / 601 / 625 / 690 / Nickel Alloy Bar / Rod / Seamless Pipe / Tube Monel 400 Monel K500
| Elements | Ni | Cu | Fe | C | Mn | Si | S |
| % | 66.5 | 31.5 | 1.3 | 0.15 | 0.25 |
Density: 8.83 g / cm3
Rigidity: HB160-280
Melting point: 1300-1390 ℃
Tensile strength: 480 Rm N / mm2
Yield strength: 170 RP0.2N / mm2
Elongation: 35 A5%
National standards:
MONEL400,ASTM B127,ASME SB-127,AMS 4554,JIS NW4400
US UNS: N04400
German DIN: NiCu30Fe W-Nr: 2.4360
Chinese GB / T: MCu-28-1.5-1.8
British BS: NA 12
Chemical Composition: 65Ni-32Cu-1Fe-0.1C

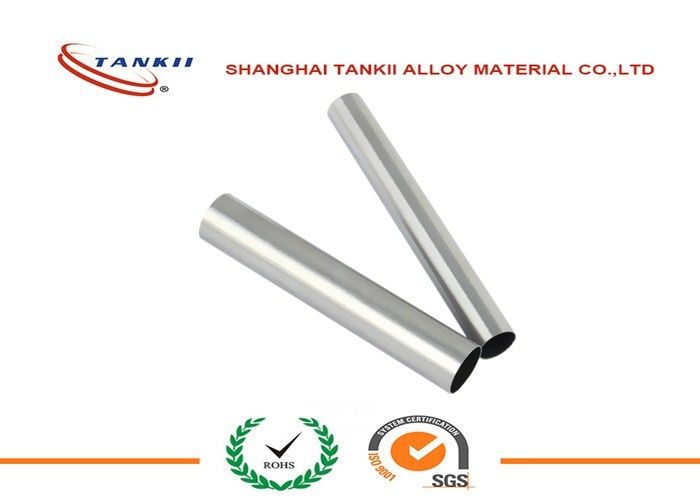

Description of monel k-500 seamless steel pipe tube:
| Production | seamless steel pipe |
| Standard | A106 A53 A213 A192 A179 A335 |
| Out Diameter | 1/2"~10",20mm~273mm |
| Wall Thickness | 1.0mm~12mm of Steel Pipe seamless |
| Material |
ASTM A106 GRB/ A53 GRB/ API 5L S304 S316 S310 |
| Length | 12m,11.8m,6m,5.8m,or as customers required |
| Surface treatment | varnish coating or polished |
| Technique | Seamless |
| Usage |
1. Low and middle pressure fluid transportation pipeline 2. Casing Tube 3. Boiler Pipe 4. Petroleunm and natural gas industry 5. Chemistry industry 6. Electric industry |
| Package |
1. Bundle packing. Steel Pipe seamless 2. Bevelled end or plain end or warnished as per buyer's required. 3. Marking: as per customer's requests. 4. Painting varnish coating on the pipe. Steel Pipe seamless 5. Plastic caps at ends. |
| Supply |
1. seamless steel pipe 2. ERW steel pipe 3. steel casing 4. tubing Steel Pipe seamless 5. hot-rolled steel pipe 6. spiral steel pipe 7. hot-galvanized steel pipe |
| Min Order Quantity | 10t |
| Payment terms | L/C, T/T, Western Union,etc. |
Characteristics of Monel K500 Pipe:
1 . Resistant to seawater and steam at high temperatures
2 . Excellent resistance to rapidly flowing brackish water or seawater
3 . Excellent resistance to stress corrosion cracking in most freshwaters
4 . Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
5 . Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and
concentrations, but is seldom the material of choice for these acids
6 . Excellent resistance to neutral and alkaline salt
7 . Resistance to chloride induced stress corrosion cracking
8 . Good mechanical properties from sub-zero temperatures up to 1020℃
9 . High resistance to alkalis
Monel K500 Application field:
Monel 500 alloy is a multi-purpose material in many industrial applications:
1 . Seamless water pipe in the power factory
2 . Sea-water exchanger and evaporator
3 . Sulfuric acid and hydrochloric acid environment
4 . Crude distillation
5 . Sea-water in the use of equipment and propeller shaft
6 . Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7 . Manufacturing hydrochloric acid equipment used in the production of pump and valve.
Description
| Item Name | Inconel 600 Incoloy 800 nickel pipe and nickel tube |
|
Grade |
Incoloy 800 / 800H / 800HT Inconel 600 / 601 / 625 / 690 / 718 Monel 400 / 500 / k-500 NI200, NI201, N4, N5, N6, N7, N8
|
| Standard | ASTM B161 ASTM B163 |
|
Dimension |
OD:10-320mm ID: 0.5-10mm Length: 100-18000mm Also can be made as required
|
|
Inspection Equipment |
Nondestructive Tester; UT Testing Detector; Tensile Tester Digital Ultrasonic Detector; Infrared Tester; HV Hardness Tester |
Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Alloy,Copper Alloy, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
