Product Details:
|
| Type: | Nickel Alloy Pipe | Application: | Industrial |
|---|---|---|---|
| Standard: | ASTM/GB/JIS/DIN | Ni%: | 63Min |
| Color: | Bright, Oxidized | ||
| Highlight: | nickel alloys,nichrome wire |
||
1 / 4'' 1 / 2 '' 1 '' Monel 600 Nicr Alloy Rod Monel 400 Monel K500 ASTM B 165 N04400
| Elements | Ni | Cu | Fe | C | Mn | Si | S |
| % | 66.5 | 31.5 | 1.3 | 0.15 | 0.25 |
Density: 8.83 g / cm3
Rigidity: HB160-280
Melting point: 1300-1390 ℃
Tensile strength: 480 Rm N / mm2
Yield strength: 170 RP0.2N / mm2
Elongation: 35 A5%
National standards:
MONEL400,ASTM B127,ASME SB-127,AMS 4554,JIS NW4400
US UNS: N04400
German DIN: NiCu30Fe W-Nr: 2.4360
Chinese GB / T: MCu-28-1.5-1.8
British BS: NA 12
Chemical Composition: 65Ni-32Cu-1Fe-0.1C

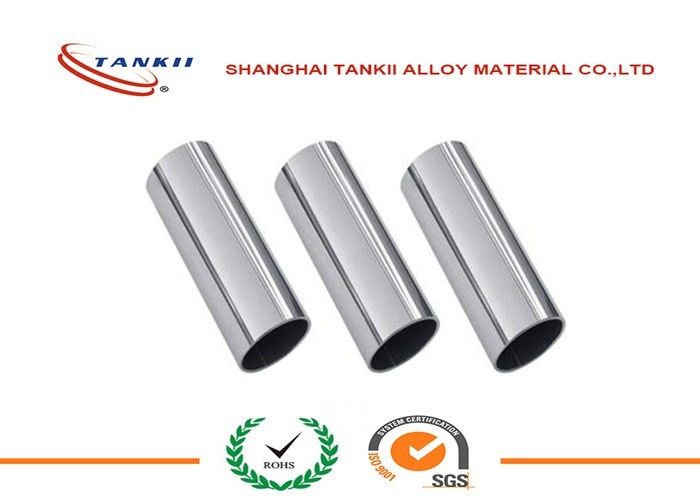

Description of monel k-500 seamless steel pipe tube:
| Production | seamless steel pipe |
| Standard | A106 A53 A213 A192 A179 A335 |
| Out Diameter | 1/2"~10",20mm~273mm |
| Wall Thickness | 1.0mm~12mm of Steel Pipe seamless |
| Material |
ASTM A106 GRB/ A53 GRB/ API 5L S304 S316 S310 |
| Length | 12m,11.8m,6m,5.8m,or as customers required |
| Surface treatment | varnish coating or polished |
| Technique | Seamless |
| Usage |
1. Low and middle pressure fluid transportation pipeline 2. Casing Tube 3. Boiler Pipe 4. Petroleunm and natural gas industry 5. Chemistry industry 6. Electric industry |
| Package |
1. Bundle packing. Steel Pipe seamless 2. Bevelled end or plain end or warnished as per buyer's required. 3. Marking: as per customer's requests. 4. Painting varnish coating on the pipe. Steel Pipe seamless 5. Plastic caps at ends. |
| Supply |
1. seamless steel pipe 2. ERW steel pipe 3. steel casing 4. tubing Steel Pipe seamless 5. hot-rolled steel pipe 6. spiral steel pipe 7. hot-galvanized steel pipe |
| Min Order Quantity | 10t |
| Payment terms | L/C, T/T, Western Union,etc. |
Characteristics of Monel K500 Pipe:
1 . Resistant to seawater and steam at high temperatures
2 . Excellent resistance to rapidly flowing brackish water or seawater
3 . Excellent resistance to stress corrosion cracking in most freshwaters
4 . Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
5 . Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and
concentrations, but is seldom the material of choice for these acids
6 . Excellent resistance to neutral and alkaline salt
7 . Resistance to chloride induced stress corrosion cracking
8 . Good mechanical properties from sub-zero temperatures up to 1020℃
9 . High resistance to alkalis
Monel K500 Application field:
Monel 500 alloy is a multi-purpose material in many industrial applications:
1 . Seamless water pipe in the power factory
2 . Sea-water exchanger and evaporator
3 . Sulfuric acid and hydrochloric acid environment
4 . Crude distillation
5 . Sea-water in the use of equipment and propeller shaft
6 . Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7 . Manufacturing hydrochloric acid equipment used in the production of pump and valve.
