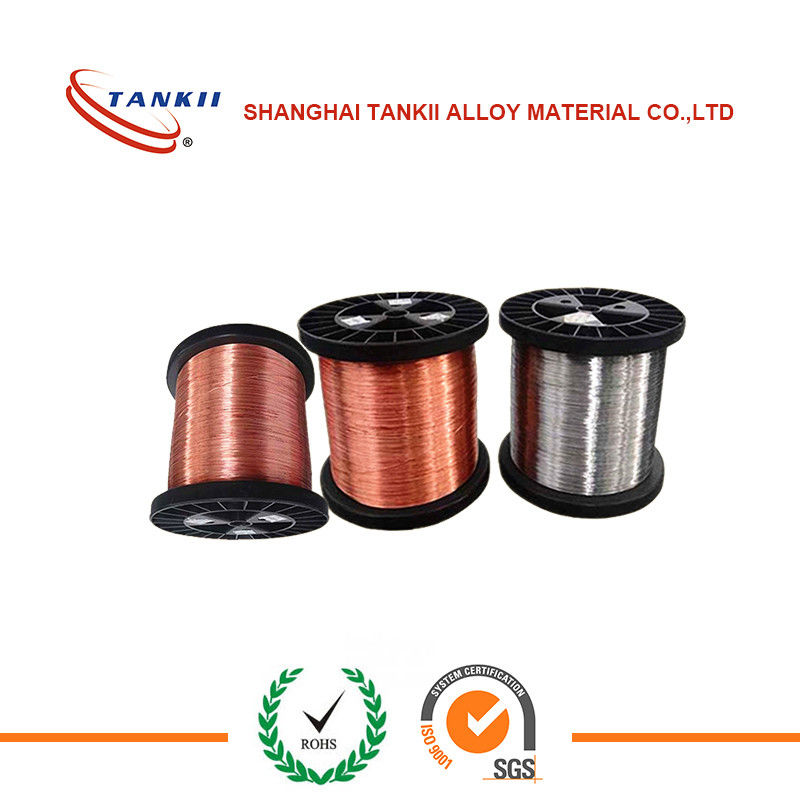

AWG24 26 28 30 32 34 Nichrome 80 Wire Nichrome Heater Wire

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr80/20.

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: 20, 000kg/month

Payment Terms: L/C, T/T, Western Union

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Description
AWG24 26 28 30 32 34 Nichrome 80 Wire Nichrome Heater Wire

AWG24 26 28 30 32 34 Nichrome 80 Wire Nichrome Heater Wire



NiCr80/20



Nichrome, a non magnetic alloy of nickel and chromium, is commonly used to make resistance wire.

Because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.



Nichrome wire is commonly used in ceramics as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used because of its ability to withstand the high temperatures that occur when a clay work is fired in a kiln.



Features of manganic resistance heating wire:

Electric wire is with the high quality alchrome and

nicklechrome alloy which produced by our own company, adopts computer control furnace silk power, winding shaping by the highspeed automatic winding machine. The feature of the product is have withstanding high temperatures, fast temperature rise, long service life, stable resistivity, small power deviation, uniform screw pitch after drawing, and clean surface, widely used in small electric furnace, muffle furnace, heating air-conditioning equipment, all kinds of oven, electrical heated tube, and home appliances ect. Can design and produce all kinds non-standard electric stove strip by customer’s request.



Main Property of nichrome heating wire



Alloy Nomenclature Performance Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Max. continuous service temp. of element(ºC) 1200 1250 1150 1100 1100
Resistivity at 20ºC (μΩ·m) 1.09 1.18 1.12 1.0 1.04
Density(g/cm3) 8.40 8.10 8.20 7.90 7.90
Thermal conductivity (KJ/m·h·ºC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α×10-6/ºC) 18.0 17.0 17.0 19.0 19.0
Melting point approx.( ºC) 1400 1380 1390 1390 1390
Elongation at rupture(%) >20 >20 >20 >20 >20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic Weak magnetic Weak magnetic

Weak magnetic





Main Advantage and Application



1. Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.



2.Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.



Size details



Product name Size range
Cold drawing wire Diameter 0.03-7.5mm
Hot-rolled wire rod Diameter 8.0-12mm
Ribbon Thickness 0.05-0.35mm
Width 0.5.0-3.5mm
Cold rolled strip Thickness 0.5-2.5mm
Width 5.0-40mm
hot rolled strip Thickness 4-6mm
Width 15-40mm
