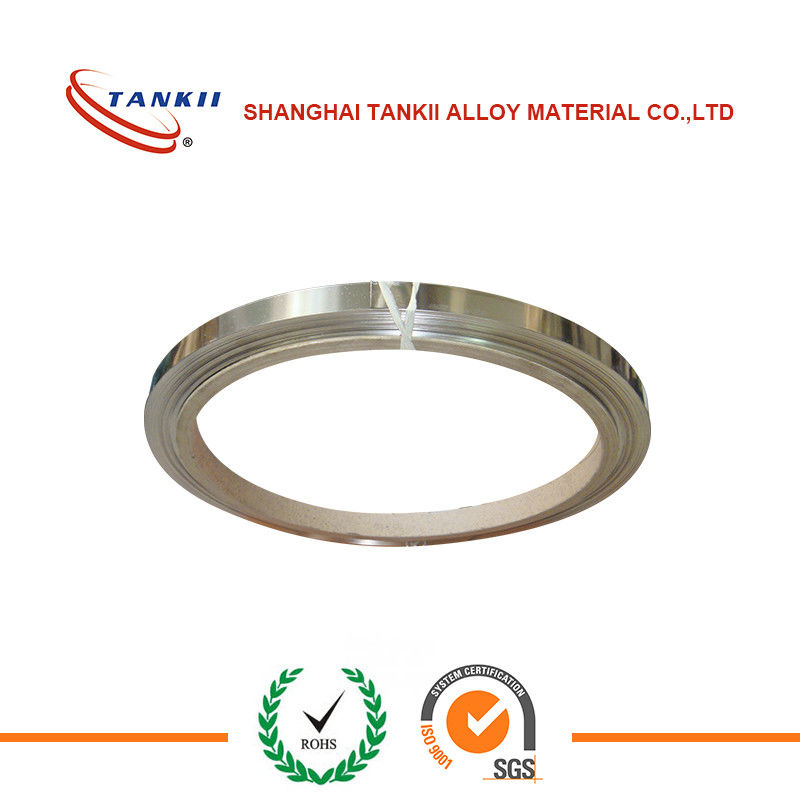

Cr15ni60 Nicrc Nichrome Resistance Wire Strip Used For Resistors

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr60/15

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: spool+plastic bag+carton+pallet for resistance wires

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome resistance wire

Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Description
Cr15ni60 Nicrc Nichrome Resistance Wire Strip Used For Resistors

Cr15ni60 Nicrc Nichrome Resistance Wire Strip Used For Resistors



NiCr60/15



Specifications



1. Pass: ISO9001 certification
2. fine after-sale services
3. small order accepted
4. samples available
5. short delivery time



1. Introduction to products

Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.



2. Products and services

1.Pass: ISO9001 certification;
2.fine after-sale services;
3.small order accepted;
4.samples available;



3.Application

Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.



4.size

wires:0.018-10mm                   Ribbons:0.05*0.2-2.0*6.0mm

Strips:0.5*5.0-5.0*250mm       Bars:D10-100mm



Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.08

0.02

0.015

0.60

0.75~1.60

15.0-18.0

55-61

Max 0.50

Bal

-



Mechanical Properties

Max Continuous Service Temperature:

Resisivity ( 20℃)/Ω·m::



Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1150℃

1.12 +/-0.05 (Dia: <0.5mm)

1.15+/-0.05  (Dia: ≥0.50 mm)

8.2 g/cm3

45.2 KJ/m·h·℃

17×10-6/℃ (20℃~1000℃)

1390℃

Min 20%

Austenite

nonmagnetic



Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.011

1.024

1.038

1.052

1.064

1.069



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

1.073

1.0278

1.088

1.095

1.109

-

-





Our Nichrome alloy are in the form of wire, ribbon, strip, coil.



  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate



Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled



 Our major product line:

 Electric resistance alloy materials in wire, strip, tube, and bar form.

Furnace products and heating systems

  • Metalic heating elements
  • Heating modules: Prefabricated heating modules with electric heating elements and fiber or dense
  • ceramic insulation.
  • Air heating cassettes: Cassettes with metallic heating elements for heating of air or gases
  • Diffusion Cassettes: Diffusion cassettes for the production of crystalline silicon wafers for solar
  • cells and
  • semiconductors
  • Furnace tubes: Extruded tubes made from FeCrAl alloys for gas-heated or electrically heated
  • furnaces.
  • Construction materials: Wire, strip, tube and bar for manufacturing of furnace furniture and other
  • furnace
  • accessories
  • Furnace rollers: Furnace rollers for heat treatment furnaces.
  • Resistance heating wire and strip.: Resistance heating wire and strip for manufacturing of electric
  •  heating
  •  elements.
  • Technical Ceramics: Ceramic supporting materials for electrothermal components.
  • Thermocouple wire and strip: Wire, ribbon and strip for thermocouples, extension leads and
  • compensating cables.
  • Ceramic engineering material: Ceramic engineering material for high-temperature and chemical
  • environments.
  • Electric heating systems: Electric heating systems for aluminium and steel production
