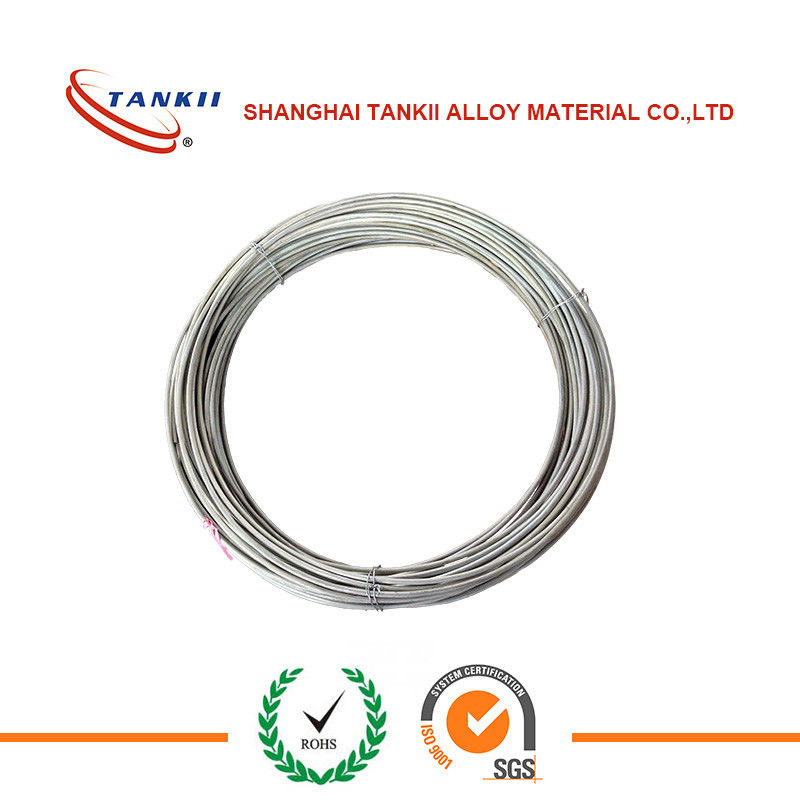

Industrial Furnace 0Cr21Al6Nb Fecral Alloy Resistance Heater Wire

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr21Al6Nb

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Description
Industrial Furnace 0Cr21Al6Nb Fecral Alloy Resistance Heater Wire



Industrial Furnace 0Cr21Al6Nb Fecral Alloy Resistance Heater Wire



0Cr21Al6Nb

The FeCrAl 0Cr21Al6Nb Electric Heating Wire Mesh with the characteristics of high resistance, low temperature coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray devic



2.Characteristics & Properties:

 1) The highest working temperature up to 1250 degree.
2) Longer working life,and better technical properties
3) Higher surface load.
4) Higher resistivity.
5) Lower density.
6) Free from oxide debris



0Cr21Al6Nb

Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.05

0.025

0.020

0.50

≤0.6

21.0-23.0

≤0.60

5.0-7.0

Balance

-





Mechanical Properties

Max Continuous Service Temperature:

Resisivity 20℃:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1350℃

1.45+/-0.07ohm mm2/m

7.1g/cm3

46.1 KJ/m·h·℃

16.0×10-6/℃ (20℃~1000℃)

1510℃

Min 12%

Ferrite

magnetic





Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.000

0.997

0.996

0.994

0.991

0.990

0.990



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

0.990

0.990

0.990

0.990

0.990

0.990

0.990
