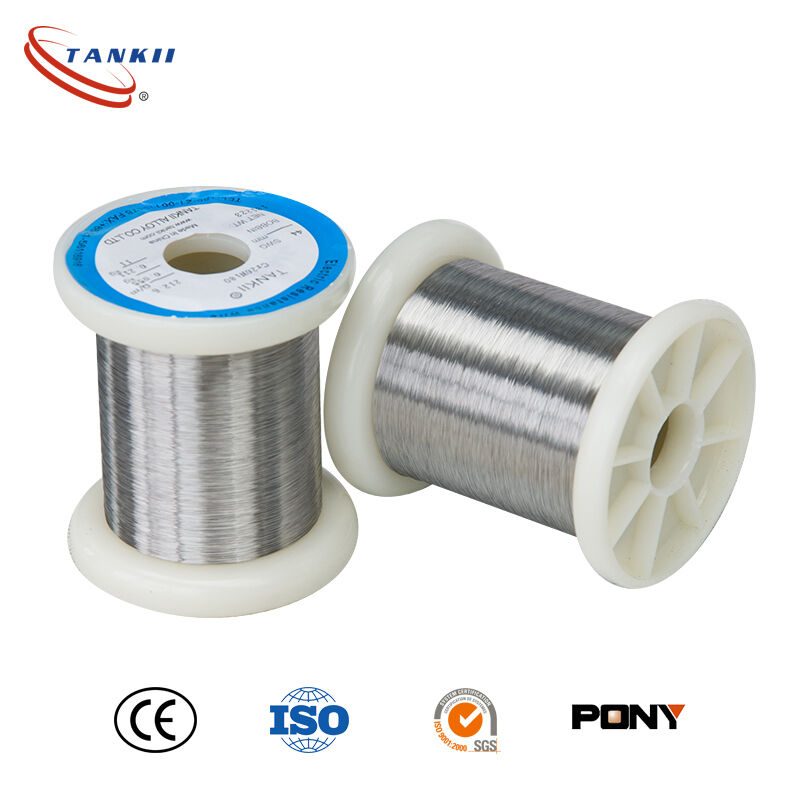

N6 Pure Nickel Wire with High Corrosion Resistance and 462 MPa Tensile Strength for Battery Components

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: N6

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              N6 Pure Nickel Wire for battery components, Nickel 200 Wire high corrosion resistance, Nickel alloy wire for electronic applications


Material:	Pure Nickel Wire	Grade:	N6
Purity:	Ni>99.6%	Diameter:	0.025-8.0mm
Density:	8.89g/cm3	Melting Point:	1435-1446ºC
Tensile Strength:	462 Mpa	Elongation:	47%

Material:	Pure Nickel Wire
Grade:	N6
Purity:	Ni>99.6%
Diameter:	0.025-8.0mm
Density:	8.89g/cm3
Melting Point:	1435-1446ºC
Tensile Strength:	462 Mpa
Elongation:	47%

Description

N6 Pure Nickel Wire with High Corrosion Resistance and 462 MPa Tensile Strength for Battery Components

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Chemical composition

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080
