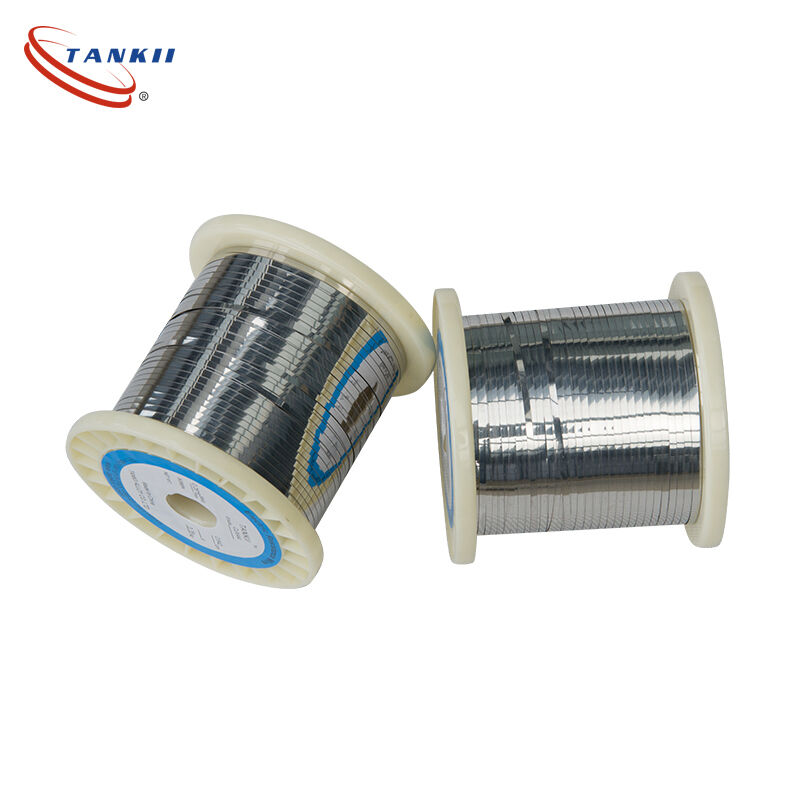

FeCrAl 0Cr25Al5 Flat Wire Iron Chromium Aluminum Alloy Ribbon with High Temperature Stability Oxidation Resistance and Long Service Life

Name: FeCrAl 0Cr25Al5 Flat Wire Iron Chromium Aluminum Alloy Ribbon with High Temperature Stability Oxidation Resistance and Long Service Life
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: FeCrAl255
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: FeCrAl255

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: negotiable

Packaging Details: spool

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              FeCrAl 0Cr25Al5 flat wire, iron chromium aluminum alloy ribbon, FeCrAl alloy flat wire manufacturer


Description

FeCrAl 0Cr25Al5 Flat Wire Iron Chromium Aluminum Alloy Ribbon with High Temperature Stability Oxidation Resistance and Long Service Life

Product Description

FeCrAl 0Cr25Al5 Flat Wire Iron Chromium Aluminum Alloy Ribbon for High Temperature Heating Elements

FeCrAl 0Cr25Al5 flat wire is manufactured from iron chromium aluminum resistance alloy, offering excellent oxidation resistance, high temperature stability and long service life. The alloy forms a protective aluminum oxide layer during operation, improving durability in high temperature environments.

Compared with nickel chromium resistance alloys, FeCrAl materials provide higher operating temperature capability and excellent resistance to oxidation, making them suitable for industrial heating applications requiring reliable long-term performance.

The flat wire design provides a larger surface area and efficient heat transfer performance. Customized thickness, width, surface condition and packaging are available according to customer requirements.

FeCrAl 0Cr25Al5 flat wire is widely used in industrial furnaces, heating elements, heat treatment equipment, kilns and other high temperature thermal processing systems.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06	0.025	0.025	0.70	Max 0.60	23.0~26.0	Max 0.60	4.5~6.5	Bal.	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
500	700	23

Typical Physical properties

Density (g/cm3)	7.10
Electrical resistivity at 20ºC(ohm mm2/m)	1.42
Conductivity coefficient at 20ºC (WmK)	13

Coefficient of thermal expansion

Temperature	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	15

Specific heat capacity

Temperature	20ºC
J/gK	0.46

Melting point (ºC)	1500
Max continuous operating temperature in air (ºC)	1250
Magnetic properties	magnetic
