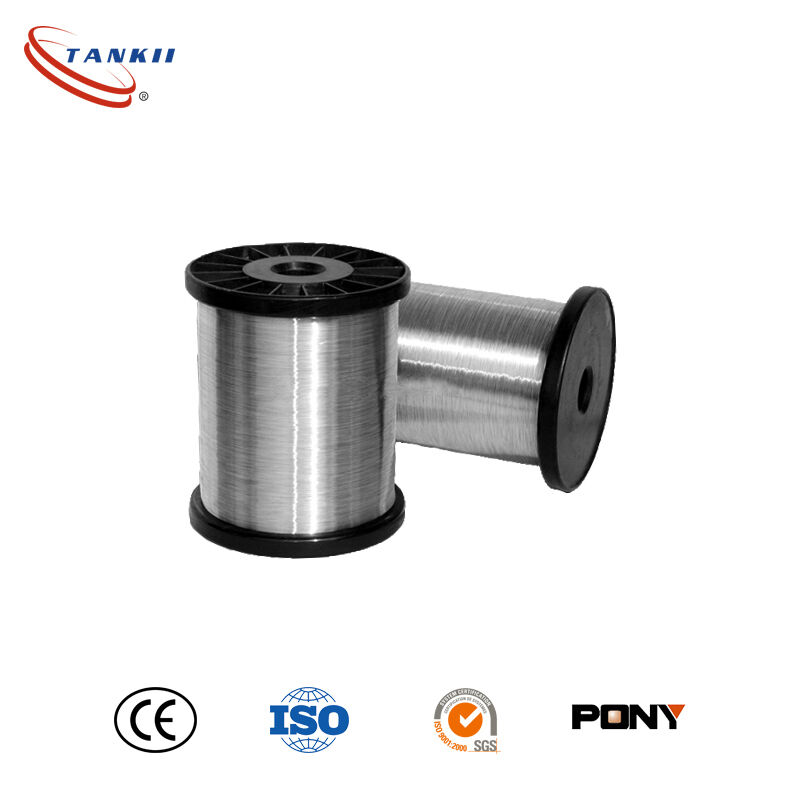

NiCr 80/20 Ultra Fine Micro Resistance Heating Wire 0.01mm

Name: NiCr 80/20 Ultra Fine Micro Resistance Heating Wire 0.01mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 300.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 1kg

Price: negotiation

Packaging Details: Cardboard packaging+wooden box

Delivery Time: 7-20days

Payment Terms: T/T,L/C

Supply Ability: 500kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Features:	Ultra Fine Diameter, Stable Resistance, Excellent Oxidation Resistance, High Temperature Resistance	Product Name:	NiCr 80/20 Ultra Fine Micro Resistance Heating Wire
Material:	Nickel Chromium Alloy	Grade:	NiCr 80/20
Wire Diameter:	0.009-0.10 Mm	Nickel Content:	Approx. 80%
Chromium Content:	Approx. 20%	Resistivity:	1.09 Ω·mm²/m
Maximum Operating Temperature:	Up To 1200°C	Applications:	Micro Heating Elements, Medical Devices, Electronic Components, Precision Instruments, Miniature Heaters, Sensors

Features:	Ultra Fine Diameter, Stable Resistance, Excellent Oxidation Resistance, High Temperature Resistance
Product Name:	NiCr 80/20 Ultra Fine Micro Resistance Heating Wire
Material:	Nickel Chromium Alloy
Grade:	NiCr 80/20
Wire Diameter:	0.009-0.10 Mm
Nickel Content:	Approx. 80%
Chromium Content:	Approx. 20%
Resistivity:	1.09 Ω·mm²/m
Maximum Operating Temperature:	Up To 1200°C
Applications:	Micro Heating Elements, Medical Devices, Electronic Components, Precision Instruments, Miniature Heaters, Sensors

Description

NiCr 80/20 Ultra Fine Micro Resistance Heating Wire 0.01mm

Product Description

Ultra Fine Ni80Cr20 Wire for Precision Resistance and Micro Heating Solutions

Ni80Cr20 ultra fine wire is a high-performance nickel chromium resistance alloy featuring excellent oxidation resistance, stable electrical properties and outstanding high temperature performance. With diameters available down to 0.009 mm, the wire is suitable for precision resistance components, micro heating elements, sensors, medical devices and aerospace electronic applications.

The material provides stable resistance values and reliable performance in demanding environments. Customized diameters, spool sizes and packaging solutions are available according to customer requirements.

Mainly used in heater, heating element and resistor, etc.

NiCr 80/20, NiCr 70/30, NiCr 60/15, NiCr 35/20

Chemical Composition and Propertes:

Propertes/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Bal.	Bal.	Bal.
Max Working Temperature(ºC)		1200	1250	1150	1100	1100
Resistivity at 20ºC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density(g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m· h· ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion(α × 10-6/ºC)		18	17	17	19	19
Melting Point(ºC)		1400	1380	1390	1390	1390
Elongation(%)		> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

CuNi Alloys Grade	Electrical resistivity (20degreeΩ mm² /m)	temperature coefficient of resistance (10^6/degree)	Density g/mm²	Max. temperature (degree)	Melting point (degree)
CuNi1	0.03	< 1000	8.9	200	1085
CuNi2	0.05	< 1200	8.9	200	1090
CuNi6	0.10	< 600	8.9	220	1095
CuNi8	0.12	< 570	8.9	250	1097
CuNi10	0.15	< 500	8.9	250	1100
CuNi14	0.20	< 380	8.9	300	1115
CuNi19	0.25	< 250	8.9	300	1135
CuNi22	0.30	< 160	8.9	300	1150
CuNi30	0.35	< 100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	± 40	8.9	400	1280
CuNi44	0.50	< -6	8.9	400	1280
