Nickel Alloy corrosion resistant metal material suitable for high temperature applications and chemical environments

Name: Nickel Alloy corrosion resistant metal material suitable for high temperature applications and chemical environments
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni200
Price: 232.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: Ni200

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiable

Delivery Time: 10-20 days

Payment Terms: T/T

Supply Ability: 300t/months

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

Nickel Alloy corrosion resistant metal material suitable for high temperature applications and chemical environments

Basic Info.

Model NO.

Ni200/201

Purity

>99.5%

Alloy

Non-alloy

Type

Nickel Strip

Powder

Not Powder

sample

free

Width

200mm

Surface

Bright

Condition

Soft 1/4H 1/2H Hard

Elongation

35%

Density

8.89g/cm3

melting point

1440C

Name

N02201

Shape

Sheet

Transport Package

Strand Packing

Specification

0.02*100mm

Trademark

TANKII

Origin

Shanghai

HS Code

7506100000

Production Capacity

500tons/Year

Product Description

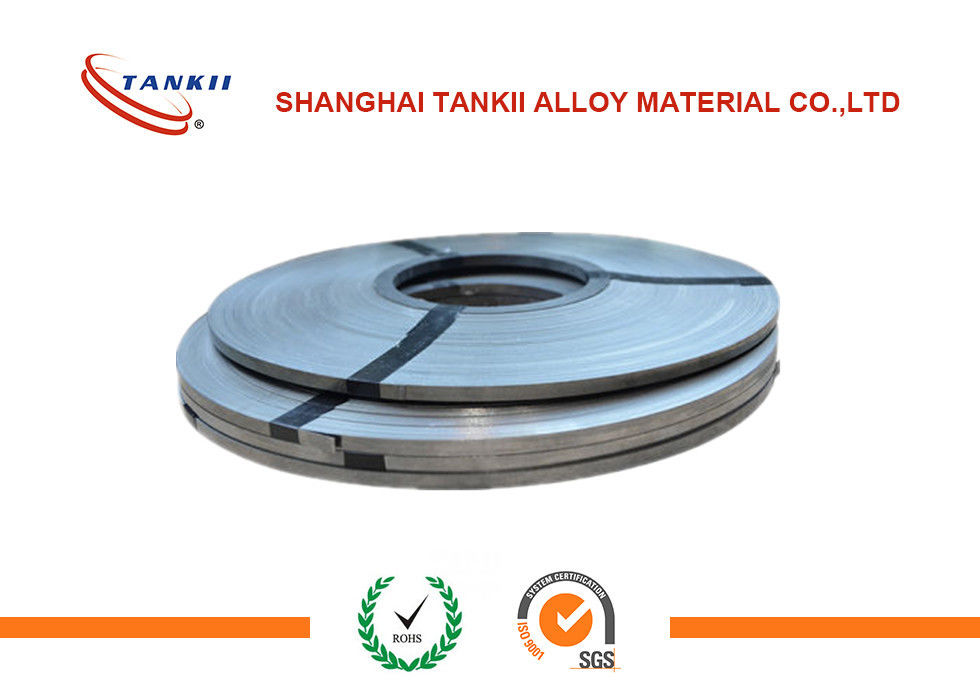

Factory Price Pure Nickel Strip Ni200/201 0.5*100mm

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Nickel foil and nickel strip for battery

Pure nickel grade: Ni200,Ni201, N4,N6

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Forms

Coil - Strip, Foil, Ribbon
Wire - Profile, Round, Flat, Square
rod, bar, forgings, plate, sheet

Chemical composition

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Foil Capabilities

Grade	Pure Nickel Strip 99.6% / 99.9%
Thickness	0.002 to 2.50 mm
Tolerances	+/- 5% (special tolerances is available)
Width	Up to 350mm wide
Coil size	Up to 80 kg without welds
Temper Ranges	Annealed to Full Hard

Nickel Foil Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080
