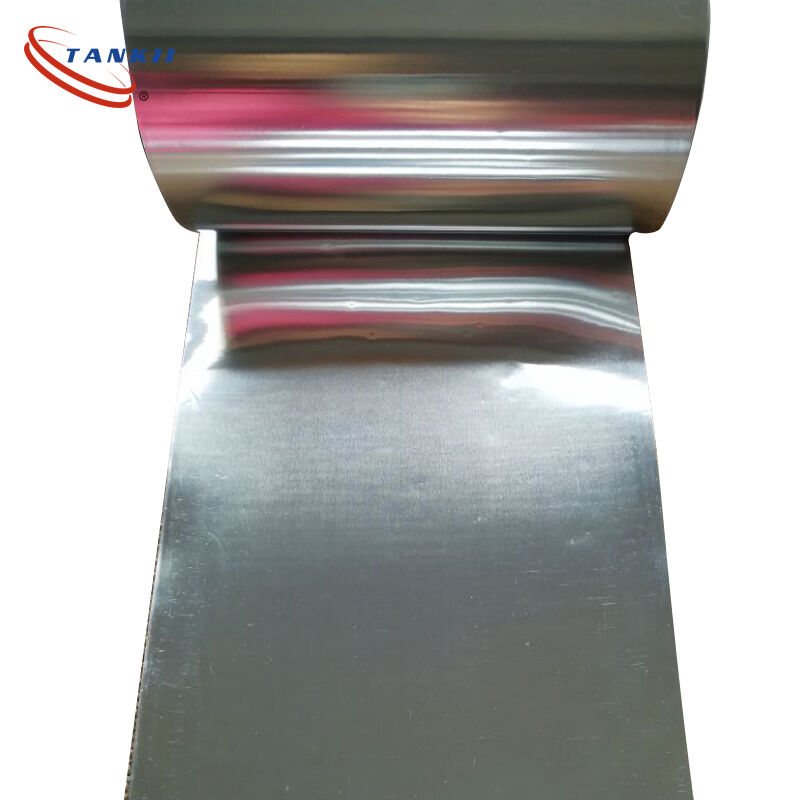

0.01-0.3mm Thickness 99.9% Purity Pure Nickel Foil for MLCC & EV Battery Tab Applications

Name: 0.01-0.3mm Thickness 99.9% Purity Pure Nickel Foil for MLCC & EV Battery Tab Applications
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni200,Ni201
Price: 232.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: Ni200,Ni201

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: negotiable

Packaging Details: spool

Delivery Time: 15-20days

Payment Terms: T/T

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              Pure Nickel Foil Roll for MLCC, Nickel Foil for EV Battery Tab, 0.3mm Nickel Alloy Foil


Description

0.01-0.3mm Thickness 99.9% Purity Pure Nickel Foil for MLCC & EV Battery Tab Applications

Pure Nickel Foil For The Electronic Industry

General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166

0.01-0.3mm Thickness 99.9% Purity Pure Nickel Foil for MLCC & EV Battery Tab Applications 0
