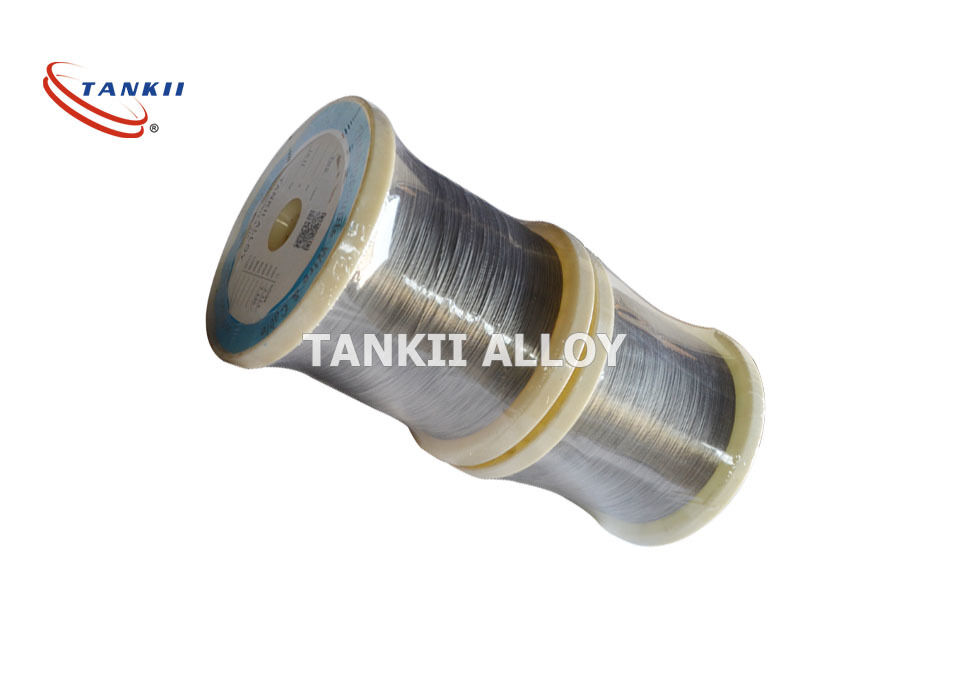

ickel Chromium Wire Heat Resistance Alloy Wire Ni80cr20 (Nicr80/20)

Name: ickel Chromium Wire Heat Resistance Alloy Wire Ni80cr20 (Nicr80/20)
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: N200 N201
Price: 22 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO,ROHS

Model Number: N200 N201

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: 22USD/Kg

Packaging Details: in roll, wooden case outside

Delivery Time: 10-15days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100,000/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Nickel Chromium resistance alloy wire, Ni80Cr20 heat resistant wire, Nickel alloy wire with warranty


Error Message:	Forwarding Failure	Product Name:	Privoxy 3.0.33
Action Required:	Try Again To Check If It's A Temporary Problem Or Verify Forwarding Settings	Port:	8118
Version:	3.0.33	Request URL:	Http://mao.ecer.com/test/index.php?r=products/raw&testdomain=alloy-wires.com&testlang=m&productId=53449734
Failure Reason:	Privoxy Was Unable To Socks5t-forward The Request	Failure Description:	SOCKS5 Negotiation Read Failed

Error Message:	Forwarding Failure
Product Name:	Privoxy 3.0.33
Action Required:	Try Again To Check If It's A Temporary Problem Or Verify Forwarding Settings
Port:	8118
Version:	3.0.33
Request URL:	Http://mao.ecer.com/test/index.php?r=products/raw&testdomain=alloy-wires.com&testlang=m&productId=53449734
Failure Reason:	Privoxy Was Unable To Socks5t-forward The Request
Failure Description:	SOCKS5 Negotiation Read Failed

Description

ickel Chromium Wire Heat Resistance Alloy Wire Ni80cr20 (Nicr80/20)

Description

Chemical Composition and Propertes:
Propertes/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0
	Fe	≤ 1.0	≤ 1.0	Bal.
Max Working Temperature(ºC)		1200	1250	1150
Resistivity at 20ºC(μ Ω · m)		1.09	1.18	1.12
Density(g/cm3)		8.4	8.1	8.2
Thermal Conductivity(KJ/m· h· ºC)		60.3	45.2	45.2
Coefficient of Thermal Expansion(α × 10-6/ºC)		18	17	17
Melting Point(ºC)		1400	1380	1390
Elongation(%)		> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic

Propertes/Grade		NiCr 35/20	NiCr 30/20	Karma	Evanohm
Main Chemical Composition(%)	Ni	34.0-37.0	30.0-34.0	Bal	Bal
	Cr	18.0-21.0	18.0-21.0	19.0-21.5	19.0-21.5
	Fe	Bal.	Bal.	2.0-3.0	-
Max Working Temperature(ºC)		1100	1100	300	1400
Resistivity at 20ºC (μ Ω · m)		1.04	1.04	1.33	1.33
Density(g/cm3)		7.9	7.9	8.1	8.1
Thermal Conductivity (KJ/m· h· ºC)		43.8	43.8	46	46
Coefficient of Thermal Expansion(α × 10-6/ºC)		19	19	-	-
Melting Point(ºC)		1390	1390	1400	1400
Elongation(%)		> 20	> 20	10-20	10-20
Micrographic Structure		austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

Chemical Composition	Nickel 80%, Chrome 20%
Condition	Bright/Acid white/Oxidied Color
Diameter	0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Round Wire	Diameter 0.018mm~10mm
Nichrome Ribbon	Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip	Width 450mm~1mm, thickness 0.001m~7mm
Diameter	1.5mm-8mm packing in coil, 8~60mm in rod
Grade	Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage	The metallurgical structure of nichrome confers them a very good plasticity when cold.
Characteristics	Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coilforming ability; Uniform and beautiful surface condition without spots.
Usage	Resistance heating elements;Material in metallurgy, Household appliances;Mechanical manufacturing and

Material Specifications

Performance material	Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
Composition Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
Composition Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature ºC	1300	1200	1250	1150	1100	1100
Melting point ºC	1400	1400	1380	1390	1390	1390
Density g/cm³	8.7	8.4	8.1	8.2	7.9	7.9
